Transmission Control Module Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

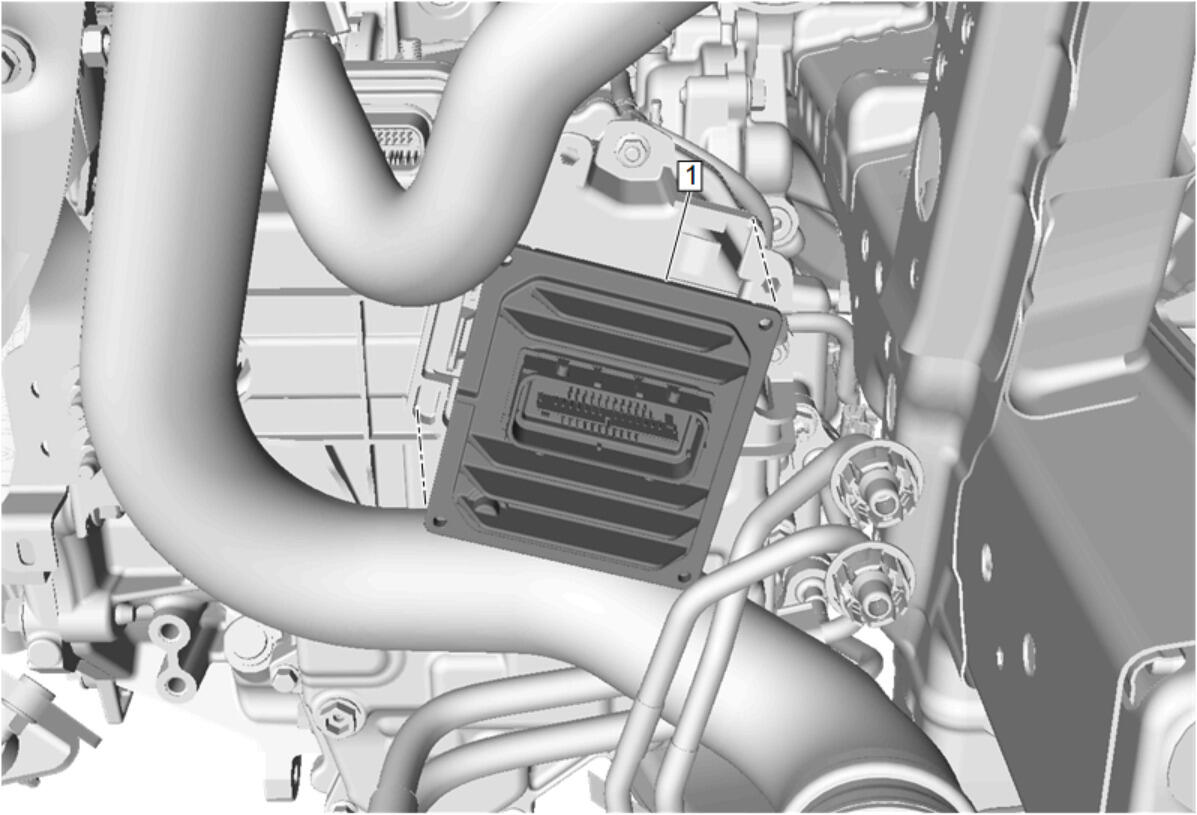

Callout	Component Name
1	Transmission Control Module Procedure Disconnect the electrical connector. Remove the module from the module bracket by releasing the retaining tabs. Program the transmission control module, if replaced. Control Module References Reprogram the transmission. Solenoid Valve Characterization Reprogramming NOTE: Some components not shown for graphic clarity.

Callout

Component Name

Transmission Control Module

Procedure

Disconnect the electrical connector.
Remove the module from the module bracket by releasing the retaining tabs.
Program the transmission control module, if replaced. Control Module References
Reprogram the transmission. Solenoid Valve Characterization Reprogramming

NOTE:

Some components not shown for graphic clarity.
