Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Without draining the coolant and without disconnecting the hoses, position aside the radiator surge tank. - Radiator Surge Tank Replacement (LTG)
- Intake Manifold Cover Replacement - Remove

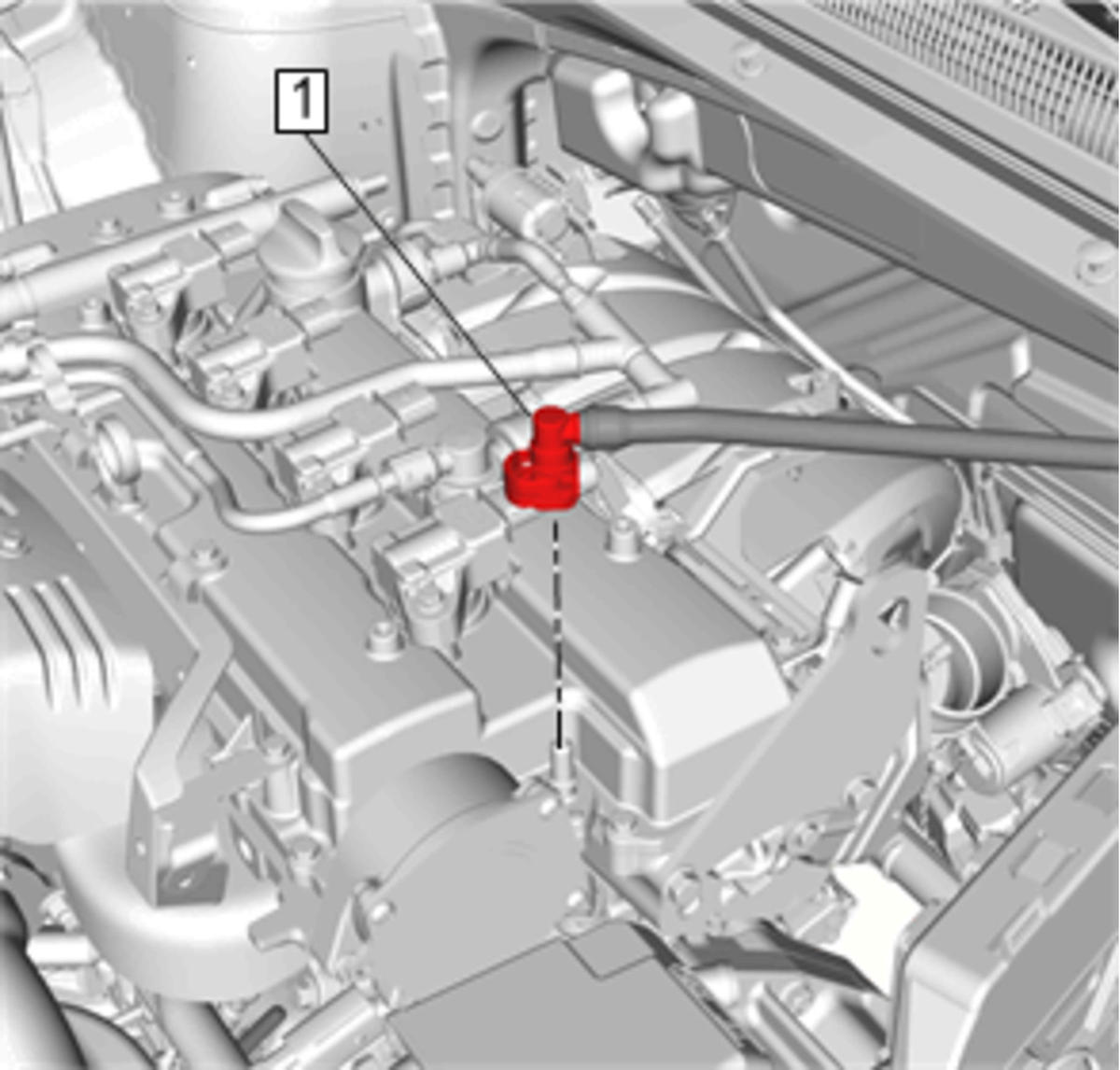

Power Brake Booster Vacuum Pipe Fitting (1) @Power Brake Booster Vacuum Sensor - Disconnect
Power Brake Booster Vacuum Pipe Fitting (1) @Vacuum Pump - Disconnect
- Power Brake Booster Vacuum Pipe - Remove
