Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Power Brake Booster Vacuum Pipe - Install

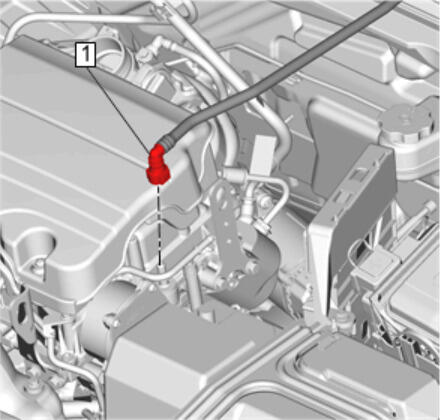

Power Brake Booster Vacuum Pipe Fitting (1) @Vacuum Pump - Connect
Power Brake Booster Vacuum Pipe Fitting (1) @Power Brake Booster Vacuum Sensor - Connect
Reposition the charge air cooler outlet air tube.
- Install the charge air cooler outlet air tube fastener (1) and retainer spring (2). - Charge Air Cooler Outlet Air Tube Replacement
- Radiator Surge Tank Replacement (LFV) - Install
