Receiver and Dehydrator Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

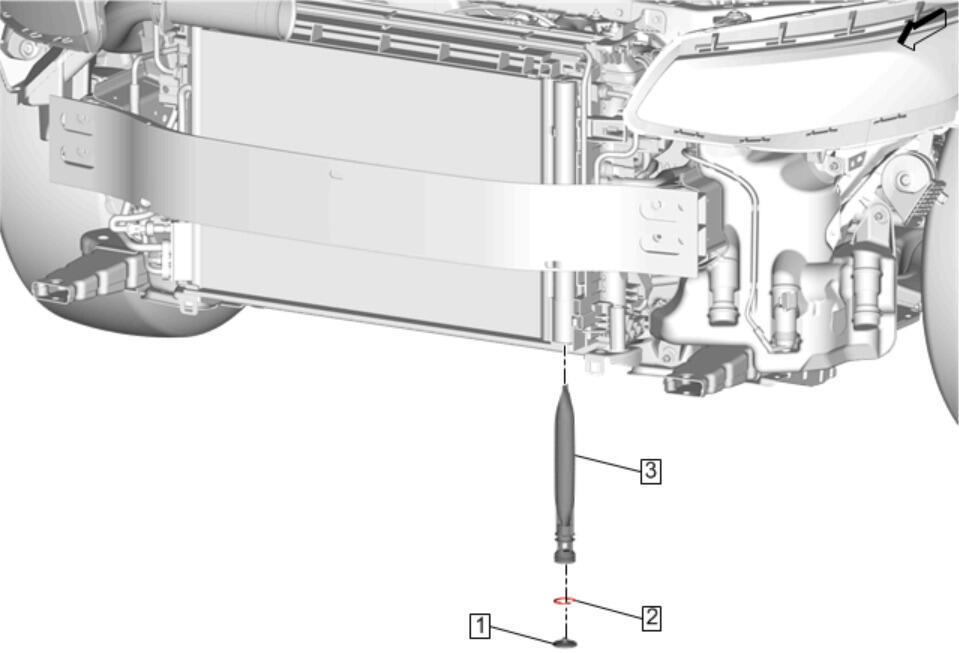

GM4322525Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Radiator Air Lower Baffle and Deflector Replacement
  2. Recover the refrigerant. Refrigerant Recovery and Recharging (R-1234yf)
1 Air Conditioning Receiver and Dehydrator Cover
2 Air Conditioning Condenser Seal Retainer
3 Air Conditioning Refrigerant Desiccant

Procedure

  1. Recharge the refrigerant. Refrigerant Recovery and Recharging (R-1234yf)
  2. Inspect for refrigerant leaks. Leak Testing (R-1234yf)
