Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

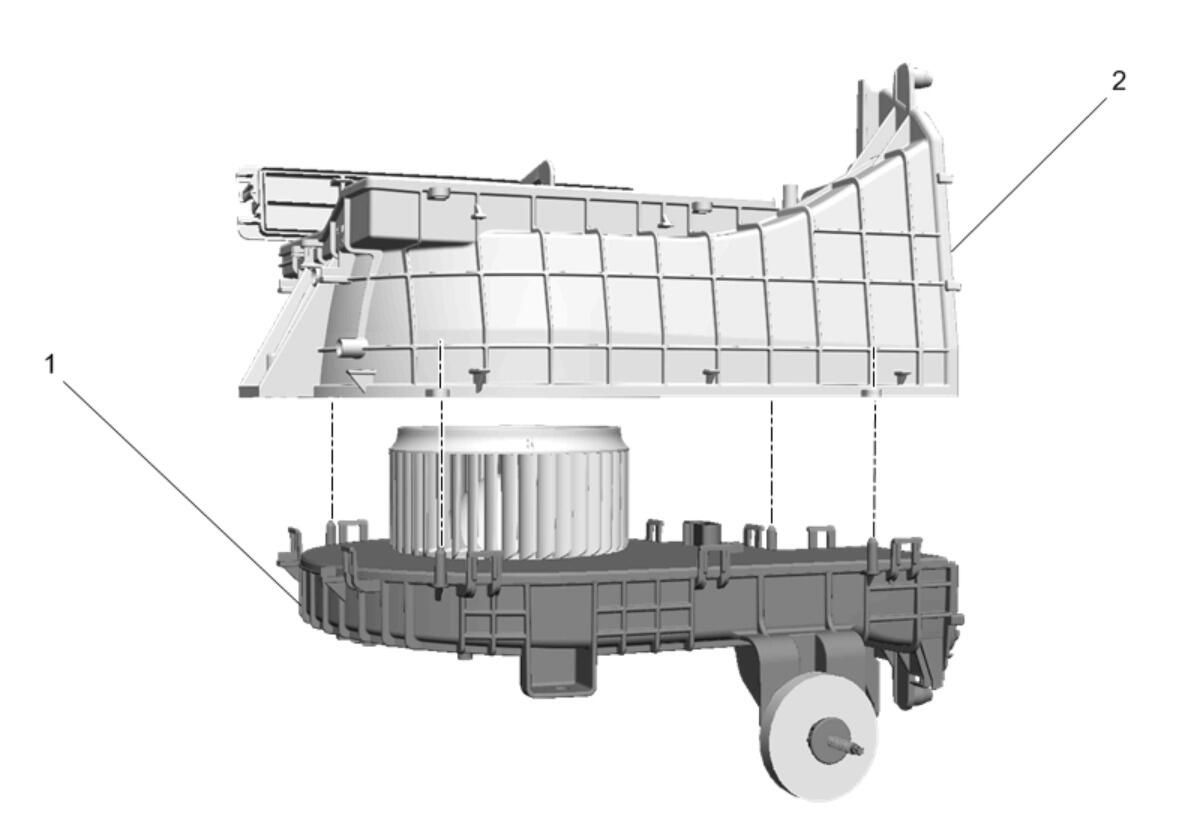

Install the heater and air conditioning evaporator and blower lower case (1) onto the heater and air conditioning evaporator and blower upper case (2).
Courtesy of GENERAL MOTORS COMPANY

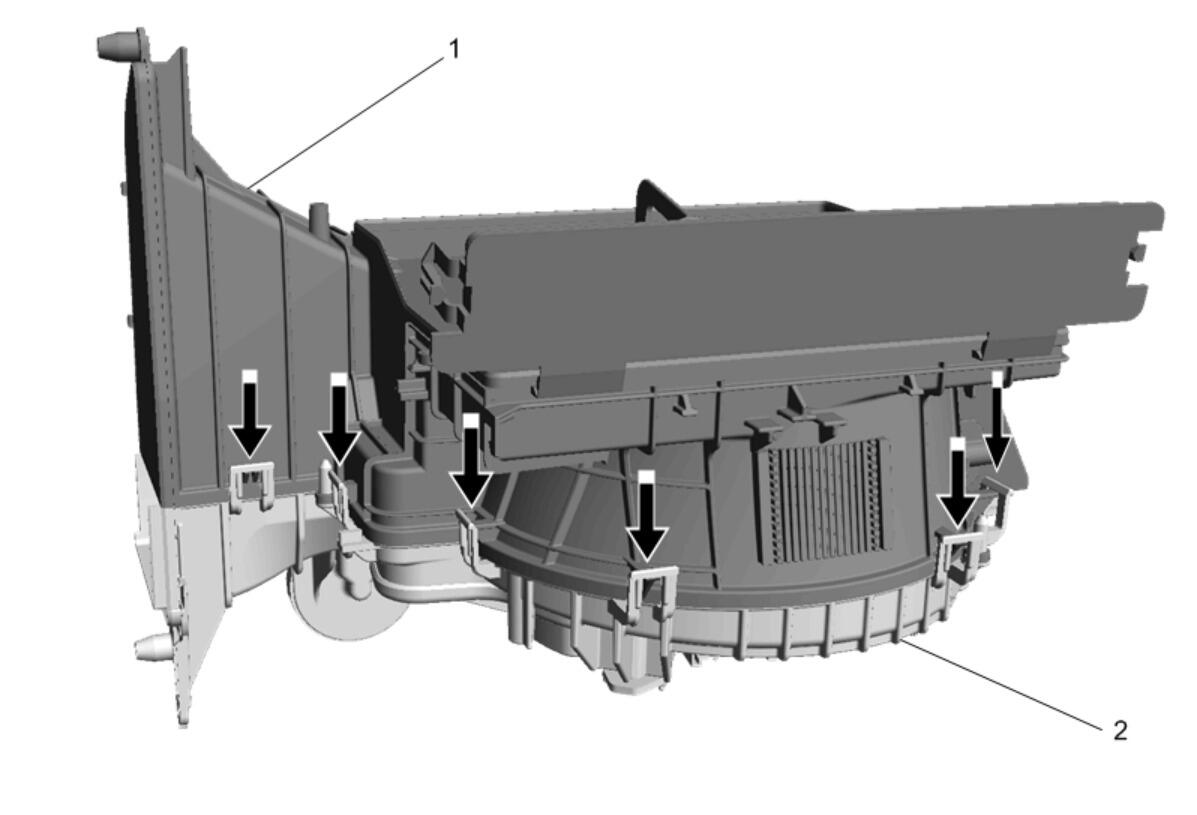

Latch the heater and air conditioning evaporator and blower upper case (1) onto the heater and air conditioning evaporator and blower lower case (2) indicated by the arrows.
Courtesy of GENERAL MOTORS COMPANY

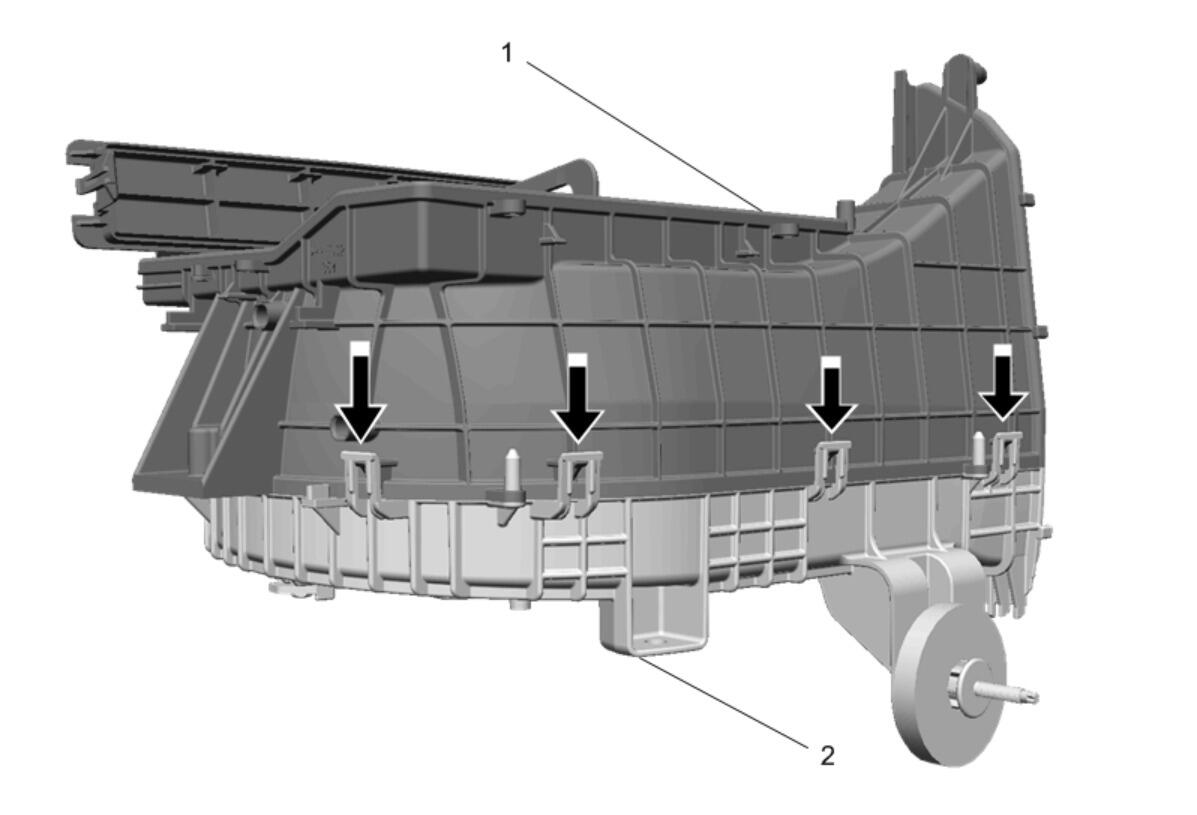

Latch the heater and air conditioning evaporator and blower upper case (1) onto the heater and air conditioning evaporator and blower lower case (2) indicated by the arrows.
Courtesy of GENERAL MOTORS COMPANY

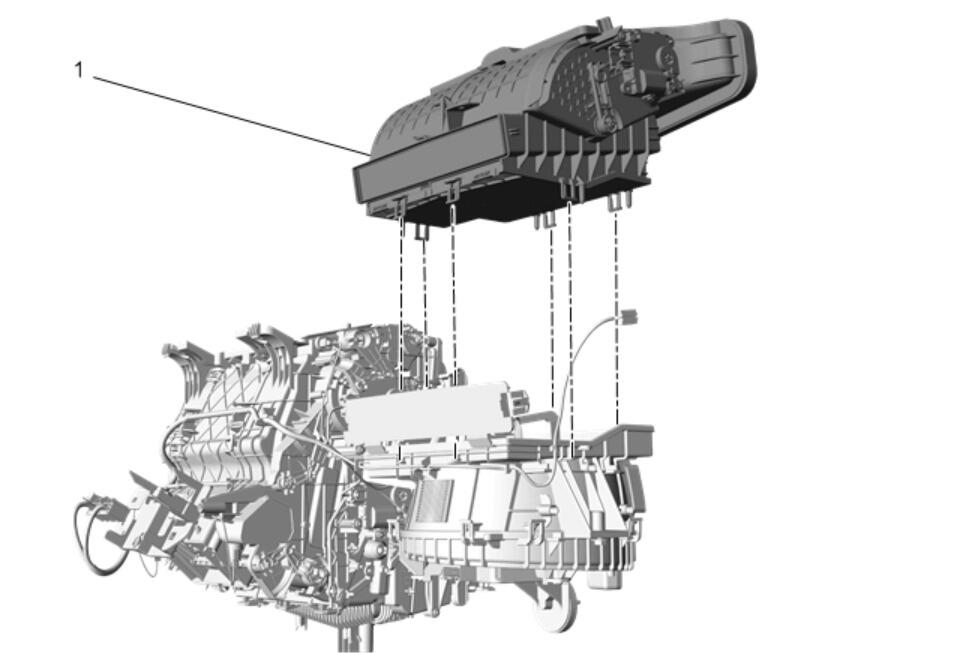

Air Inlet Housing (1) - Install - Air Inlet Housing Replacement
Courtesy of GENERAL MOTORS COMPANY

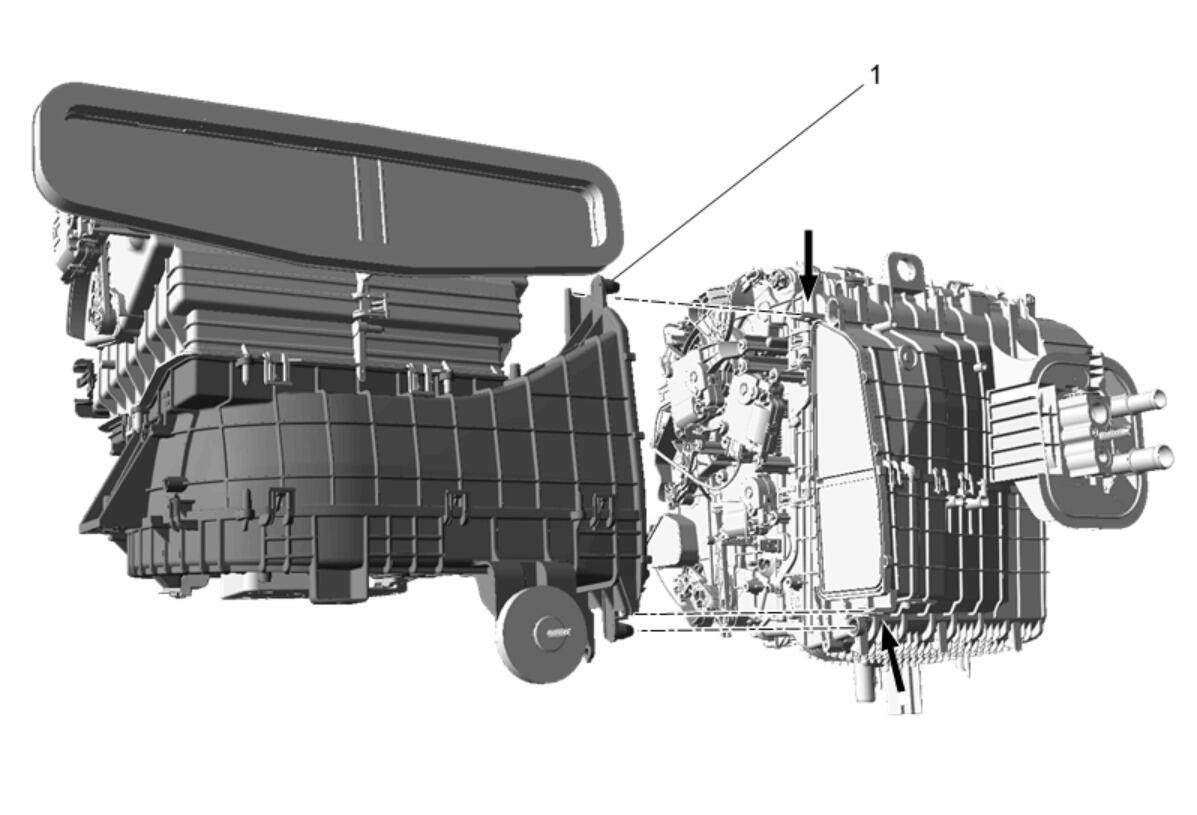

Latch the heater and air conditioning evaporator and blower case (1) onto the air conditioning evaporator case indicated by the arrows.
Air Conditioning Wiring Harness - Connect as necessary
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

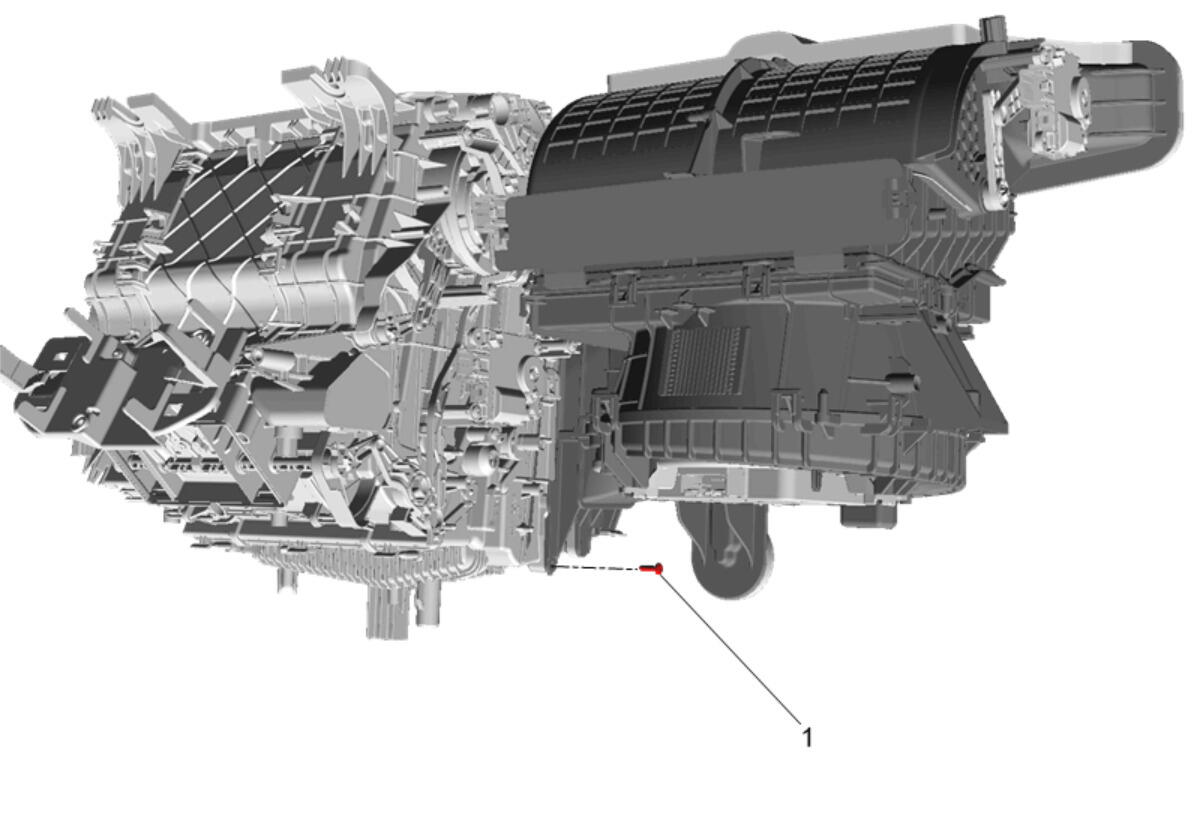

Heater and Air Conditioning Evaporator and Blower Module Screw (2) - Install and tighten - Heater and Air Conditioning Evaporator and Blower Upper Case Replacement
Courtesy of GENERAL MOTORS COMPANY

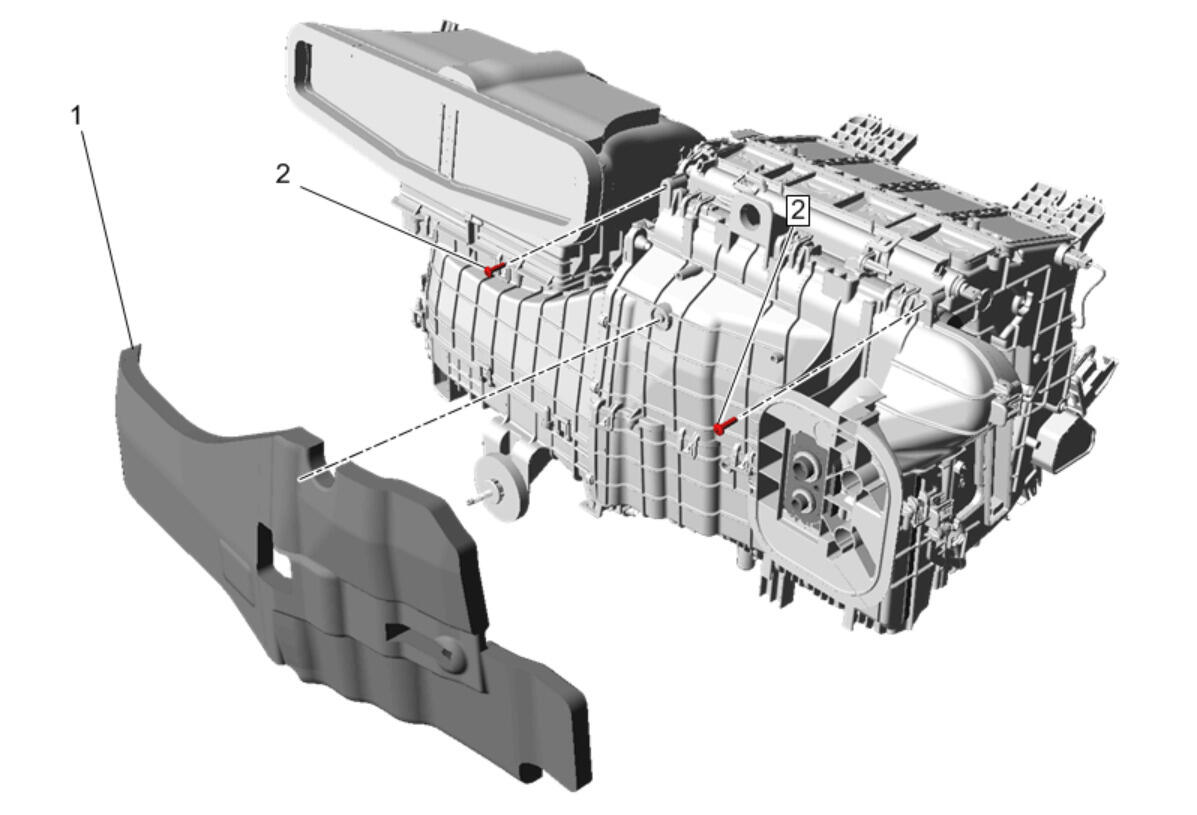

If equipped attach the heater and air conditioning evaporator and blower module insulator (1) to the heater and air conditioning evaporator and blower module.
Courtesy of GENERAL MOTORS COMPANY

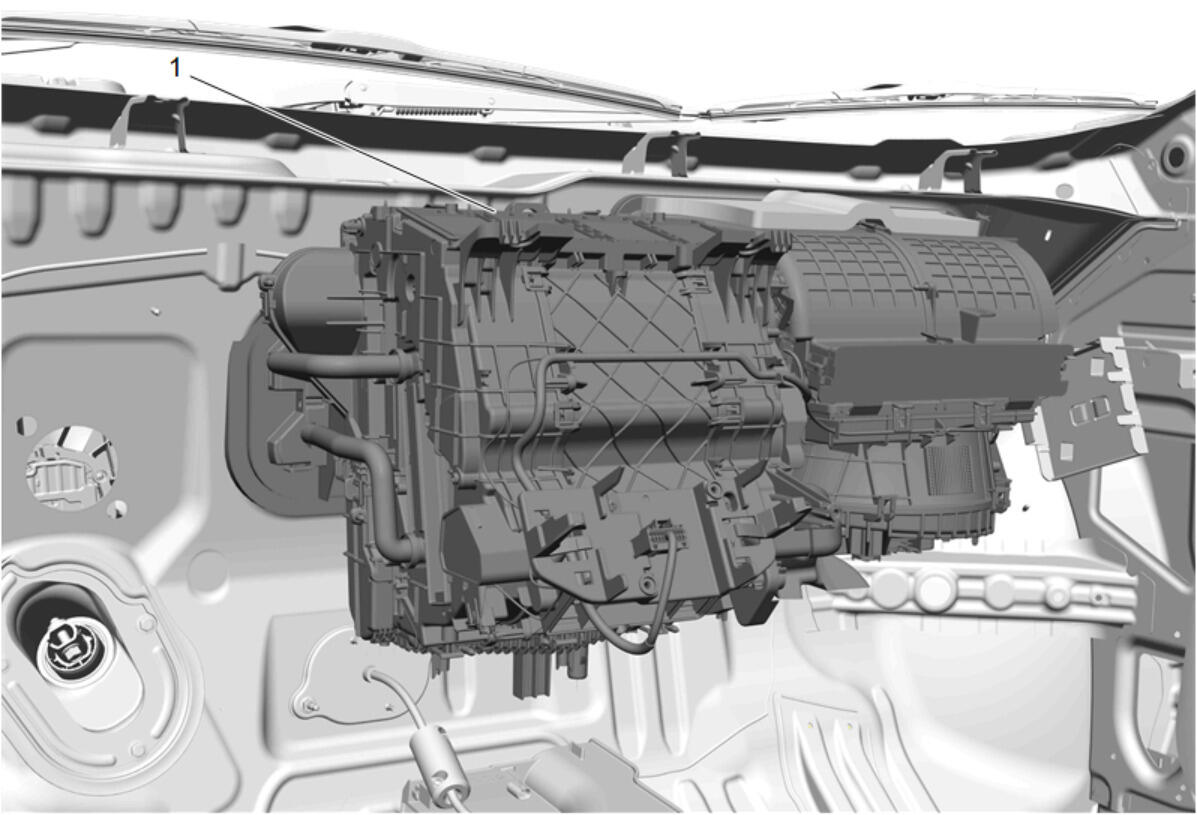

Heater and Air Conditioning Evaporator and Blower Module (1) - Install - Heater and Air Conditioning Evaporator and Blower Module Removal and Installation
