Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
  2. GM4320602Courtesy of GENERAL MOTORS COMPANY

    Heater Outlet Hose Retainer (1) - Disengage

  3. Heater Outlet Hose (2) @ Heater Coolant Pump Hose - Remove

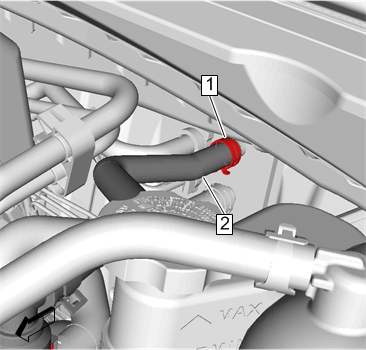

  4. GM4320612Courtesy of GENERAL MOTORS COMPANY

    Heater Outlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  5. Heater Outlet Hose (2) @ Heater Core - Remove
  6. Heater Outlet Hose (2) - Remove
