Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
  2. GM4320748Courtesy of GENERAL MOTORS COMPANY

    Heater Inlet Hose Retainer (1) - Disengage

  3. Heater Inlet Hose (2) @ Water Outlet - Remove

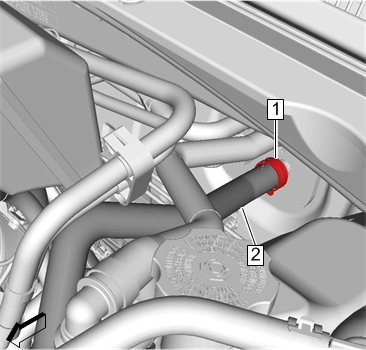

  4. GM4320750Courtesy of GENERAL MOTORS COMPANY

    Heater Inlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  5. Heater Inlet Hose (2) @ Heater Core - Remove
  6. Heater Inlet Hose (2) - Remove
