Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
- Engine Control Module and Bracket - Remove and position aside Engine Control Module Replacement

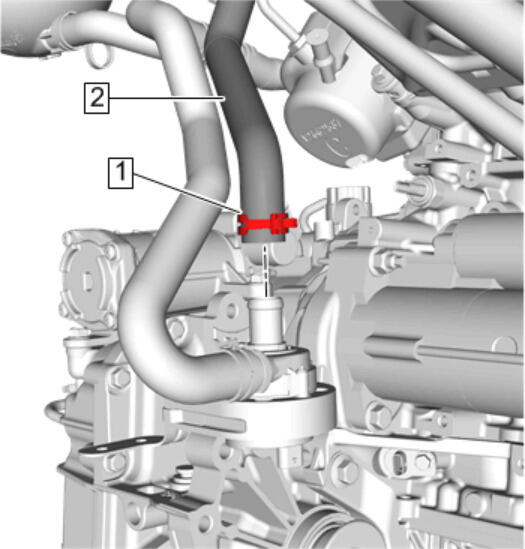

Heater Coolant Pump Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Heater Coolant Pump Hose - Inlet (2) @ Heater Coolant Pump - Remove and position aside
Heater Coolant Pump Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Heater Coolant Pump Hose - Outlet (2) @ Heater Coolant Pump - Remove and position aside
- Electrical Connector @ Heater Coolant Pump - Remove and position aside
Remove the engine electrical harness connector (1) from the heater coolant pump bracket bolt and position aside.

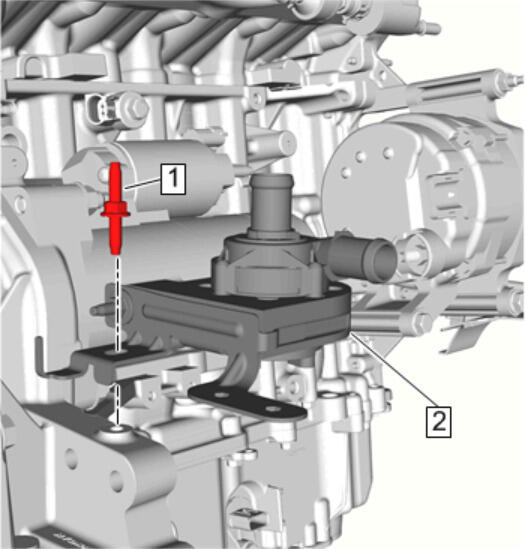

Heater Coolant Pump Bracket Bolt (1) - Remove
- Heater Coolant Pump (2) - Remove from the vehicle.
