Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
Intake Manifold Cover (1) - Remove - Intake Manifold Cover Replacement

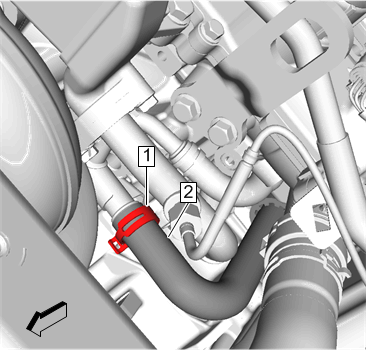

Heater Coolant Pump Hose Clamp (1) Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Heater Coolant Pump Hose (2) @ Heater Coolant Pump - Remove

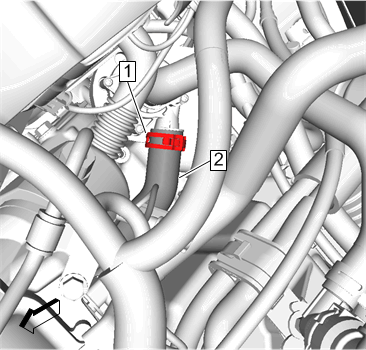

Heater Coolant Pump Hose Clamp (1) Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Heater Coolant Pump Hose (2) @ Water Pump Inlet Pipe - Remove
- Heater Coolant Pump Hose (2) - Remove
