Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

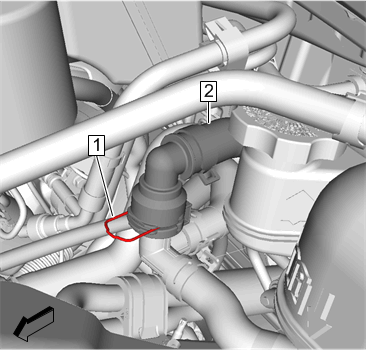

Heater Coolant Pump Hose (2) @ Heater Coolant Pump - Install
- Heater Coolant Pump Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type

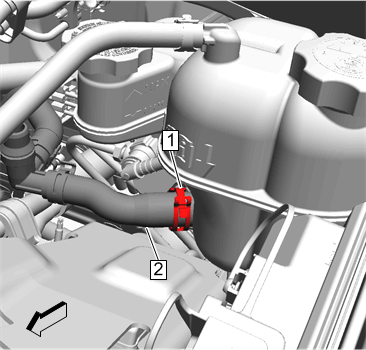

Heater Coolant Pump Hose (2) @ Radiator Surge Tank - Install
- Heater Coolant Pump Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Heater Outlet Hose (2) @ Heater Coolant Pump Hose - Install - Heater Outlet Hose Replacement (LKN)
Intake Manifold Cover (1) - Install - Intake Manifold Cover Replacement
- Fill the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
- Start the engine and check for coolant leaks.
