Fuel Heater Outlet Hose Replacement (LKN)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

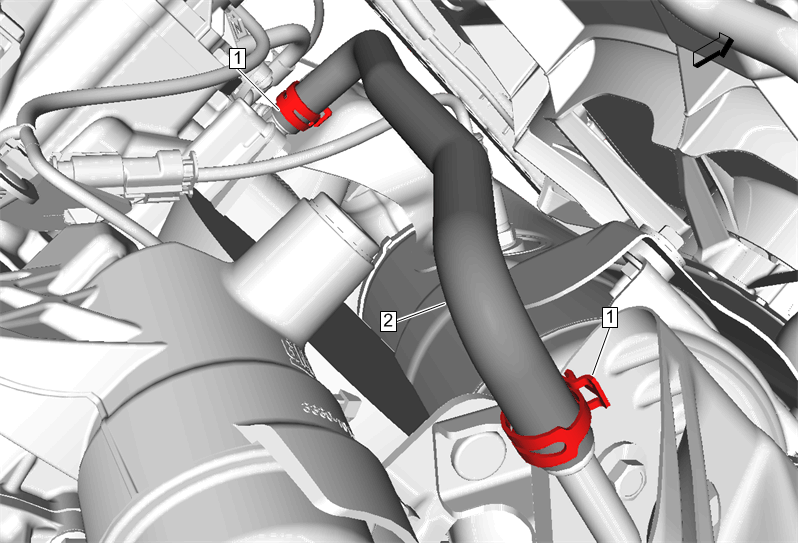

GM4322204Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Drain the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
1 Fuel Heater Outlet Hose Clamp [2x]
Procedure
Hose Clamp Replacement Guidelines - Spring Type
2 Fuel Heater Outlet Hose

Procedure

  1. Fill the cooling system to the proper level. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
  2. Start the engine and check for coolant leaks.
