Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4217301Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side (2) - Remove - Floor Front Air Outlet Duct Replacement - Left Side

  2. Disconnect all electrical connectors.

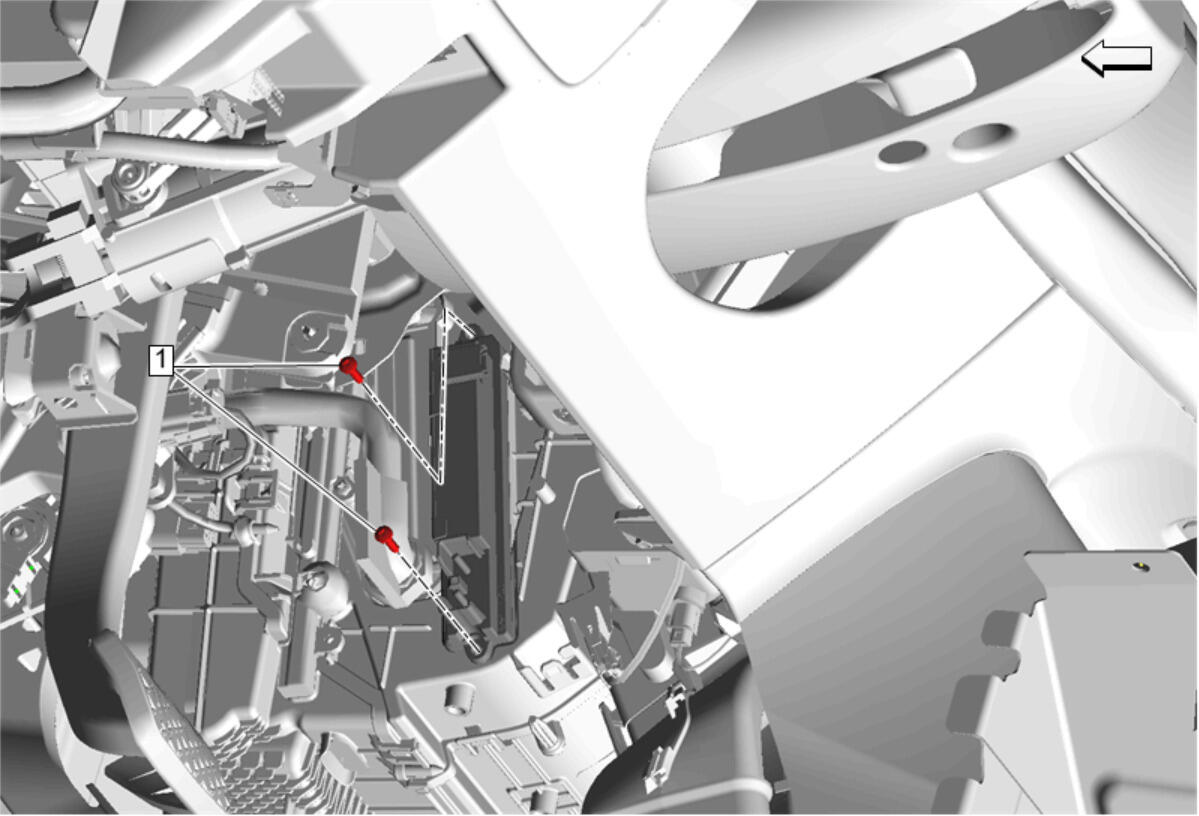

  3. GM4326101Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Heater Core Screw (1) - Remove [2x]

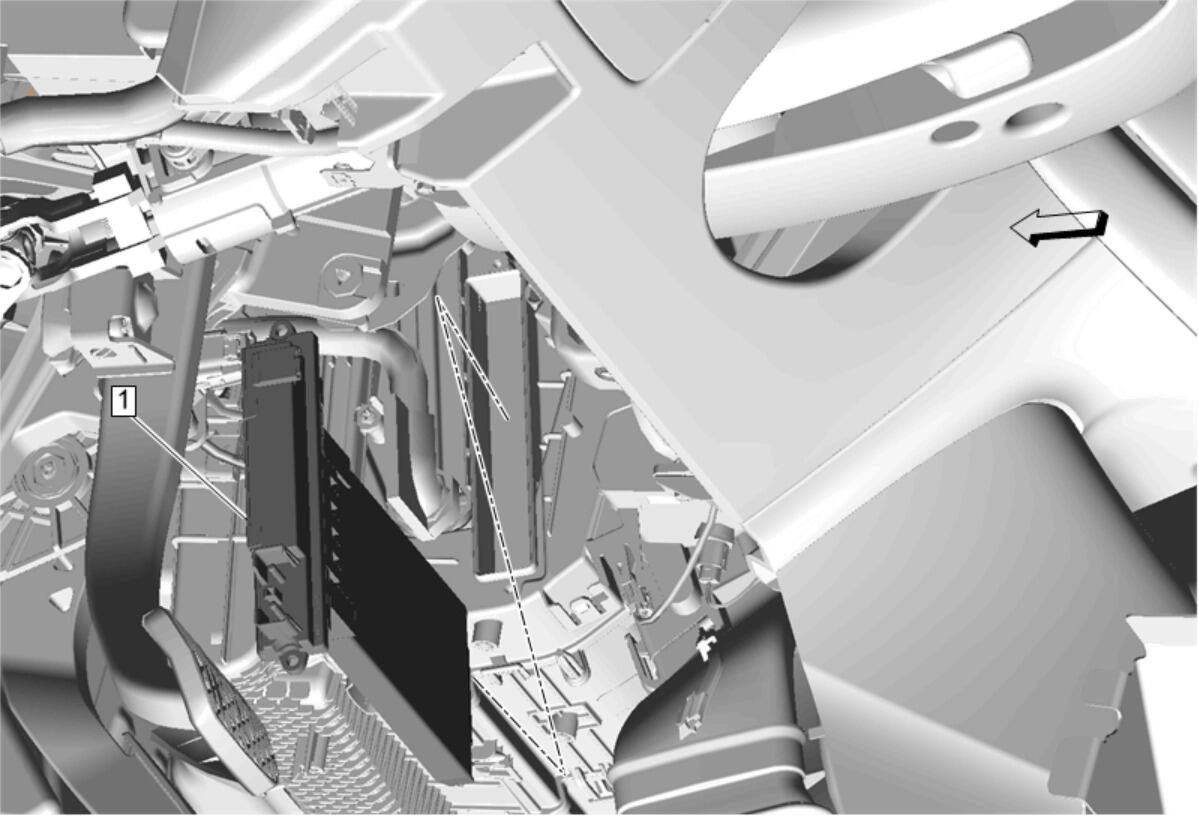

  4. GM4326106Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Heater Core (1) - Remove
