Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant. Refrigerant Recovery and Recharging (R-1234yf)
Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement
Air Cleaner Outlet Duct - Remove - Air Cleaner Outlet Duct Replacement
Engine Mount - Remove - Engine Mount Replacement
Courtesy of GENERAL MOTORS COMPANY

Intake Air Duct (2) - Remove - Intake Air Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporator Connector Hose/Tube and Compressor Hose (2) @ Air Conditioning Condenser and Air Conditioning Evaporator Tube - Remove - Air Conditioning Evaporator Connector Hose/Tube and Compressor Hose Replacement (LKN)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporator Tube Bracket Nut (1) - Remove
Air Conditioning Evaporator Tube (2) @ Front Compartment Inner Side Rail - Remove
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporator Thermal Expansion Valve Nut (3) - Remove
Air Conditioning Evaporator Tube (2) - Remove
Remove and DISCARD the sealing washer. (1) [2x]
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporator Tube (1) @ Front End Upper Tie Bar - Remove
Courtesy of GENERAL MOTORS COMPANY

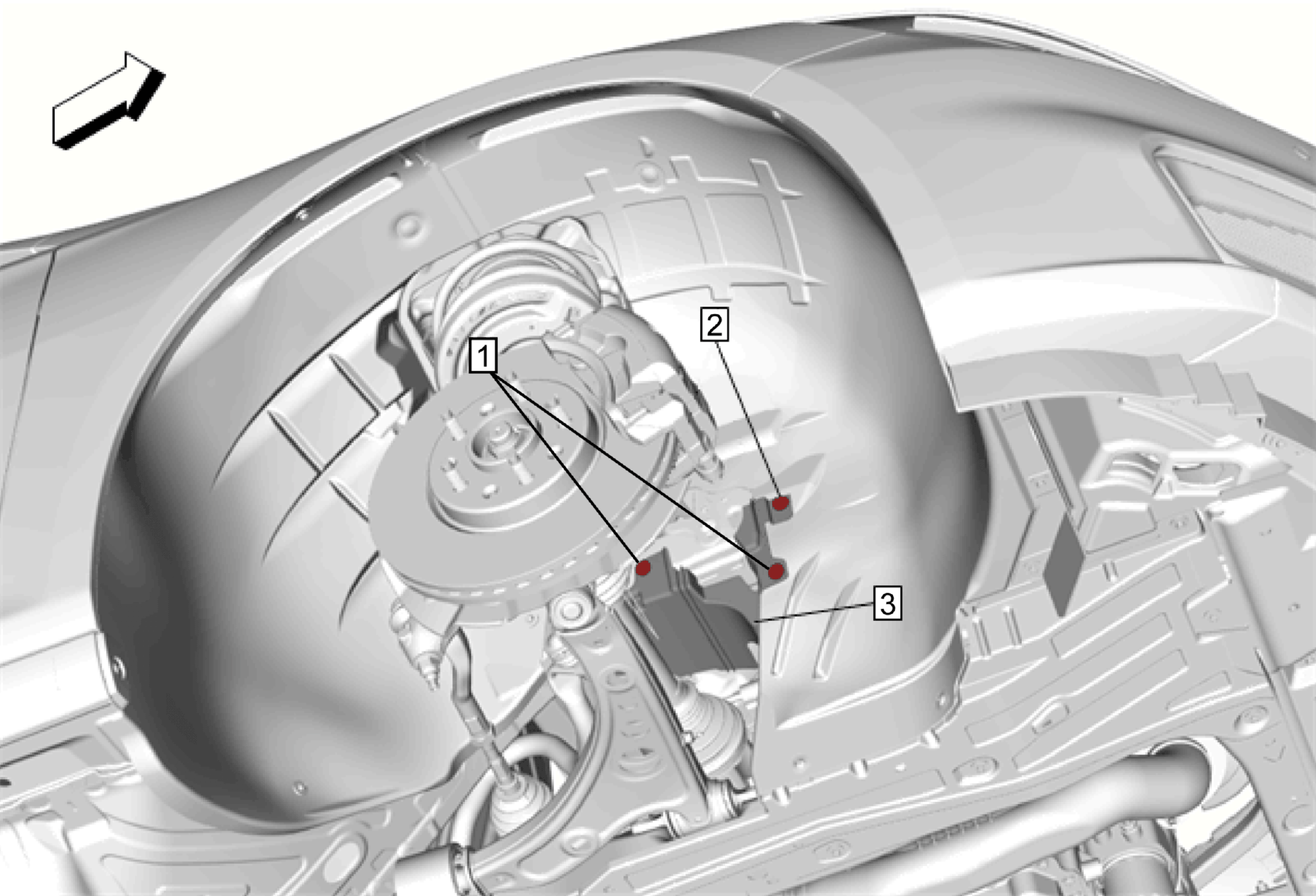

Engine Front Splash Shield (3) - Remove Engine Front Splash Shield Replacement (LFV, LTG)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor Hose (1) @ Air Conditioning Condenser - Remove - Air Conditioning Compressor Hose Replacement (LFV) , or Air Conditioning Compressor Hose Replacement (LTG)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporator Tube (1) @ Air Conditioning Condenser - Remove
Remove and DISCARD the sealing washer. (2)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporator Tube (1) @ Front Compartment Inner Side Rail - Remove
Remove the air conditioning evaporator tube (1) from the vehicle.
