Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

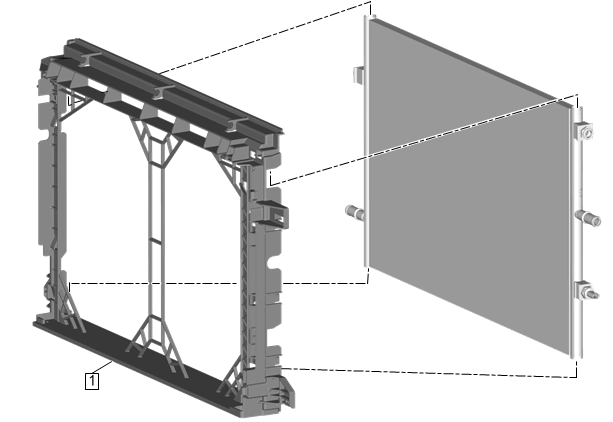

  1. GM4324192Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Condenser Bracket (1) @ Auxiliary Radiator - Install

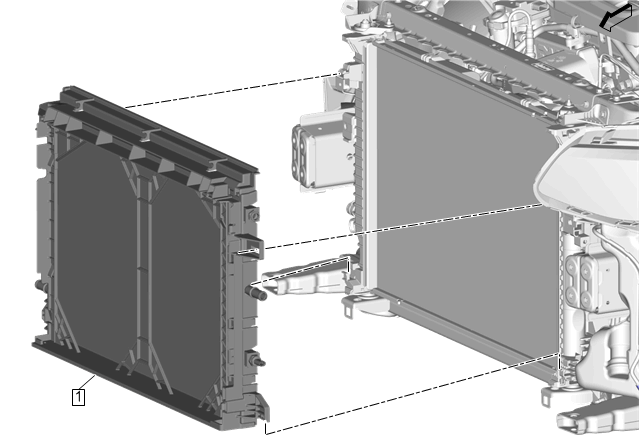

  2. GM4324318Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Condenser Assembly (1) @ Radiator - Install

  3. Connect all electrical connectors.
  4. GM4323002Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Generator Power Inverter Module Pump Cooling Inlet Hose (3) @ Auxiliary Radiator - Install - Drive Motor Power Inverter Module Cooling Inlet Hose Replacement (Drive Motor Bat Rad Surge Tank To Pump) , or Drive Motor Power Inverter Module Cooling Inlet Hose Replacement (Trans Pipe to Aux Radiator)

  5. GM4322996Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Generator Control Module Coolant Pump Hose (2) @ Auxiliary Radiator - Install - Drive Motor Generator Control Module Coolant Pump Hose Replacement (Pump to Aux Radiator)

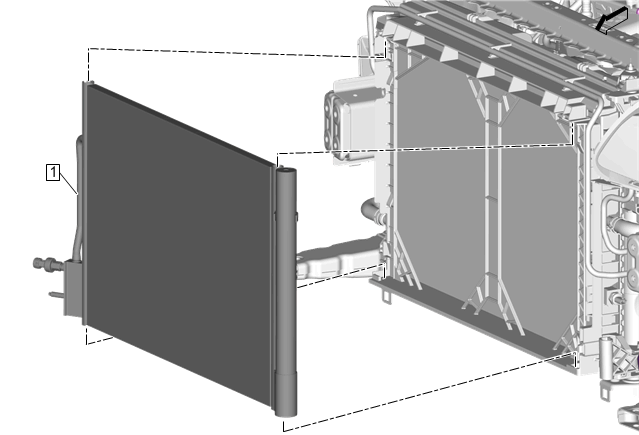

  6. GM4324317Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Condenser (1) @ Air Conditioning Condenser BracketInstall Air Conditioning Condenser Replacement (LKN)

  7. GM4296869Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Auxiliary Cooler Inlet Pipe (2) @ Air Conditioning Condenser Assembly - Install - Transmission Fluid Auxiliary Cooler Inlet Pipe Replacement (LKN With MKE)

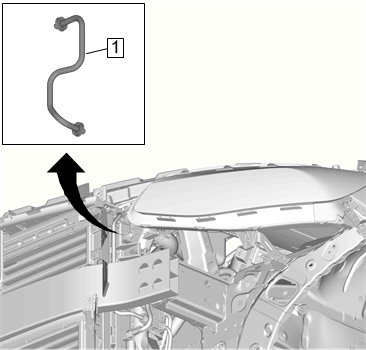

  8. GM4296595Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Auxiliary Cooler Outlet Pipe (1) @ Air Conditioning Condenser Assembly - Install - Transmission Fluid Auxiliary Cooler Outlet Pipe Replacement (LKN With MKE)

  9. GM4231649Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Lower Baffle and Deflector (1) - Install - Radiator Air Upper Baffle and Deflector Replacement (LKN)

  10. GM4323887Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle and Deflector (1) - Install - Radiator Air Upper Baffle and Deflector Replacement (LKN)

  11. GM4225223Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator Tube (1) @ Air Conditioning Condenser Assembly - Install - Air Conditioning Evaporator Tube Replacement (LKN)

  12. Recharge the refrigerant. Refrigerant Recovery and Recharging (R-1234yf)
