Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

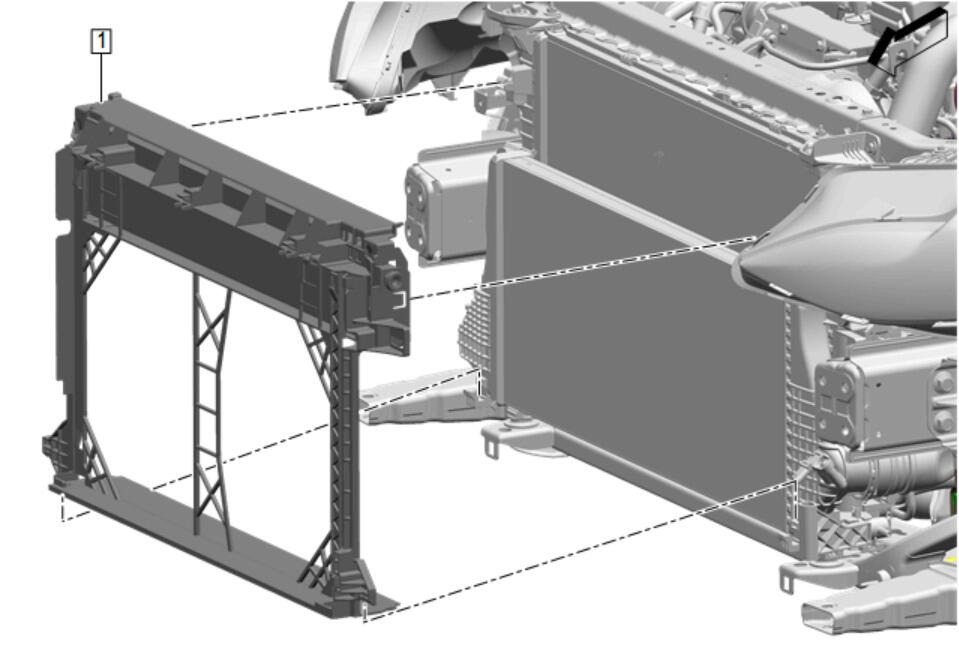

Air Conditioning Condenser Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

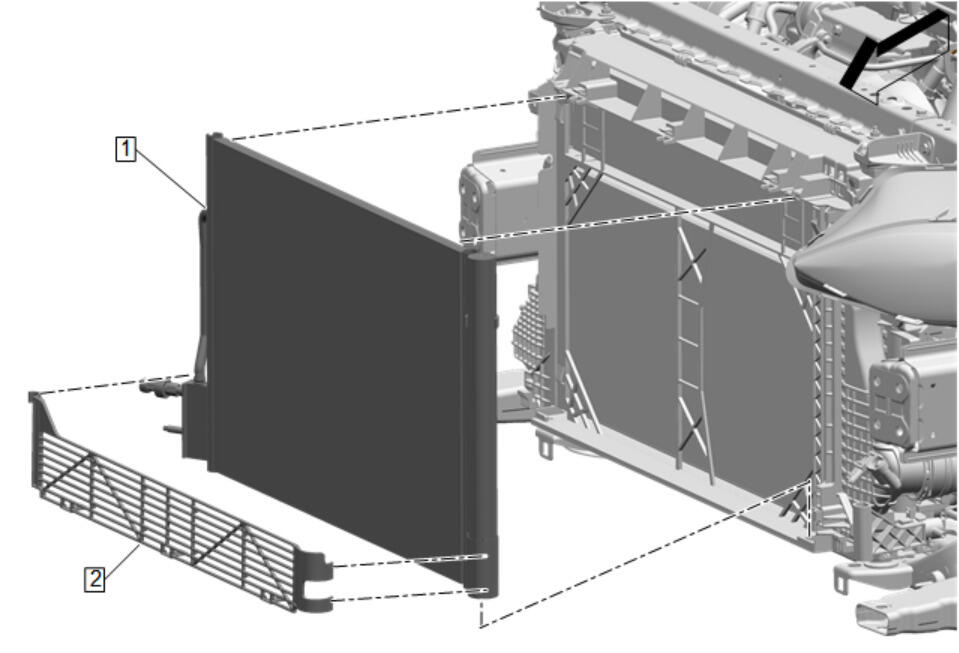

Air Conditioning Condenser (1) - Install

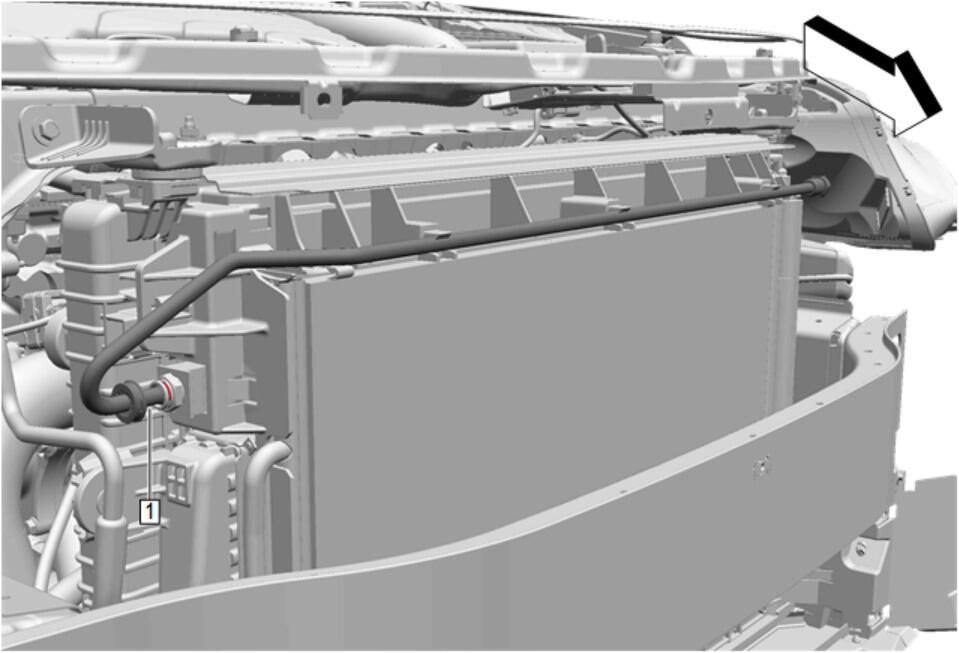

Connect the electrical connector at the air conditioning refrigerant pressure sensor.
Courtesy of GENERAL MOTORS COMPANY

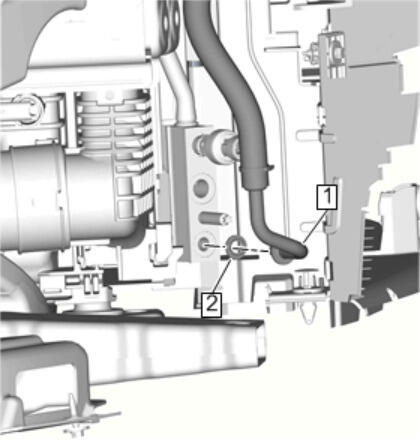

Transmission Fluid Cooler Inlet Pipe (1) - Install - Transmission Fluid Auxiliary Cooler Inlet Pipe Replacement (LKN With MKE)
Courtesy of GENERAL MOTORS COMPANY

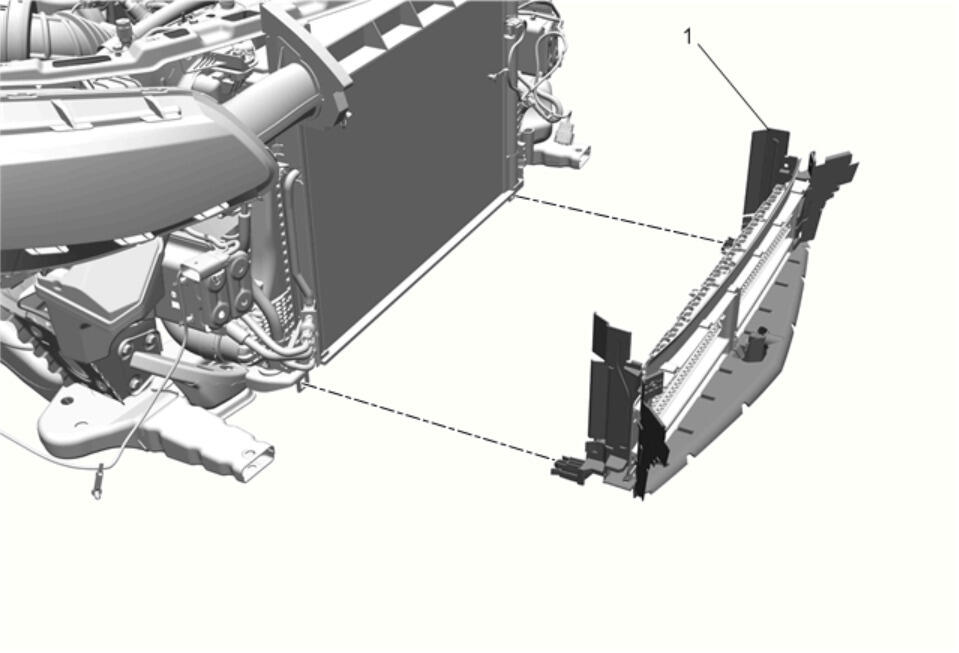

Radiator Air Lower Baffle and Deflector (1) - Install - Radiator Air Upper Baffle and Deflector Replacement (LFV, LTG)
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Upper Baffle and Deflector (1) - Install - Radiator Air Upper Baffle and Deflector Replacement (LFV, LTG)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporator Tube (1) @ Air Conditioning Condenser Assembly - Install - Air Conditioning Evaporator Tube Replacement (LFV, LTG)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor Hose (1) @ Air Conditioning Condenser Assembly - Install - Air Conditioning Compressor Hose Replacement (LFV)
Recharge the refrigerant. Refrigerant Recovery and Recharging (R-1234yf)
Inspect for refrigerant leaks. Leak Testing (R-1234yf)
Courtesy of GENERAL MOTORS COMPANY

Install the front bumper fascia. (1) Front Bumper Fascia Replacement
