Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refrigerant Recovery and Recharging (R-1234yf)
  2. Drive Belt@Air Conditioning Compressor - Remove - Drive Belt Replacement
  3. GM4225208Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor Hose (1) @ Air Conditioning Compressor - Remove - Air Conditioning Compressor Hose Replacement (LFV) , or Air Conditioning Compressor Hose Replacement (LTG)

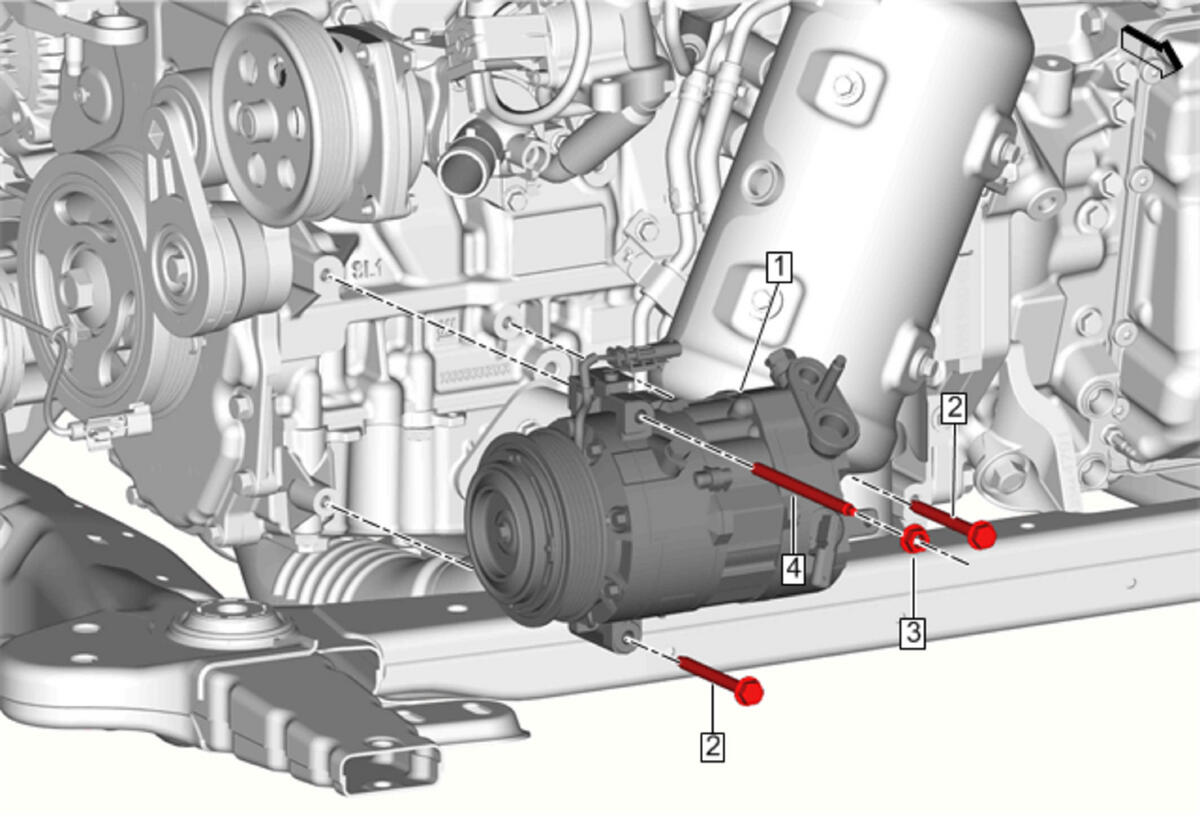

  4. GM4236677Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor Bolt (2) [2x] - Remove

  5. Air Conditioning Compressor Nut (3) - Remove
  6. Air Conditioning Compressor Stud (4) - Remove
  7. Air Conditioning Compressor (1) - Remove
