Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refrigerant Recovery and Recharging (R-1234yf)
  2. GM5107622Courtesy of GENERAL MOTORS COMPANY

    Remove the front bumper fascia. (1) Front Bumper Fascia Replacement

  3. Air Cleaner Outlet Duct - Remove - Air Cleaner Outlet Duct Replacement

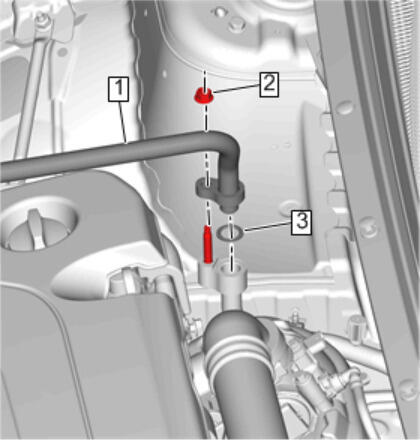

  4. GM4225220Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor Hose Nut (2) - Remove

  5. Air Conditioning Compressor Hose (1) - Remove
  6. Remove and DISCARD the sealing washer. (3)

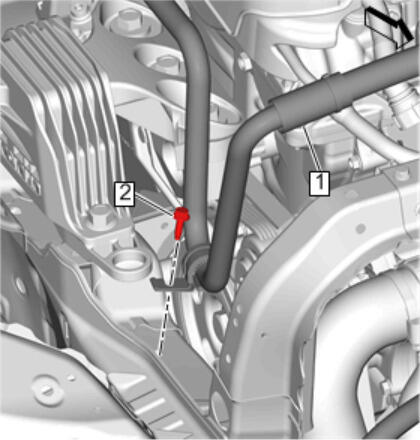

  7. GM4225226Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor Hose Bolt (2) - Remove

  8. Air Conditioning Compressor Hose (1) - Remove
  9. Charge Air Cooler Inlet Air Tube - Remove - Charge Air Cooler Inlet Air Tube Replacement

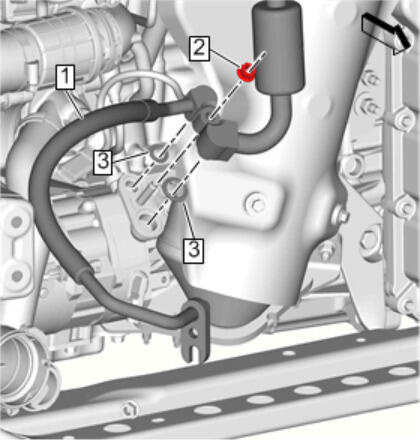

  10. GM4225208Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor Hose Nut (2) - Remove

  11. Air Conditioning Compressor Hose (1) - Remove
  12. Remove and DISCARD the sealing washer. (3) [2x]

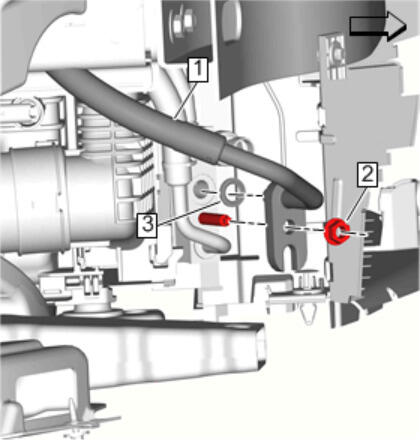

  13. GM4225209Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor Hose Nut (2) - Remove

  14. Air Conditioning Compressor Hose (1) - Remove
  15. Remove and DISCARD the sealing washer. (3)
  16. Remove the air conditioning compressor hose from the vehicle.
