Installation Procedure
- Remove the engine from the engine stand with the engine lifting device.
- Use the engine lifting device to install the engine.
- Reposition harnesses, connect the electrical connections, and hoses as necessary.
Install the transmission bolt (1). Transmission Replacement
- Install the transmission stud (2). Transmission Replacement
Install the starter/generator battery cable retainer (1) to the transmission stud (2).
Engine Mount (2) - Install - Engine Mount Replacement
- Fuel Feed Front Pipe @ Fuel Feed Pipe - Connect
Transmission Converter Cover (2) - Install
- Transmission Bolt (1) - Install [4x] - Transmission Replacement
- Remove the transmission jack.
- Remove the engine lifting device.
- If the engine lift brackets were not present and EN-36857 engine lift brackets were installed, remove them.
Torque Converter Bolt (1) - Install NEW [3x] - Transmission Replacement
Electrical Connector (1) - Connect [2x]

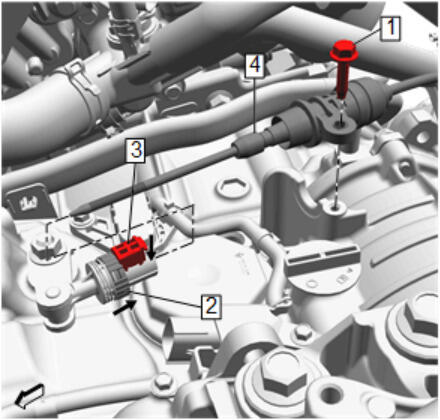

Install the range selector lever cable (4) to the range selector lever cable lever.
- Automatic Transmission Range Selector Lever Cable Bolt (1) - Install - Transmission Replacement
- Depress the cable adjustment retainer (3) locking the retainer completely.
- Slide the retainer lock (2) rearward to cover the cable adjustment retainer (3).
- Range Selector Lever Cable - Adjust - Range Selector Lever Cable Adjustment
- Catalytic Converter Brace Bracket- Lower - Install - Catalytic Converter Brace Bracket Replacement (Lower LFV) , or Catalytic Converter Brace Bracket Replacement (Upper LFV)
Warm Up Three-Way Catalytic Converter (2) - Install - Warm Up Three-Way Catalytic Converter Replacement (LFV)
- Catalytic Converter Brace Bracket- Upper - Install - Catalytic Converter Brace Bracket Replacement (Lower LFV) , or Catalytic Converter Brace Bracket Replacement (Upper LFV)
- Turbocharger Heat Shield - Install - Turbocharger Heat Shield Replacement
- Battery Tray - Install - Battery Tray Replacement (LFV)
- Engine Control Module - Install - Engine Control Module Replacement
Battery (3) - Install - Battery Replacement
- Starter - Install - Starter Replacement (LFV)
- Exhaust Front Pipe - Install - Exhaust Front Pipe Replacement (LFV)
- Exhaust Pipe Front Hanger Bracket - Install - Exhaust Pipe Front Hanger Bracket Replacement
- Install the air conditioning compressor to the engine. Air Conditioning Compressor Replacement (LFV)
Water Pump and Air Conditioning Compressor and Generator Belt (2) - Install - Water Pump, Air Conditioning Compressor, and Generator Belt Replacement
- Front Compartment Air Deflector - Install - Front Compartment Air Deflector Replacement
- Front Compartment Splash Shield - Install - Front Compartment Splash Shield Replacement
- Front Wheelhouse Liner- Right Side - Install - Front Wheelhouse Liner Replacement - Right Side (LFV, LTG)
- Front Wheelhouse Liner- Left Side - Install - Front Wheelhouse Liner Replacement - Left Side
Connect the heater inlet hose (3) and heater outlet hose (4) to the water outlet. Hose Clamp Replacement Guidelines - Spring Type
Engine Coolant Air Bleed Hose (2) @ Turbocharger Coolant Return Pipe - Connect
Radiator Outlet Hose (2) @ Engine Coolant Thermostat Housing - Connect - Hose Clamp Replacement Guidelines - Spring Type
Radiator Inlet Hose (2) @ Water Outlet - Connect - Hose Clamp Replacement Guidelines - Spring Type
Charge Air Cooler Inlet Air Tube (2) - Install
- Retainer Spring (1) @ Charge Air Cooler - Engage
Retainer Spring (1) @ Compressor Air Intake Turbocharger - Engage
- Air Cleaner Outlet Duct - Reposition
Air Cleaner Assembly (1) - Install
- Electrical Connector @ Air Cleaner Assembly - Connect
Air Cleaner Outlet Duct Clamp (1) - Tighten [2x] - Air Cleaner Outlet Duct Replacement
Charge Air Cooler Coolant Outlet Pipe (2) - Install
- Retainer Spring (1) @ Charge Air Cooler - Engage
Retainer Spring (2) @ Throttle Body - Engage
- Charge Air Cooler Outlet Air Hose Bracket Bolt (1) - Install - Charge Air Cooler Outlet Air Tube Replacement
Radiator Outlet Hose Clip (1) @ Charge Air Cooler Outlet Pipe (2) - Engage
- Intake Manifold Cover - Install - Intake Manifold Cover Replacement
Hood (2) - Install - Hood Replacement
- Fill the cooling system to the proper level. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9)
Install the front tire and wheel assemblies. (1) Tire and Wheel Removal and Installation
- Prelube is necessary if the engine is replaced or overhauled. Engine Prelubing
- If engine has not been replaced of overhauled, fill the engine oil. Engine Oil and Oil Filter Replacement
- Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
Carefully move the air cleaner outlet duct with the positive crankcase ventilation tubes attached into position.
Front fascia removed for clarity.
