Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Temperature Sensor (4) @ Radiator Assembly (3) - Install
Engine Coolant Temperature Sensor Retainer (5) @ Radiator Assembly (3) - Install
Radiator Lower Bracket (2) @ Radiator Assembly (3) - Install [2x]
Radiator Upper Bracket (1) @ Radiator Assembly (3) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Transmission Cooler Bypass Valve (1) @ Radiator AssemblyInstall
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

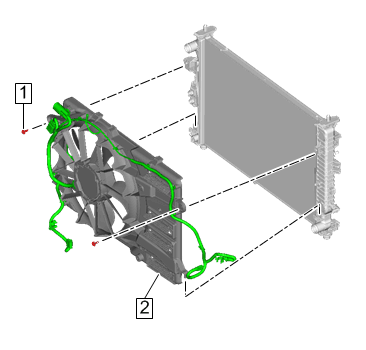

Engine Coolant Fan (2) @ Radiator Assembly - Install
Engine Coolant Fan Shroud Bolt (1) - Install and tighten [2x] 5.1 N.m (45 lb in)
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

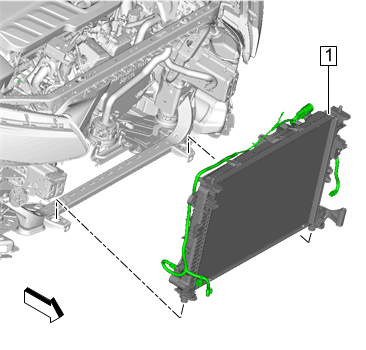

Engine Coolant Fan Module Radiator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Wiring Harness (2) @ Generator Control Module Coolant PumpConnect
Courtesy of GENERAL MOTORS COMPANY

Generator Control Module Coolant Pipe Clip (3) @ Engine Coolant FanInstall - Drive Motor Generator Control Module Coolant Pump Hose Replacement (Pump to Aux Radiator)
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose (2) @ Radiator Assembly - Install - Radiator Outlet Hose Replacement (LKN)
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Inlet Pipe (2) @ Transmission Cooler Bypass Valve - Install - Transmission Fluid Cooler Inlet Pipe Replacement (LKN With MKE)
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Inlet Pipe (1) @ Transmission Fluid Cooler Pipe Clip - Install - Transmission Fluid Cooler Inlet Pipe Replacement (LKN With MKE)
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Outlet Pipe (2) @ Transmission Cooler Bypass Valve - Install - Transmission Fluid Cooler Outlet Pipe Replacement (LKN With MKE)
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Outlet Pipe (1) @ Transmission Fluid Cooler Pipe Clip - Install - Transmission Fluid Cooler Outlet Pipe Replacement (LKN With MKE)
Courtesy of GENERAL MOTORS COMPANY

Connect the engine cooling fan harness connectors (1) from the engine harness.
Connect the ground wire to the front end upper tie bar.
Courtesy of GENERAL MOTORS COMPANY

Radiator Inlet Hose (2) @ Radiator Assembly - Install - Radiator Inlet Hose Replacement (LKN)
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket (3) -Right Side - Install - Radiator Upper Bracket Replacement - Right Side (Front End Upper Tie Bar) , or Radiator Upper Bracket Replacement - Right Side (Upper Mounting Pin)
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket (3) -Left Side - Install - Radiator Upper Bracket Replacement - Left Side (Front End Upper Tie Bar) , or Radiator Upper Bracket Replacement - Left Side (Upper Mounting Pin)
Front Bumper Fascia Center Support - Install - Front Bumper Fascia Center Support Replacement
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Bracket (1) - Install - Air Conditioning Condenser Bracket Replacement (LKN)
Recharge the refrigerant. Refrigerant Recovery and Recharging (R-1234yf)
Fill the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
Start the engine and check for coolant leaks.
Check the transmission fluid level.
Inspect for refrigerant leaks.
