Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
Recover the refrigerant. Refrigerant Recovery and Recharging (R-1234yf)
Courtesy of GENERAL MOTORS COMPANY

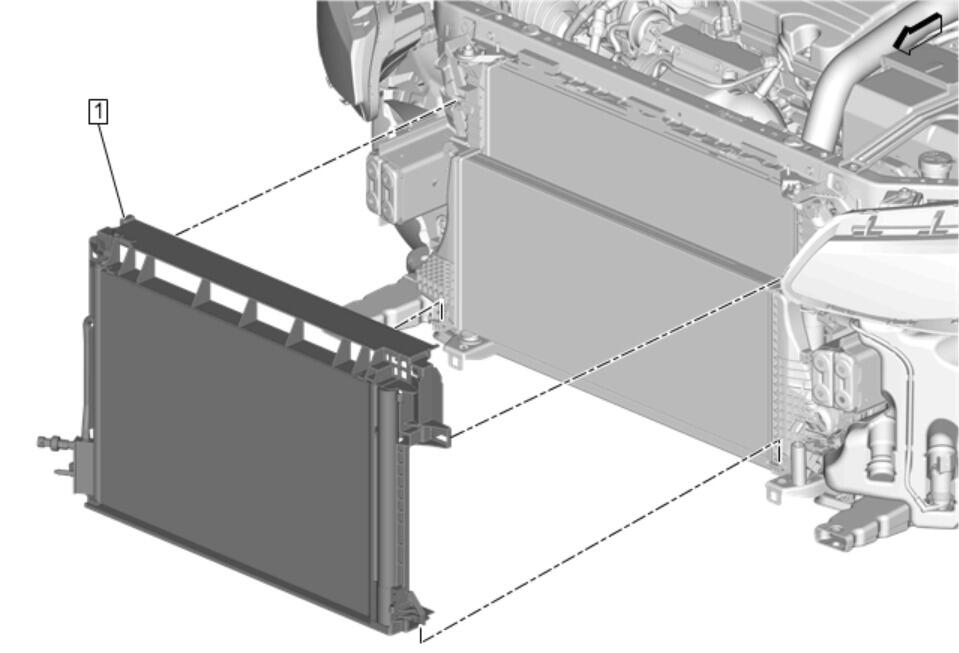

Air Conditioning Condenser (1) - Remove - Air Conditioning Condenser Replacement (LTG) , or Air Conditioning Condenser Replacement (LFV)
Front Bumper Fascia Center Support - Remove - Front Bumper Fascia Center Support Replacement
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket (3) - Left Side - Remove - Radiator Upper Bracket Replacement - Left Side (Front End Upper Tie Bar) , or Radiator Upper Bracket Replacement - Left Side (Upper Mounting Pin)
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket (3) - Right Side - Remove - Radiator Upper Bracket Replacement - Right Side (Front End Upper Tie Bar) , or Radiator Upper Bracket Replacement - Right Side (Upper Mounting Pin)
Air Cleaner Outlet Duct Replacement - Remove
Intake Air Duct Replacement - Remove
Charge Air Cooler Inlet Air Tube Replacement - Remove
Charge Air Cooler Replacement - Remove
Courtesy of GENERAL MOTORS COMPANY

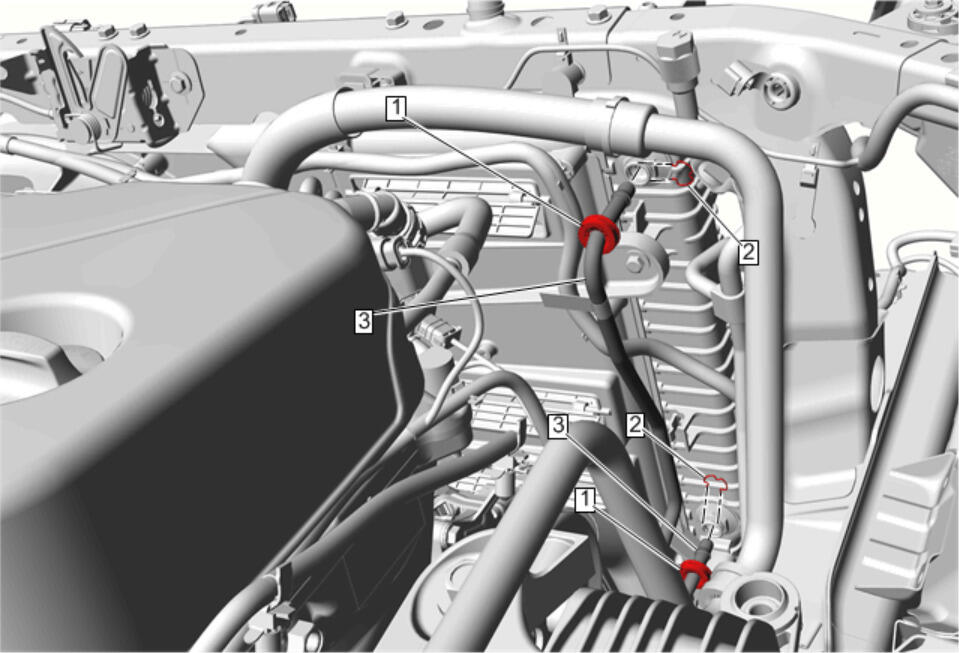

Slide back Transmission Fluid Cooler Pipe Connector Cap (1) [2x]
Transmission Fluid Cooler Pipe FittingRetainer (2) [2x] - Remove
Transmission Fluid Cooler Inlet and Outlet Pipe (3) [2x] - Remove
Courtesy of GENERAL MOTORS COMPANY

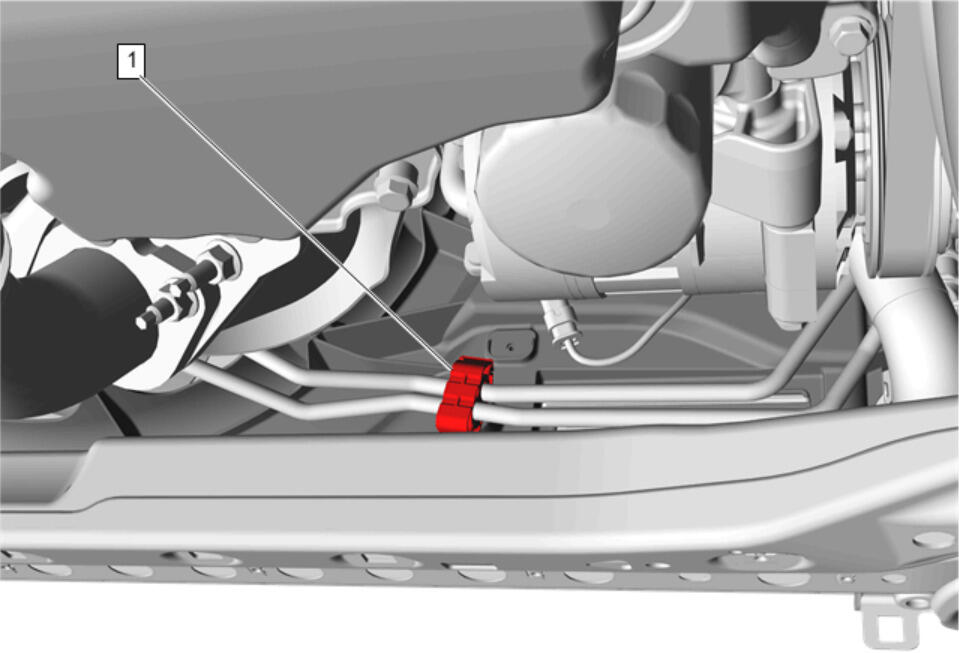

Transmission Fluid Cooler Inlet and Outlet Pipe Clip (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

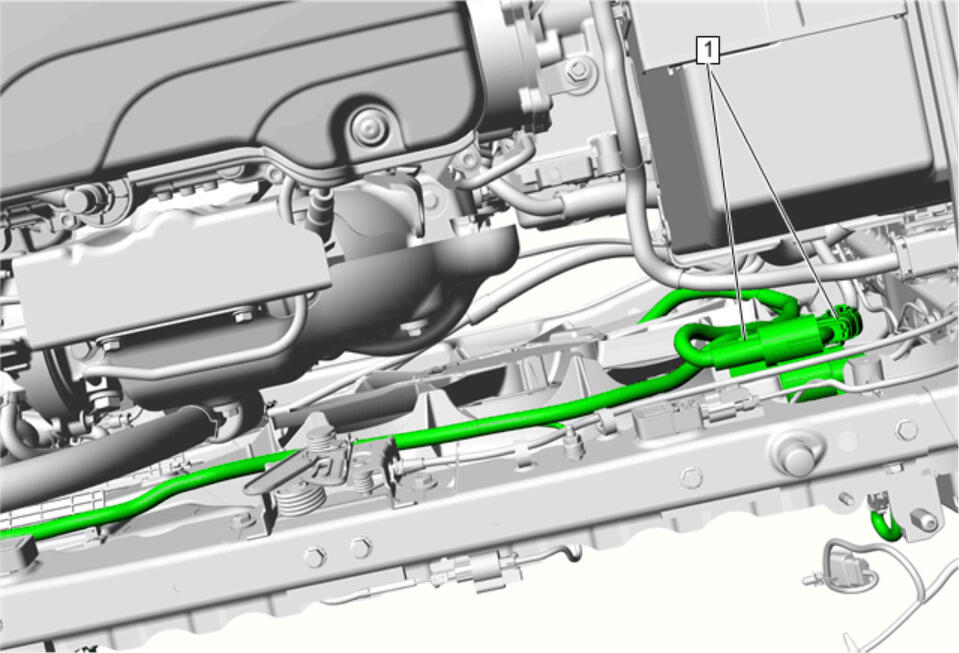

Disconnect the engine cooling fan harness connectors (1) from the engine harness.
Disconnect the ground wire from the front end upper tie bar.
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose Clamp (1) - Disengage

Use the GE-47622 Hose Clamp Pliers.
Radiator Outlet Hose (2) @ Radiator Assembly - Remove
Courtesy of GENERAL MOTORS COMPANY

Radiator Inlet Hose (2) @ Radiator Assembly - Remove - Radiator Inlet Hose Replacement (LFV) , or Radiator Inlet Hose Replacement (LTG)
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Module Radiator (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector.
Engine Coolant Fan Shroud Bolt (1) [2x] - Remove
Engine Coolant Fan (2) @ Radiator Assembly (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket (1) [2x] @ Radiator Assembly (3) - Remove
Radiator Lower Bracket (2) [2x] @ Radiator Assembly (3) - Remove
Engine Coolant Temperature Sensor Retainer (5) @ Radiator Assembly (3) - Remove
Engine Coolant Temperature Sensor (4) @ Radiator Assembly (3) - Remove
