Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

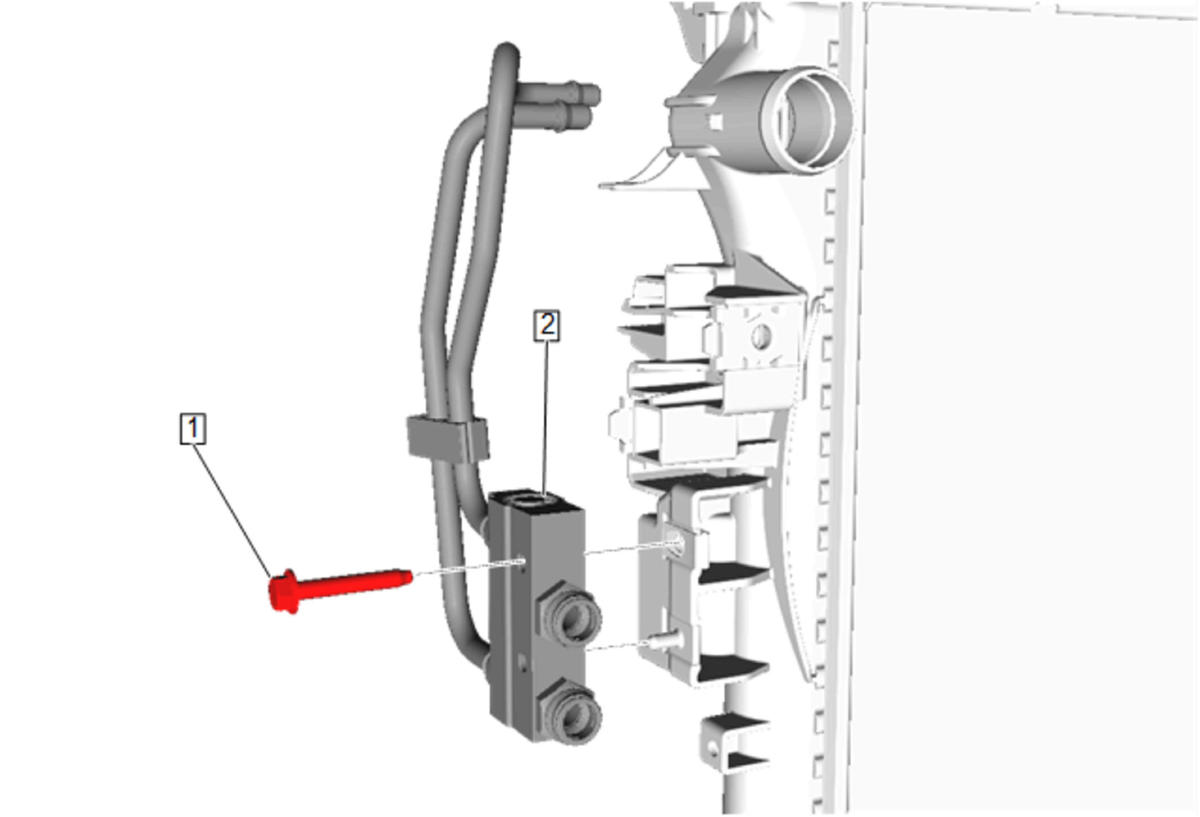

Transmission Fluid Cooler Inlet and Outlet Pipe (2) - Install - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LFV with MRG)
Courtesy of GENERAL MOTORS COMPANY

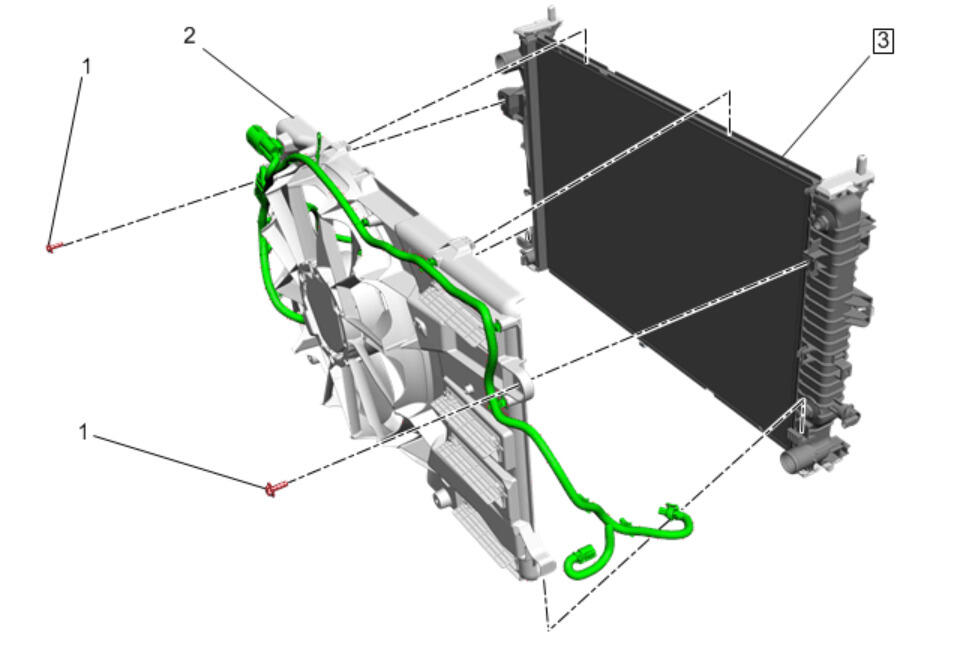

Engine Coolant Fan (2) @ Radiator Assembly (3) - Install - Engine Coolant Fan Replacement
Engine Coolant Temperature Sensor @ Radiator - Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

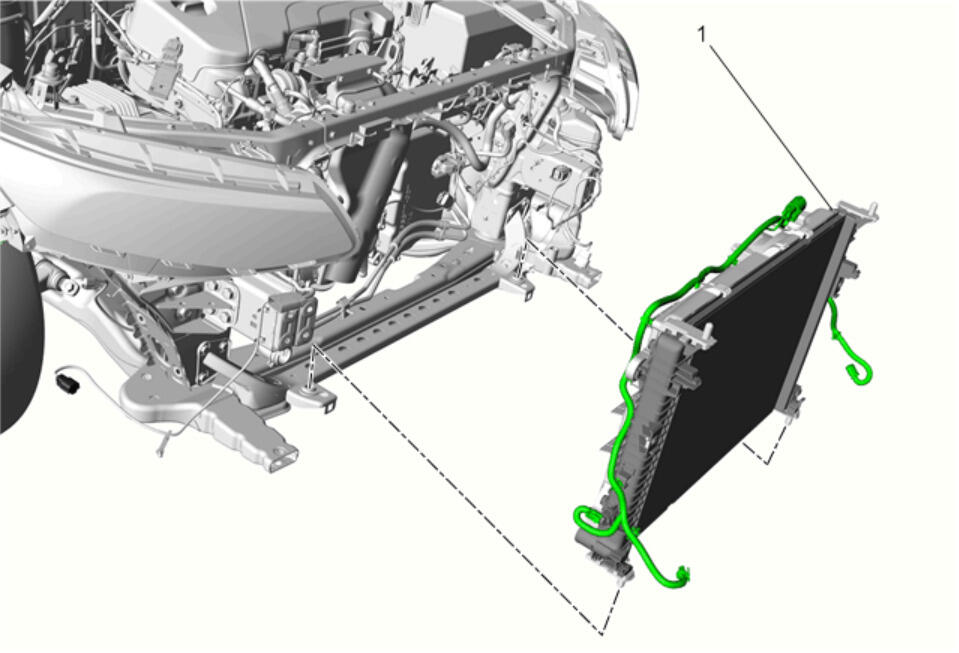

Engine Coolant Fan Module Radiator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose (2) @ Radiator Assembly - Install - Radiator Outlet Hose Replacement (LFV) , or Radiator Outlet Hose Replacement (LTG)
Courtesy of GENERAL MOTORS COMPANY

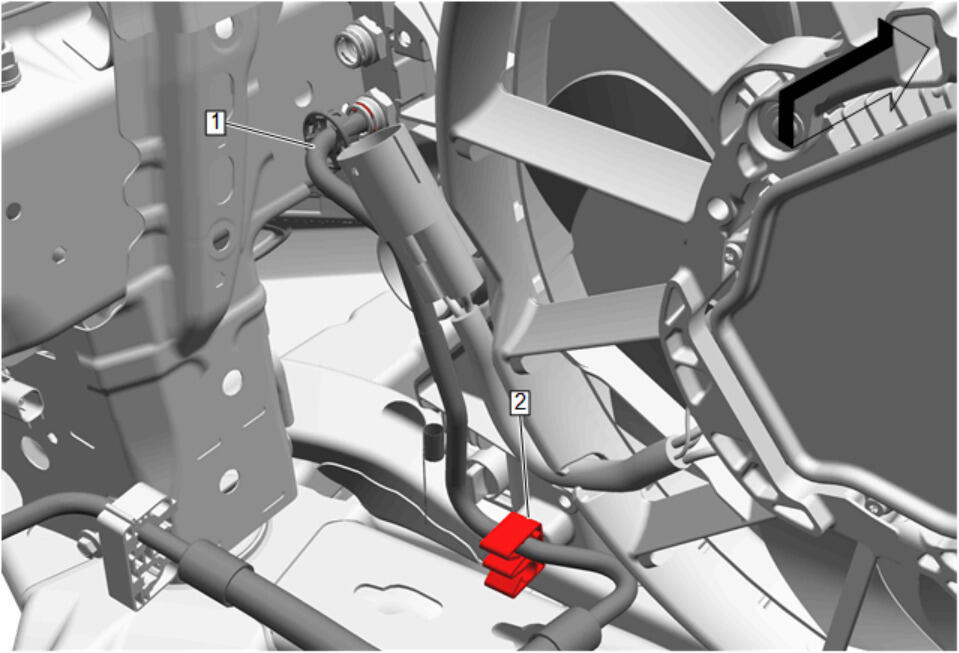

Transmission Fluid Cooler Outlet Pipe (1) @ Transmission Fluid Cooler Inlet and Outlet Pipe - Install - Transmission Fluid Cooler Outlet Pipe Replacement (LTG with M3E) , or Transmission Fluid Cooler Outlet Pipe Replacement (LFV with MRG)
Courtesy of GENERAL MOTORS COMPANY

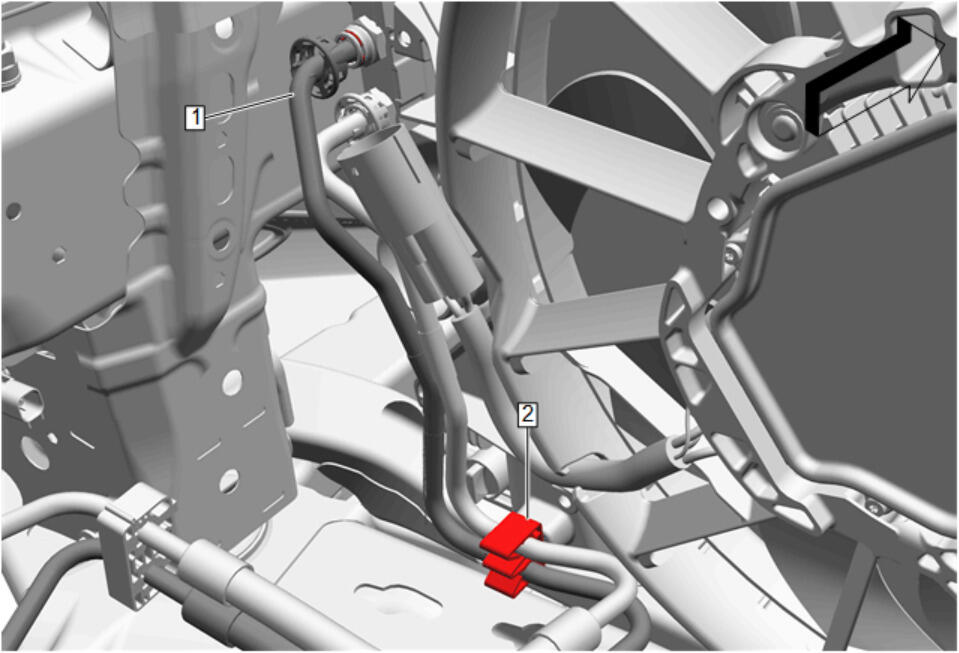

Transmission Fluid Cooler Inlet Pipe (1) @ Transmission Fluid Cooler Inlet and Outlet Pipe - Install - Transmission Fluid Cooler Inlet Pipe Replacement (LTG with M3E) , or Transmission Fluid Cooler Inlet Pipe Replacement (LFV with MRG (at the air conditioning condenser bracket)) , or Transmission Fluid Cooler Inlet Pipe Replacement (LFV with MRG (from the transmission to the transmission fluid cooler inlet pipe))
Courtesy of GENERAL MOTORS COMPANY

Radiator Inlet Hose (2) @ Radiator Assembly - Install - Radiator Inlet Hose Replacement (LFV) , or Radiator Inlet Hose Replacement (LTG)
Courtesy of GENERAL MOTORS COMPANY

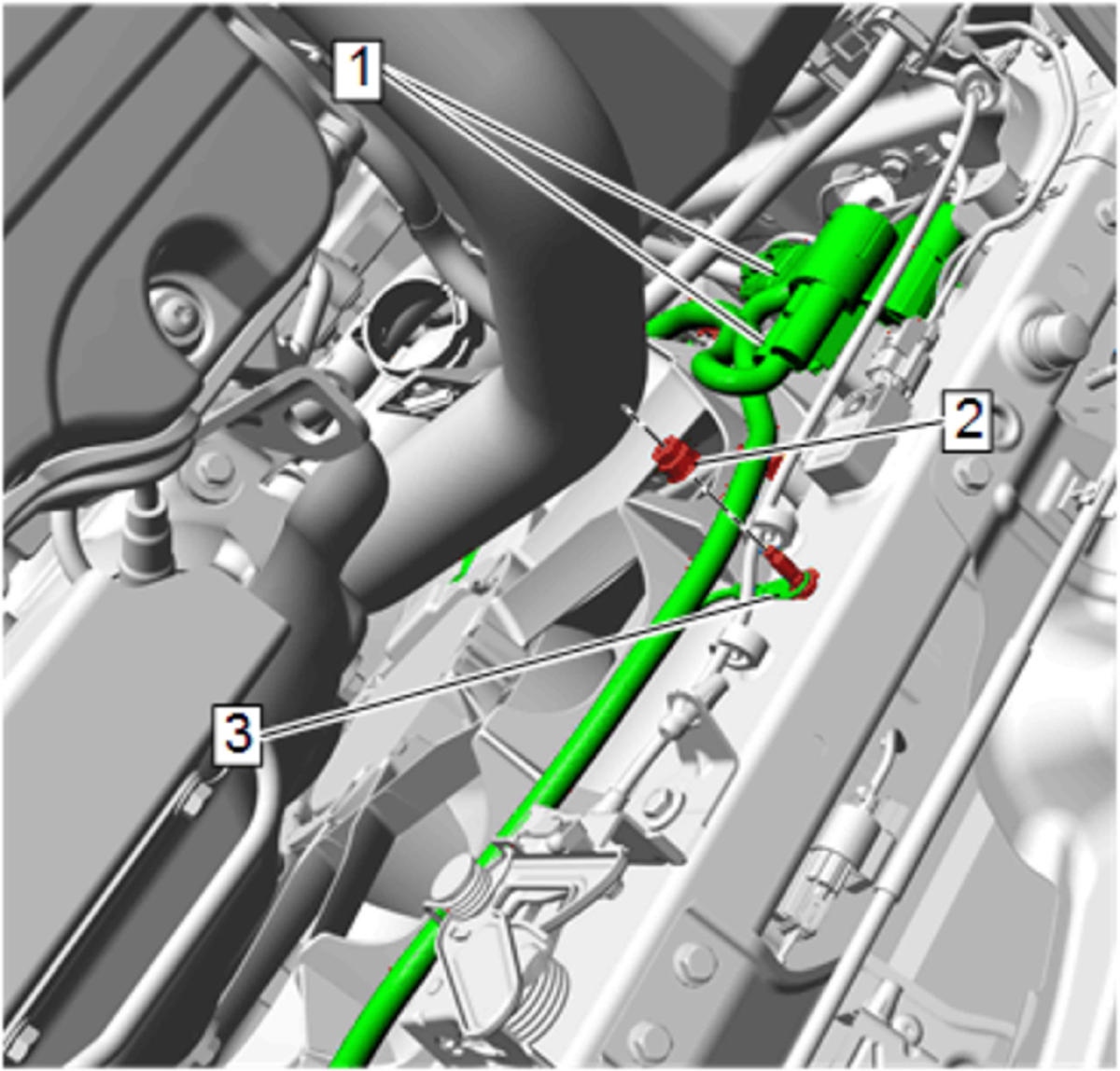

Connect the engine cooling fan harness connectors (1) to the engine harness.
Install the ground terminal (3) onto the ground stud.
Ground Nut (2) - Install - Ground Repair
Charge Air Cooler - Install - Charge Air Cooler Replacement
Charge Air Cooler Outlet Air Tube - Install - Charge Air Cooler Outlet Air Tube Replacement
Charge Air Cooler Inlet Air Tube - Install - Charge Air Cooler Inlet Air Tube Replacement
Air Cleaner Outlet Duct - Install - Air Cleaner Outlet Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

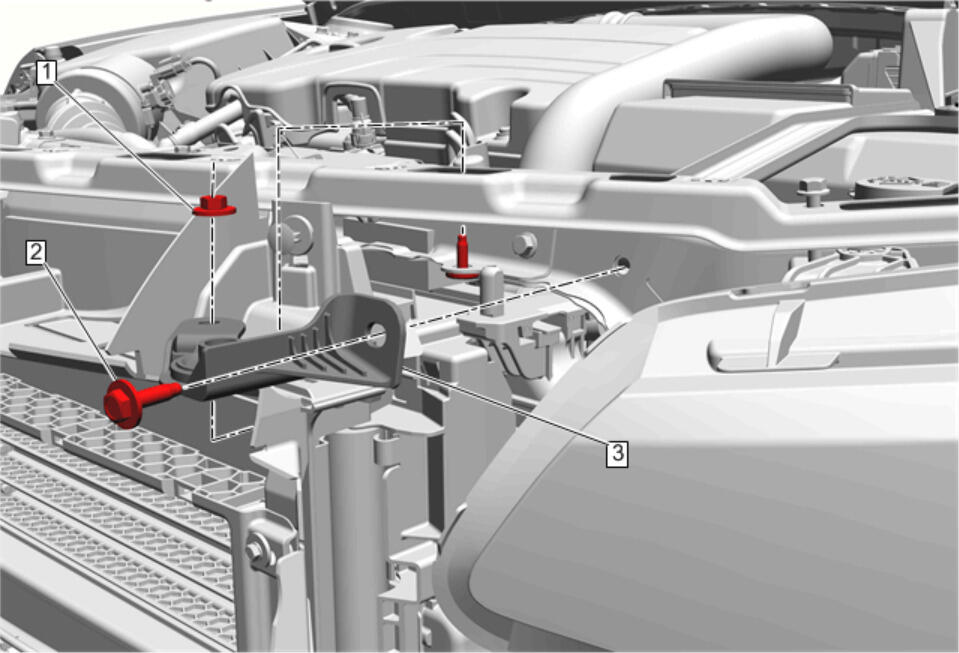

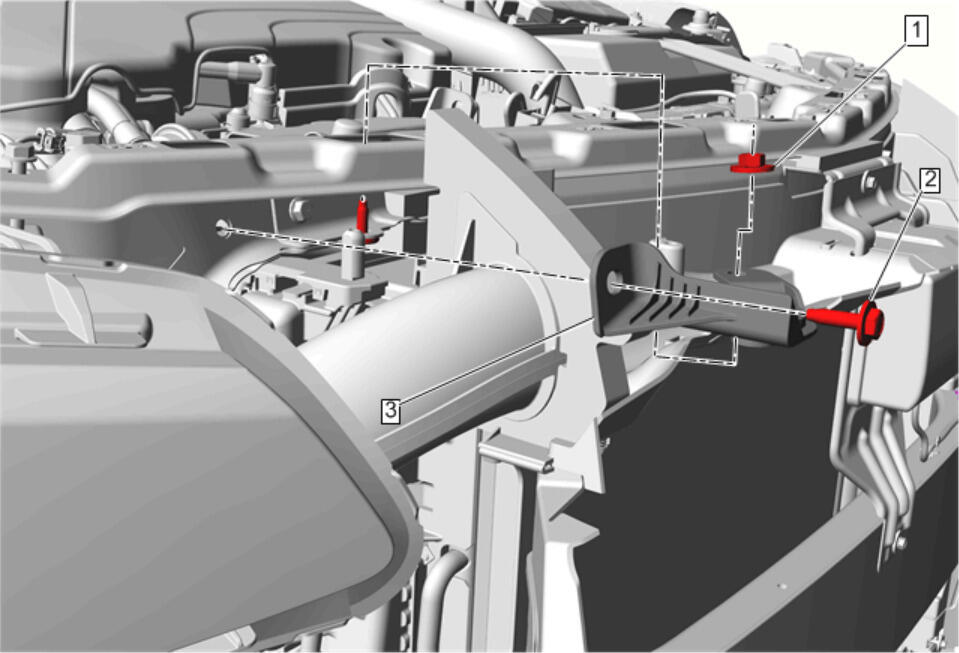

Radiator Upper Bracket - Right Side (3) - Install - Radiator Upper Bracket Replacement - Right Side (Front End Upper Tie Bar) , or Radiator Upper Bracket Replacement - Right Side (Upper Mounting Pin)
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket - Left Side (3) - Install - Radiator Upper Bracket Replacement - Left Side (Front End Upper Tie Bar) , or Radiator Upper Bracket Replacement - Left Side (Upper Mounting Pin)
Air Conditioning Condenser Bracket - Install - Air Conditioning Condenser Bracket Replacement (LTG) , or Air Conditioning Condenser Bracket Replacement (LFV)
Courtesy of GENERAL MOTORS COMPANY

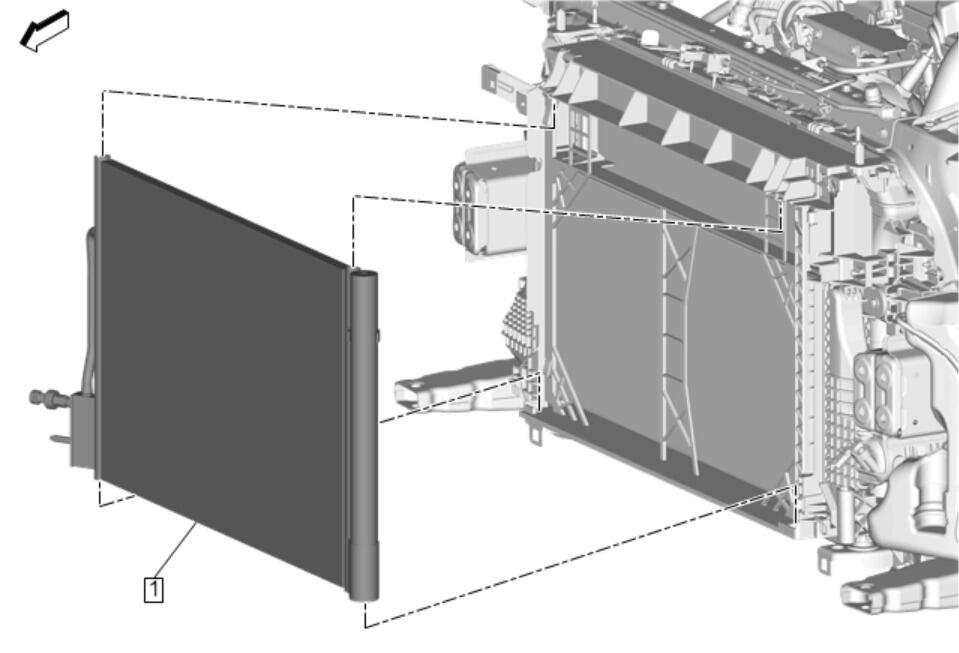

Air Conditioning Condenser (1) - Install - Air Conditioning Condenser Replacement (LTG) , or Air Conditioning Condenser Replacement (LFV)
Front Bumper Fascia Center Support - Install - Front Bumper Fascia Center Support Replacement
Fill the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
Start the engine and check for coolant leaks.
Fill the transmission to the proper level with the correct fluid. Transmission Fluid Level and Condition Check , and Adhesives, Fluids, Lubricants, and Sealers
Inspect for refrigerant leaks. Leak Testing (R-1234yf)
