Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Each individual front grille insert locking tab must be secure to each slot in the front bumper fascia prior to reassembly of the fascia to the vehicle.

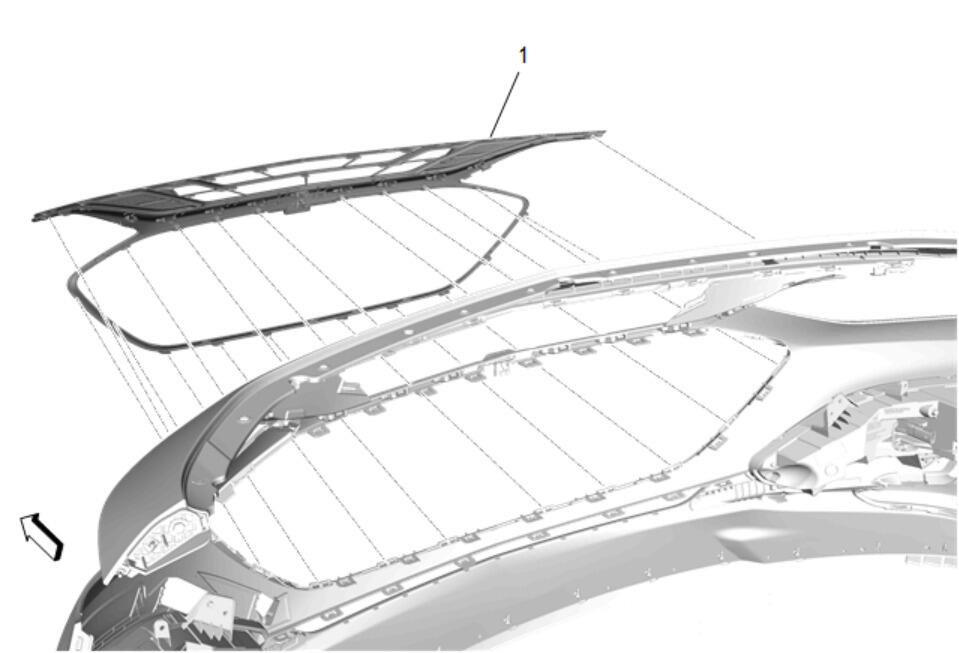

Front Grille Insert (1) - Install
Courtesy of GENERAL MOTORS COMPANY

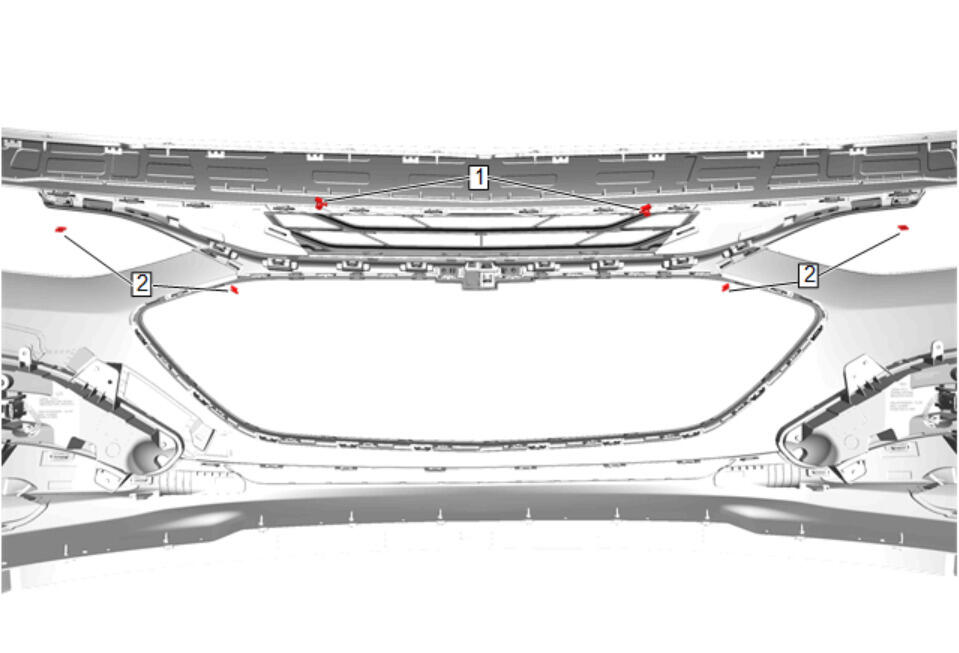

Front Grille Clip (2) - Install [4x]
Front Bumper Fascia Retainer (1) - Install [2x]
Front Grille - Install - Front Grille Replacement
