Front Grille Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

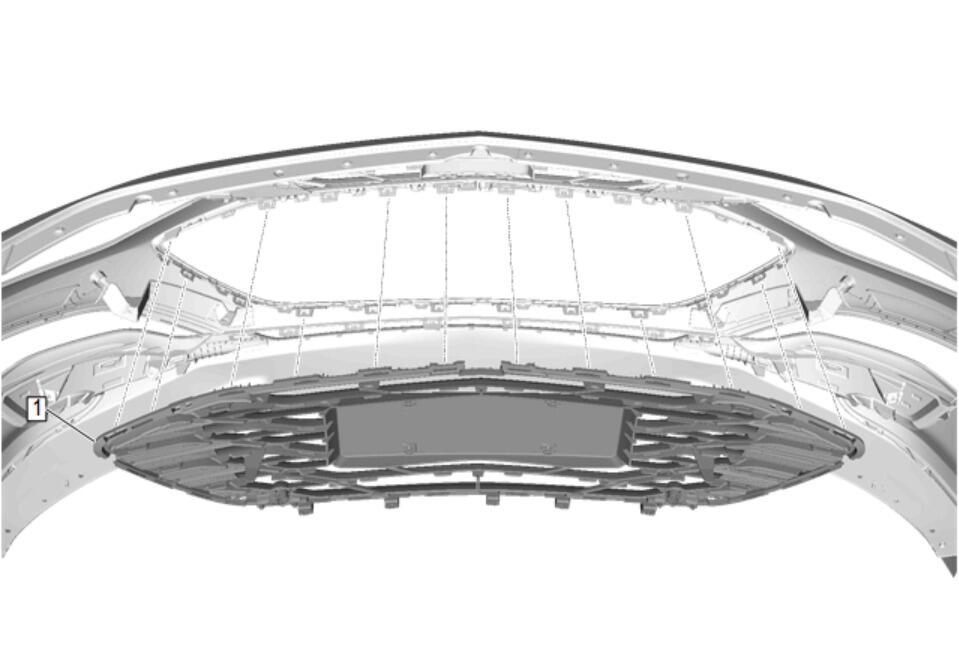

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Lower Stiffener Replacement Front Bumper Energy Absorber Replacement
1	Front Grille NOTE: Each individual front bumper fascia tab must be secure to each slot in the radiator grille prior to reassembly of the fascia to the vehicle. Procedure Place the bumper fascia face down on a clean protected surface. Disconnect and reposition harness as necessary. Using a suitable trim tool, release the locking tabs while carefully pulling the front grille from the front fascia. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Lower Stiffener Replacement
Front Bumper Energy Absorber Replacement

Front Grille

NOTE:

Each individual front bumper fascia tab must be secure to each slot in the radiator grille prior to reassembly of the fascia to the vehicle.

Procedure

Place the bumper fascia face down on a clean protected surface.
Disconnect and reposition harness as necessary.
Using a suitable trim tool, release the locking tabs while carefully pulling the front grille from the front fascia.
Transfer components as necessary.
