Driver or Passenger Seat Adjuster Switch Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

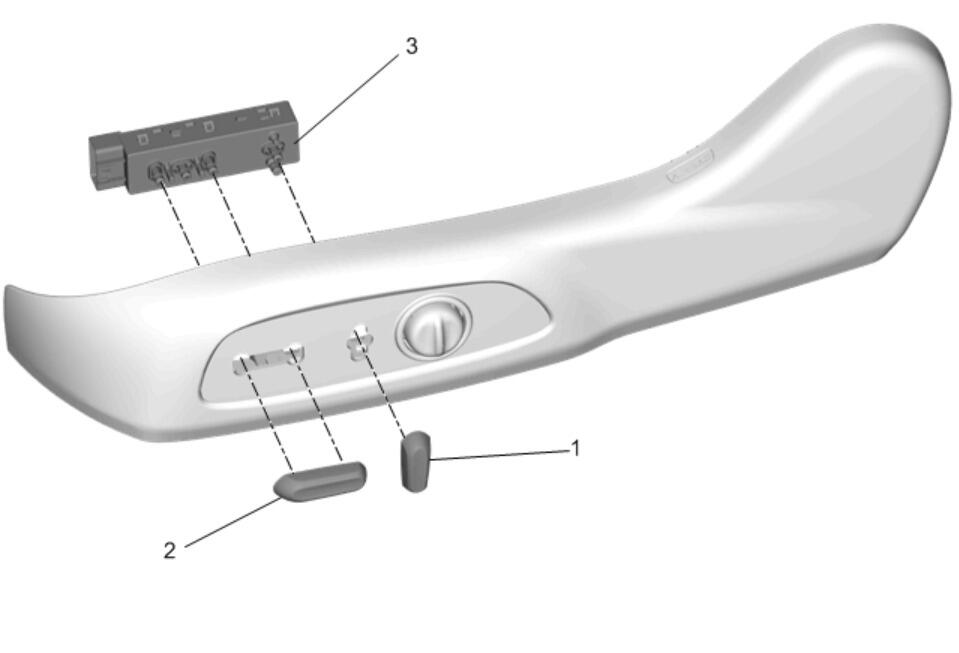

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Seat Cushion Outer Finish Cover Replacement (Manual)Front Seat Cushion Outer Finish Cover Replacement (Power) |
|
| 1 | Front Seat Recliner Knob |
| 2 | Front Seat Adjuster Knob |
| 3 | Driver or Passenger Seat Adjuster Switch Procedure Disconnect the electrical connector. |
