Rear Seat Heater Switch Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

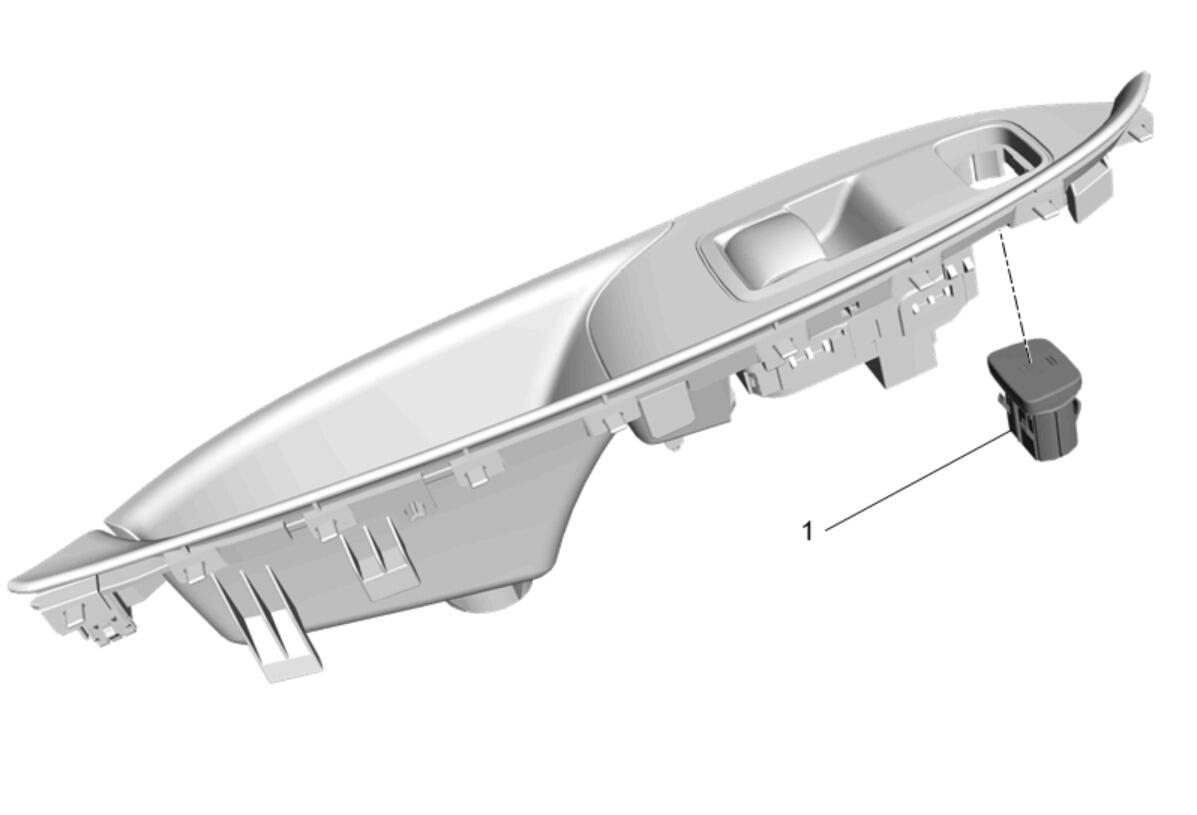

Callout	Component Name
Preliminary Procedure Rear Side Door Accessory Switch Mount Plate Replacement
1	Rear Seat Heater Switch Procedure Disconnect the electrical connector. Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch.

Callout

Component Name

Preliminary Procedure
Rear Side Door Accessory Switch Mount Plate Replacement

Rear Seat Heater Switch

Procedure

Disconnect the electrical connector.
Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch.
