Rear Seat Cushion Heater Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Seat Cushion Removal and Installation . Rear Seat Cushion Cover and Pad Replacement .

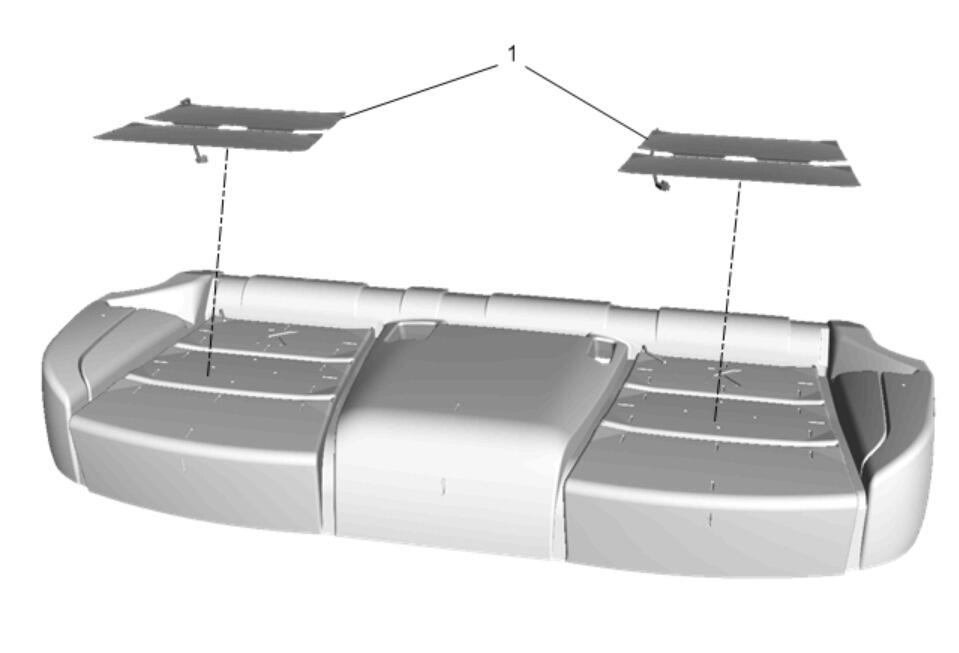

1	Rear Seat Cushion Heater Procedure Disconnect the electrical connector. Remove the heater element leaving the old adhesive strips intact on the seat cushion. The new seat heater adhesive strips will be placed over the old adhesive strips.

Callout

Component Name

Preliminary Procedures

Rear Seat Cushion Removal and Installation .
Rear Seat Cushion Cover and Pad Replacement .

Rear Seat Cushion Heater

Procedure

Disconnect the electrical connector.
Remove the heater element leaving the old adhesive strips intact on the seat cushion. The new seat heater adhesive strips will be placed over the old adhesive strips.
