Rear Seat Cushion Cover and Pad Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

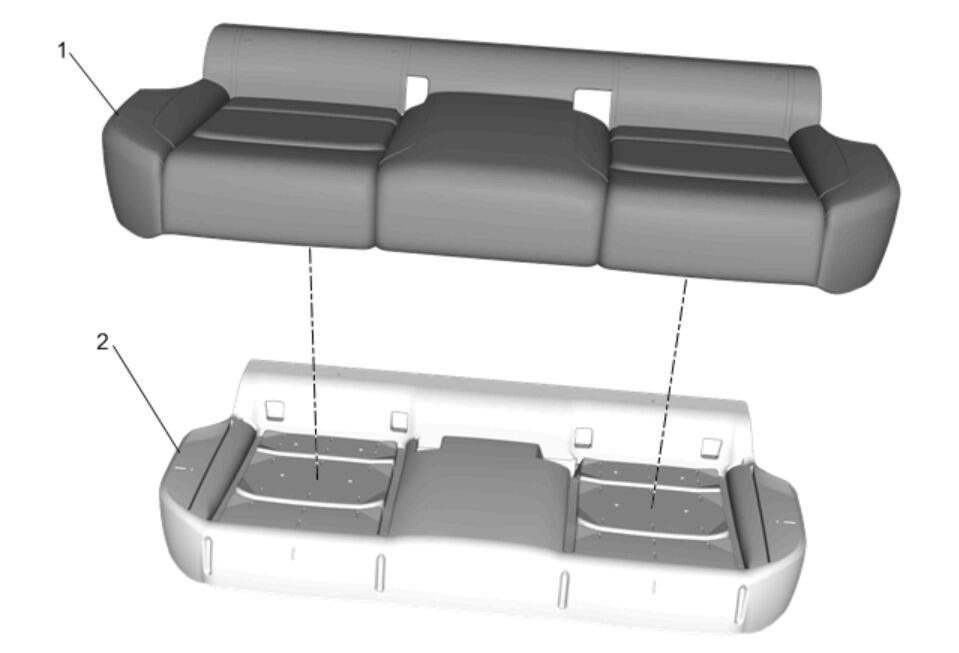

Callout	Component Name
Preliminary Procedure Rear Seat Cushion Removal and Installation
1	Rear Seat Cushion Cover Procedure Remove the hog rings that secure the rear seat cushion cover to the pad. Pull the cover away from the pad to disengage any retainers. NOTE: When installing the rear seat cushion cover, pull the cover tightly in all corners to ensure that no creasing occurs.
2	Rear Seat Cushion Pad

Callout

Component Name

Preliminary Procedure
Rear Seat Cushion Removal and Installation

Rear Seat Cushion Cover

Procedure

Remove the hog rings that secure the rear seat cushion cover to the pad.
Pull the cover away from the pad to disengage any retainers.

NOTE:

When installing the rear seat cushion cover, pull the cover tightly in all corners to ensure that no creasing occurs.

Rear Seat Cushion Pad
