Front Floor Console Insert Replacement

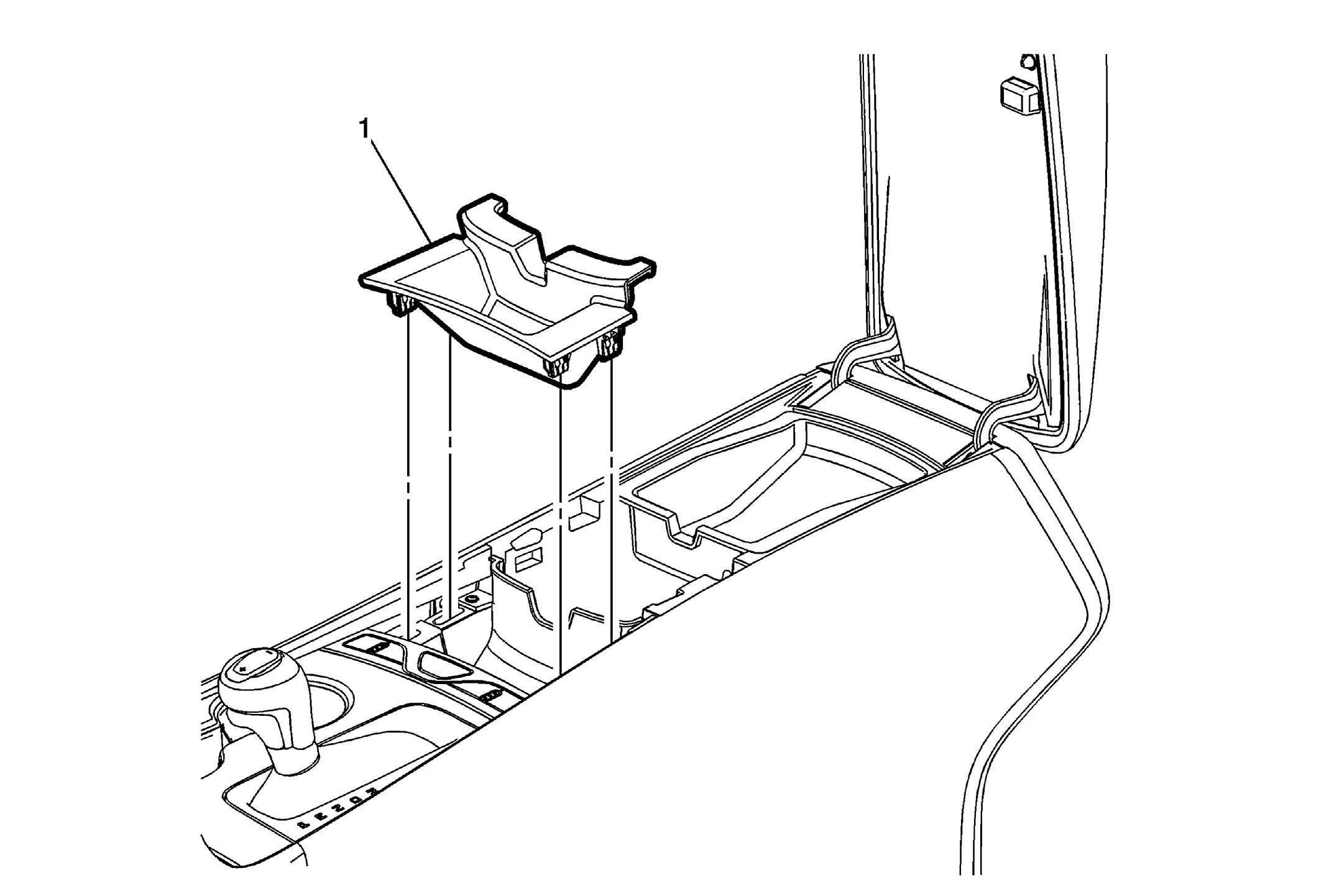

GM2895039

Callout

Component Name

Preliminary Procedure

Loosen the forward 10 retainers from the left front floor console extension panel. Refer to Front Floor Console Extension Replacement - Left Side .
Loosen the forward 10 retainers from the right front floor console extension panel. Refer to Front Floor Console Extension Replacement - Right Side .

1

Front Floor Console Insert
Procedure
Use a flat bladed plastic trim tool in order to release the retainers securing the console insert to the front floor console assembly.
