Instrument Panel Trim Plate Replacement

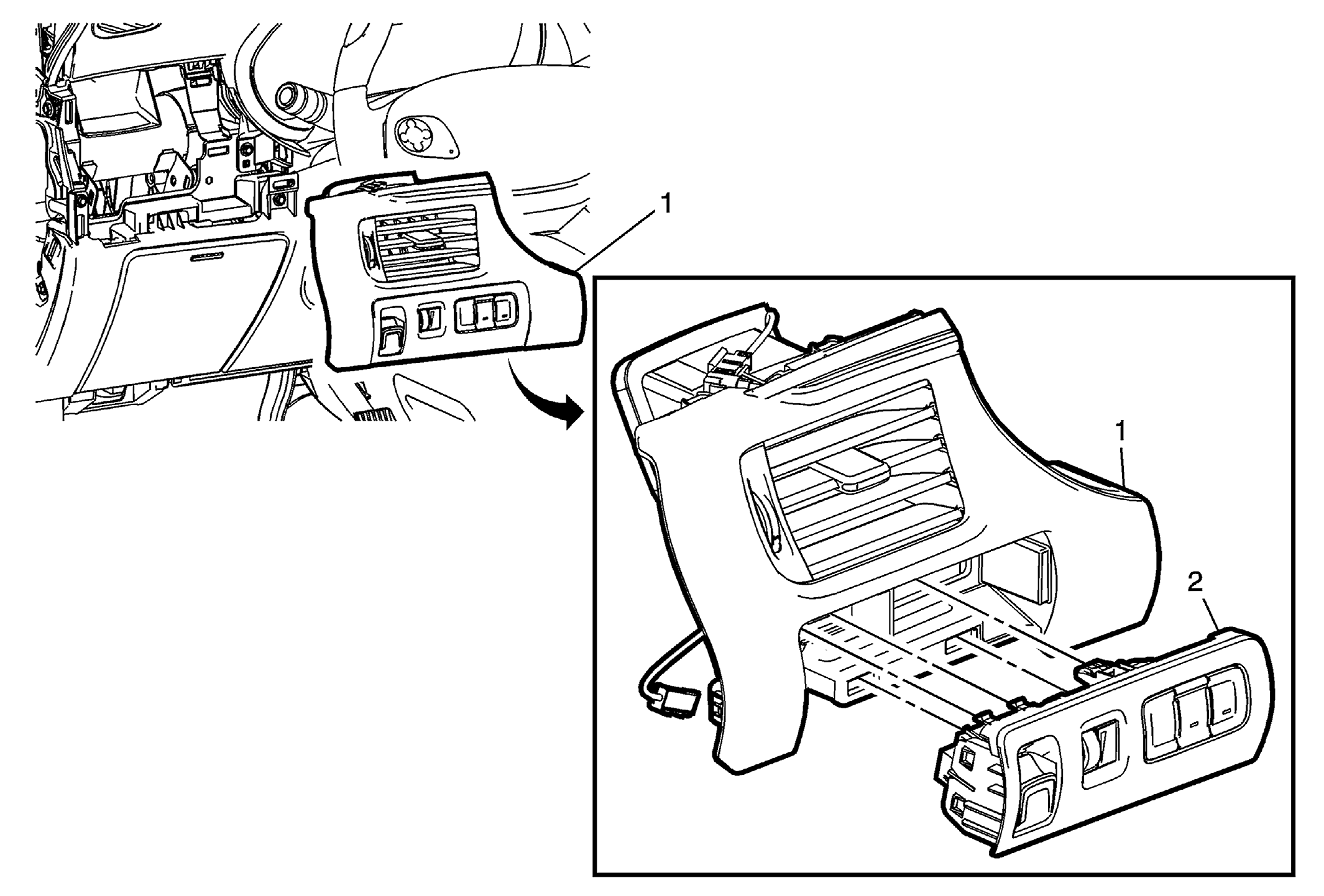

Callout	Component Name
1	Instrument Panel Trim Pad Refer to Instrument Panel Trim Pad Replacement .
2	Instrument Panel Trim Plate Procedures Depress the tabs and release the retainers securing the trim plate to the instrument panel trim pad. Transfer all necessary components.

Callout

Component Name

Instrument Panel Trim Pad
Refer to Instrument Panel Trim Pad Replacement .

Instrument Panel Trim Plate

Procedures

Depress the tabs and release the retainers securing the trim plate to the instrument panel trim pad.
Transfer all necessary components.
