Instrument Panel Accessory Bezel Replacement

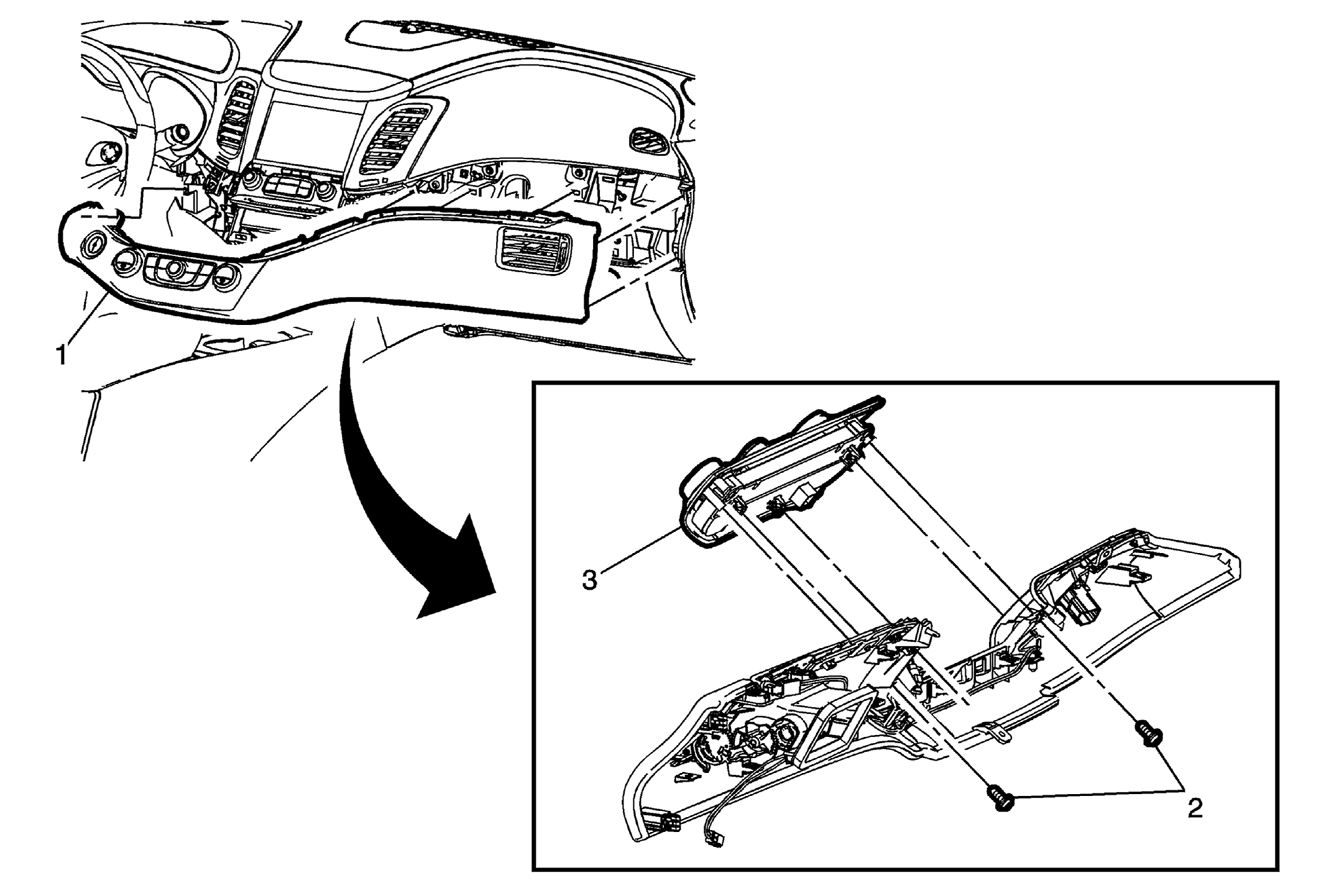

Callout	Component Name
1	Instrument Panel Center Trim Pad Refer to Instrument Panel Center Trim Pad Replacement .
2	Instrument Panel Accessory Bezel Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 1.2 N.m (11 lb in)
3	Instrument Panel Accessory Bezel Procedure Release the retainers securing the bezel to the instrument panel center trim pad. Transfer components as necessary.

Callout

Component Name

Instrument Panel Center Trim Pad
Refer to Instrument Panel Center Trim Pad Replacement .

Instrument Panel Accessory Bezel Bolt (Qty: 2)

CAUTION:

Tighten
1.2 N.m (11 lb in)

Instrument Panel Accessory Bezel

Procedure

Release the retainers securing the bezel to the instrument panel center trim pad.
Transfer components as necessary.
