Front Floor Console Compartment Door Replacement

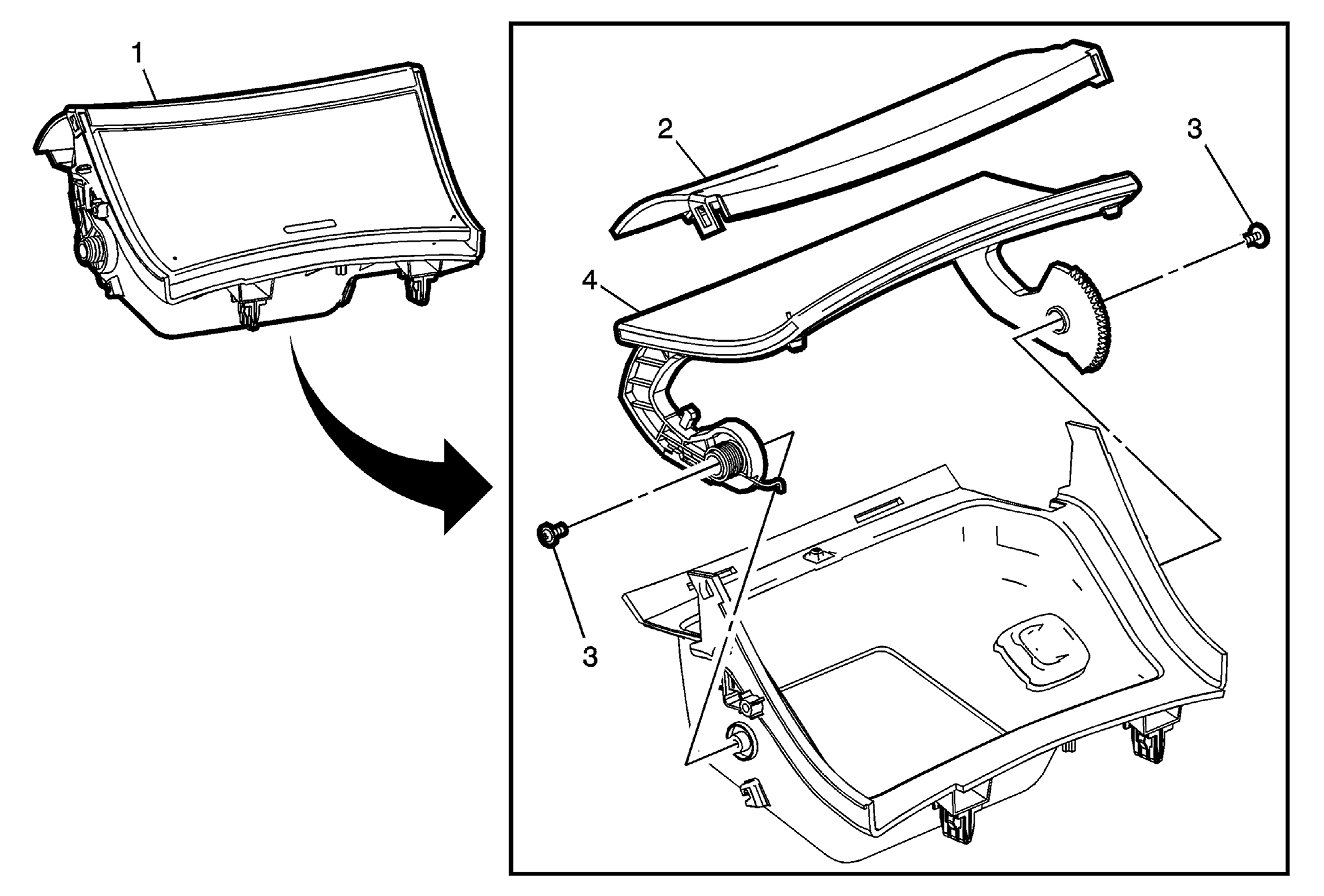

Callout	Component Name
1	Front Floor Console Front Compartment Refer to Front Floor Console Front Compartment Replacement (Without K4C) Front Floor Console Front Compartment Replacement (With K4C) .
2	Front Floor Console Front Compartment Trim Procedure Release the tabs securing the trim to the front floor console floor compartment.
3	Front Floor Console Compartment Door Screw (Qty: 2) CAUTION: Refer to Fastener Caution .
4	Front Floor Console Compartment Door Procedures Release the door spring from the front floor console front compartment. Inspect the spring for wear or damage and replace if necessary. When replacing the spring ensure that the spring is secured to the front compartment and the compartment door.
