Rear Window Upper Garnish Molding Replacement - Right Side

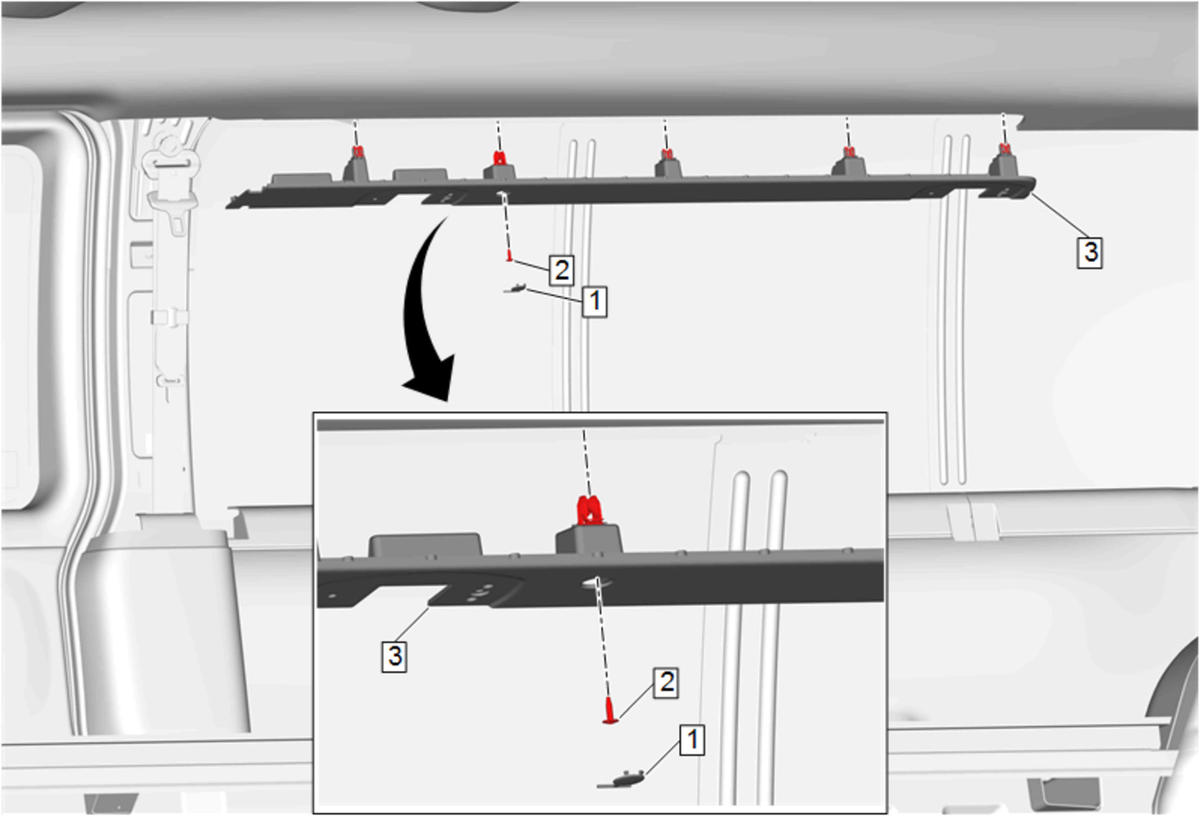

GM5152428Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disable the SIR system. SIR Disabling and Enabling
  2. Center Pillar Upper Garnish Molding Replacement - Right Side
1 Rear Window Upper Garnish Molding Cap
2 Rear Window Upper Garnish Molding Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
3 Rear Window Upper Garnish Molding -Right Side

Procedure

  1. Pull the trim panel toward the inside of the vehicle to disengage the integral retainers.
  2. Enable the SIR System. SIR Disabling and Enabling
