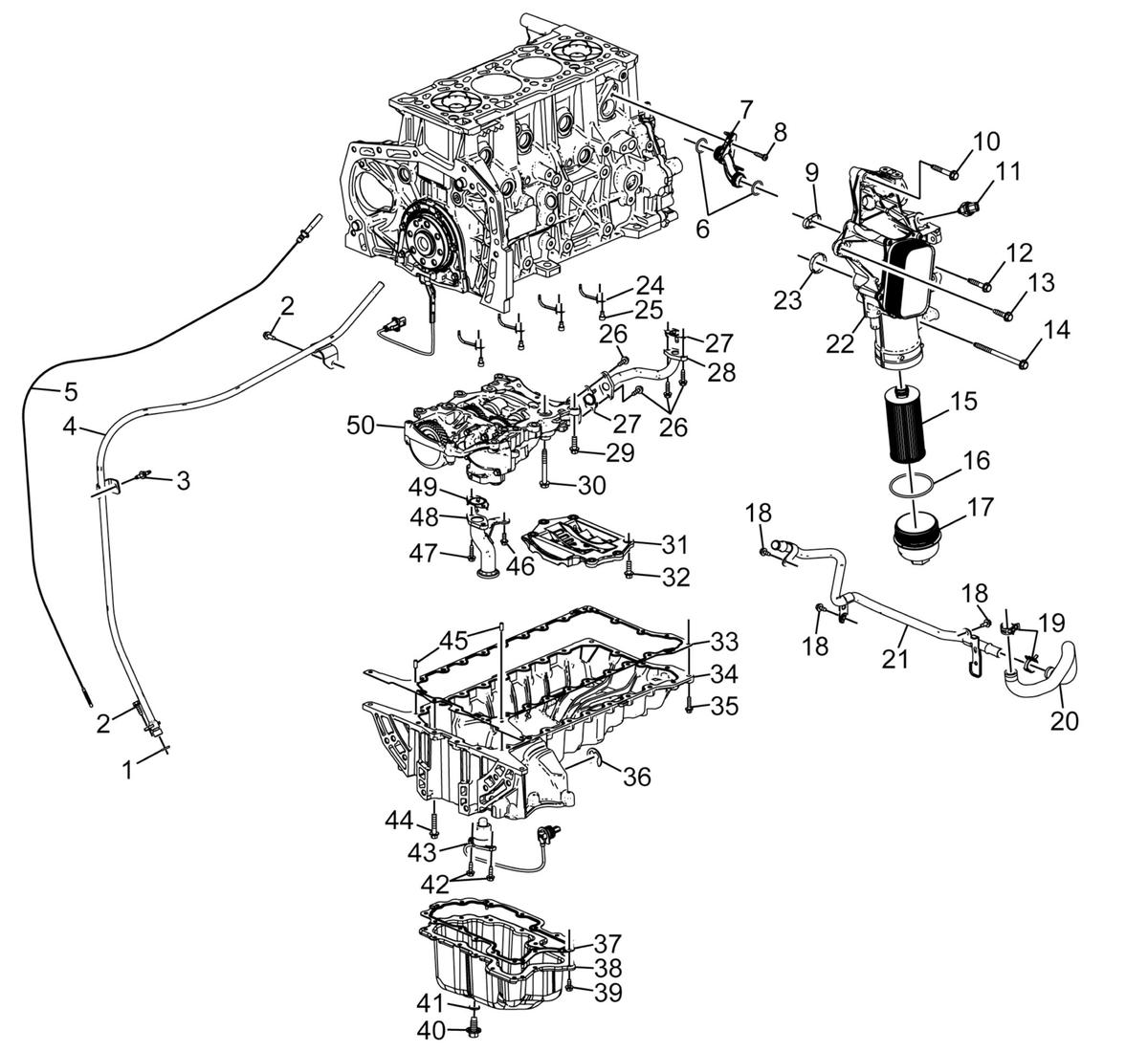

Oil Pan and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Oil Level Indicator Tube Seal |
| 2 | Oil Level Indicator Tube Bolt |
| 3 | Oil Level Indicator Tube Stud |
| 4 | Oil Level Indicator Tube |
| 5 | Oil Level Indicator |
| 6 | Engine Oil Cooler Pipe Seal [2x] |
| 7 | Engine Oil Cooler Pipe |
| 8 | Engine Oil Cooler Pipe Bolt |
| 9 | Oil Filter Gasket |
| 10 | Oil Filter Housing Bolt |
| 11 | Engine Oil Pressure Sensor |
| 12 | Oil Filter Housing Bolt |
| 13 | Oil Filter Housing Bolt |
| 14 | Oil Filter Housing Bolt |
| 15 | Oil Filter Element |
| 16 | Oil Filter Cap Seal |
| 17 | Oil Filter Adapter Cap |
| 18 | Engine Oil Cooler Inlet Pipe Bolt [3x] |
| 19 | Engine Oil Cooler Inlet Hose Clamp |
| 20 | Engine Oil Cooler Inlet Hose |
| 21 | Engine Oil Cooler Pipe |
| 22 | Oil Filter Housing |
| 23 | Oil Filter Gasket |
| 24 | Piston Oil Nozzle [4x] |
| 25 | Piston Oil Nozzle Bolt [4x] |
| 26 | Oil Pump Suction Pipe Bolt [4x] |
| 27 | Oil Pump Suction Pipe Gasket [2x] |
| 28 | Oil Pump Suction Pipe |
| 29 | Crankshaft Balancer Bolt [7x] |
| 30 | Crankshaft Balancer Bolt [4x] |
| 31 | Oil Pan Baffle |
| 32 | Oil Pan Baffle Bolt [6x] |
| 33 | Upper Oil Pan Gasket |
| 34 | Upper Oil Pan |
| 35 | Upper Oil Pan Bolt [24x] |
| 36 | Engine Oil Level Sensor Lead Clip |
| 37 | Lower Oil Pan Gasket |
| 38 | Lower Oil Pan Bolt [14x] |
| 39 | Lower Oil Pan |
| 40 | Oil Pan Drain Plug |
| 41 | Oil Pan Drain Plug Seal |
| 42 | Engine Oil Level Indicator Switch Bolt [2x] |
| 43 | Engine Oil Level Indicator Switch |
| 44 | Upper Oil Pan Bolt [4x] |
| 45 | Oil Pan Locating Pin [2x] |
| 46 | Oil Pump Suction Pipe Bolt |
| 47 | Oil Pump Suction Pipe Bolt [2x] |
| 48 | Oil Pump Suction Pipe |
| 49 | Oil Pump Suction Pipe Gasket |
| 50 | Crankshaft Balancer |
