Section 9 (Engine Mechanical - 2.8L (LWN) Diesel)
>>
Schematic Wiring Diagrams
>>
Engine Mechanical Wiring Schematics
>>

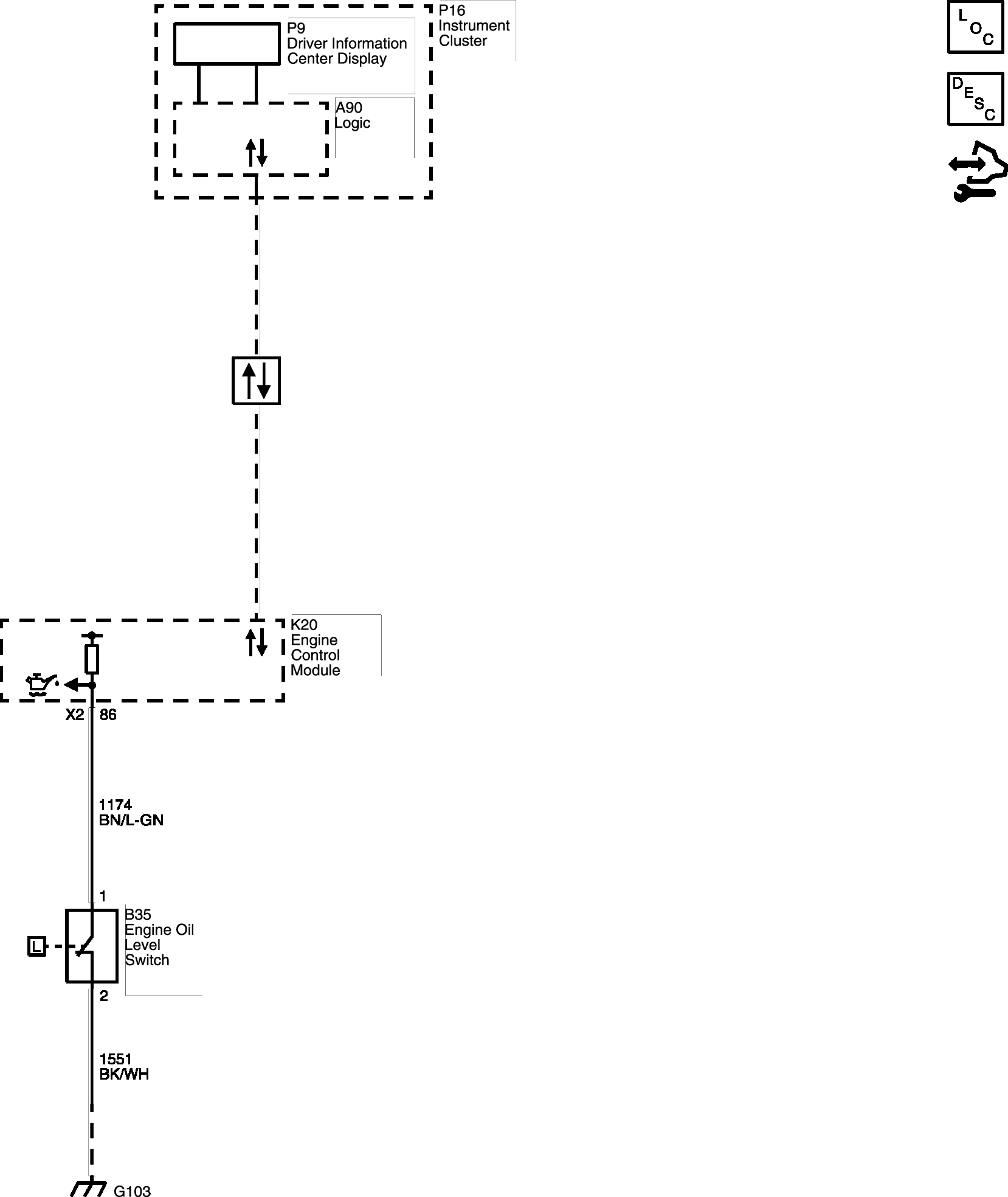

Engine Oil Level
Engine Oil Level
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
