Timing Belt Front Cover Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

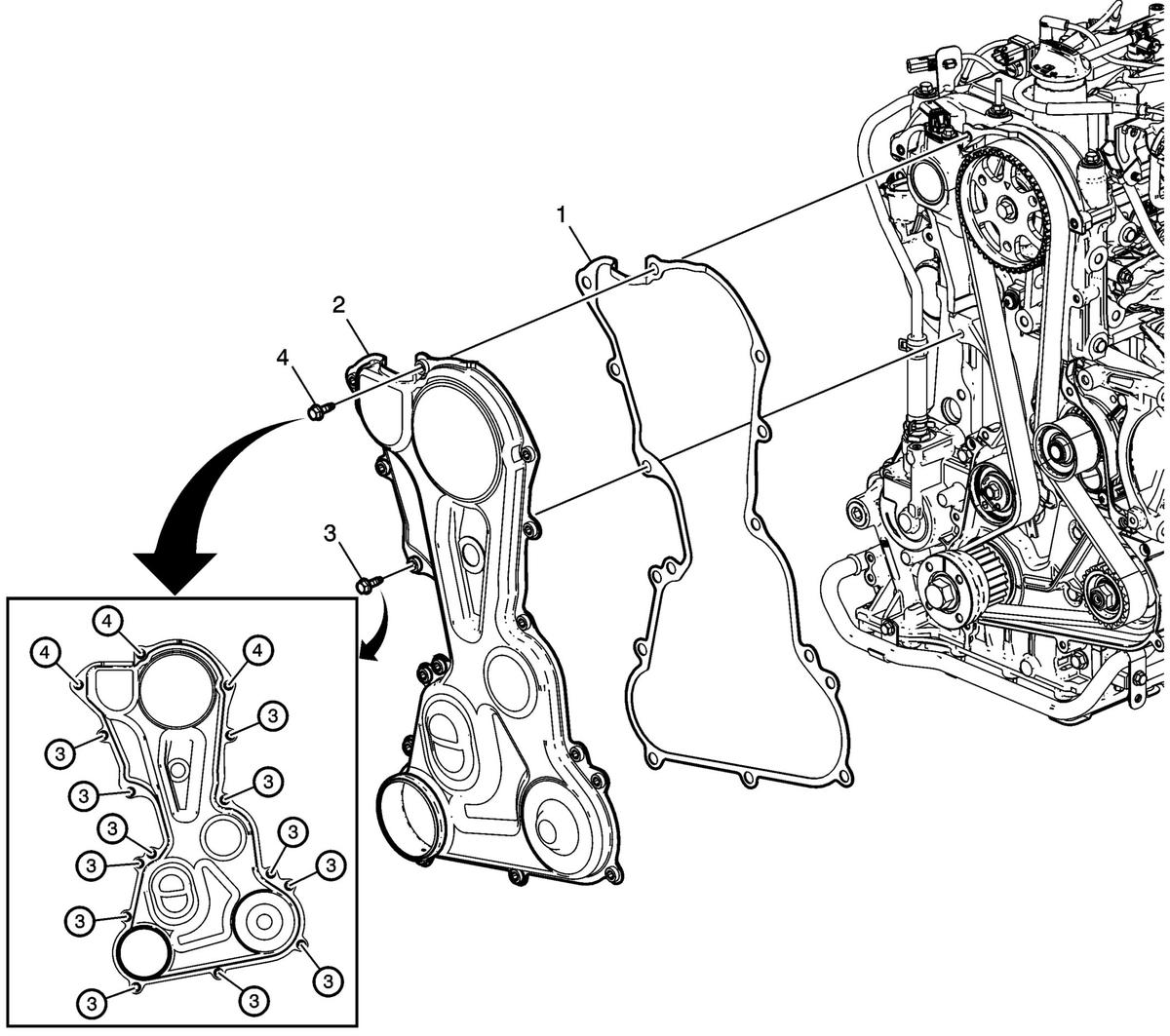

Callout	Component Name
1	Engine Front Cover Gasket NOTE: Use a NEW gasket.
2	Timing Belt Front Cover
3	Timing Belt Front Cover Bolt Procedure Install and hand tighten bolts. Use a 0.01 mm feeler gauge around crank sprocket to ensure timing belt front cover is not contacting crank sprocket. Tighten to specification as shown. CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
4	Timing Belt Front Cover Bolt CAUTION: Refer to Fastener Caution . Tighten 8 N.m (89 lb in)
