Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant

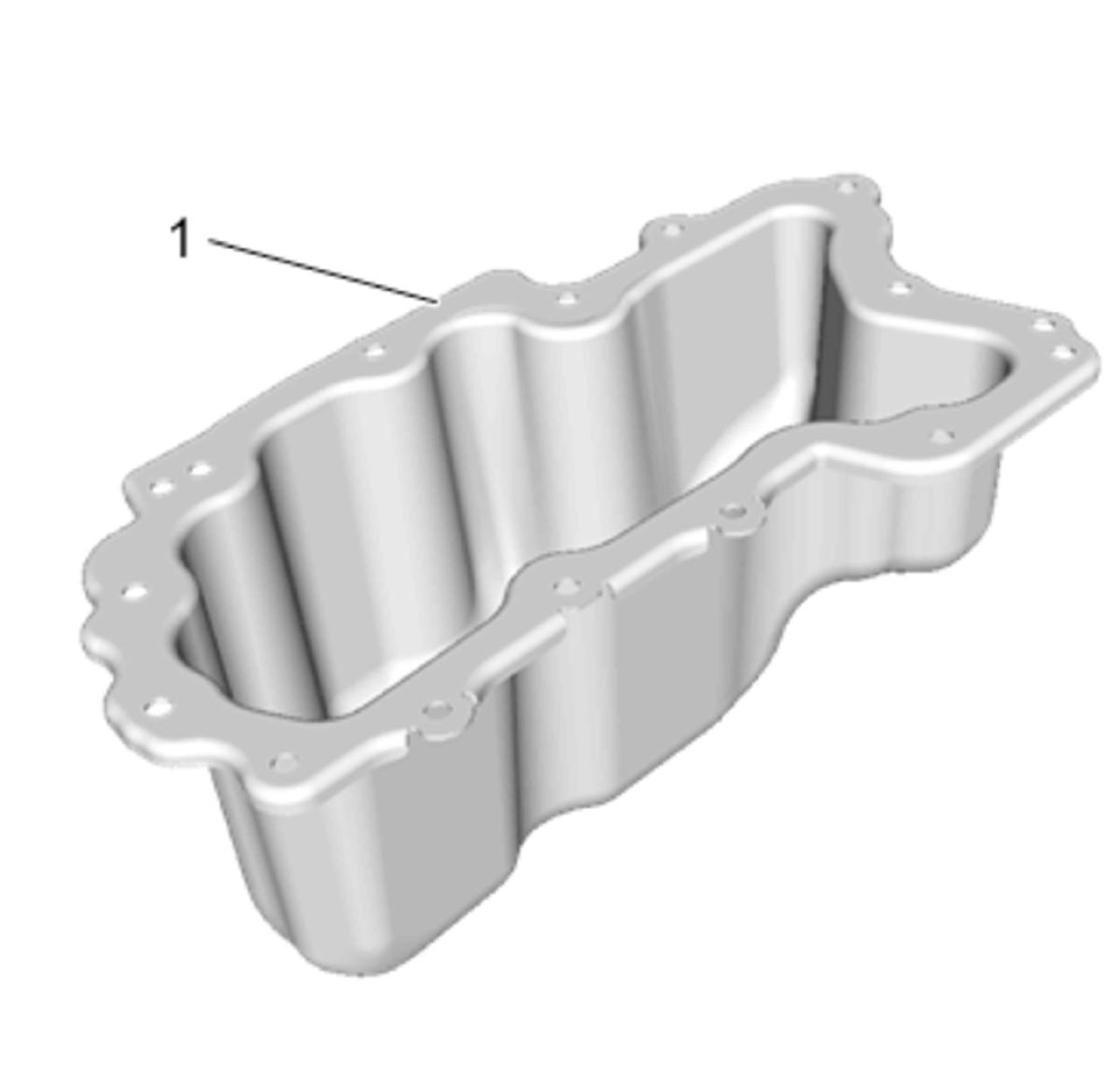

Apply a 5 mm (0.197 in) bead of sealant to the oil pan flange (1). Adhesives, Fluids, Lubricants, and Sealers
Courtesy of GENERAL MOTORS COMPANY

Lower Oil Pan (2) - Install
Lower Oil Pan Bolt (1) - Loosely install [14x]

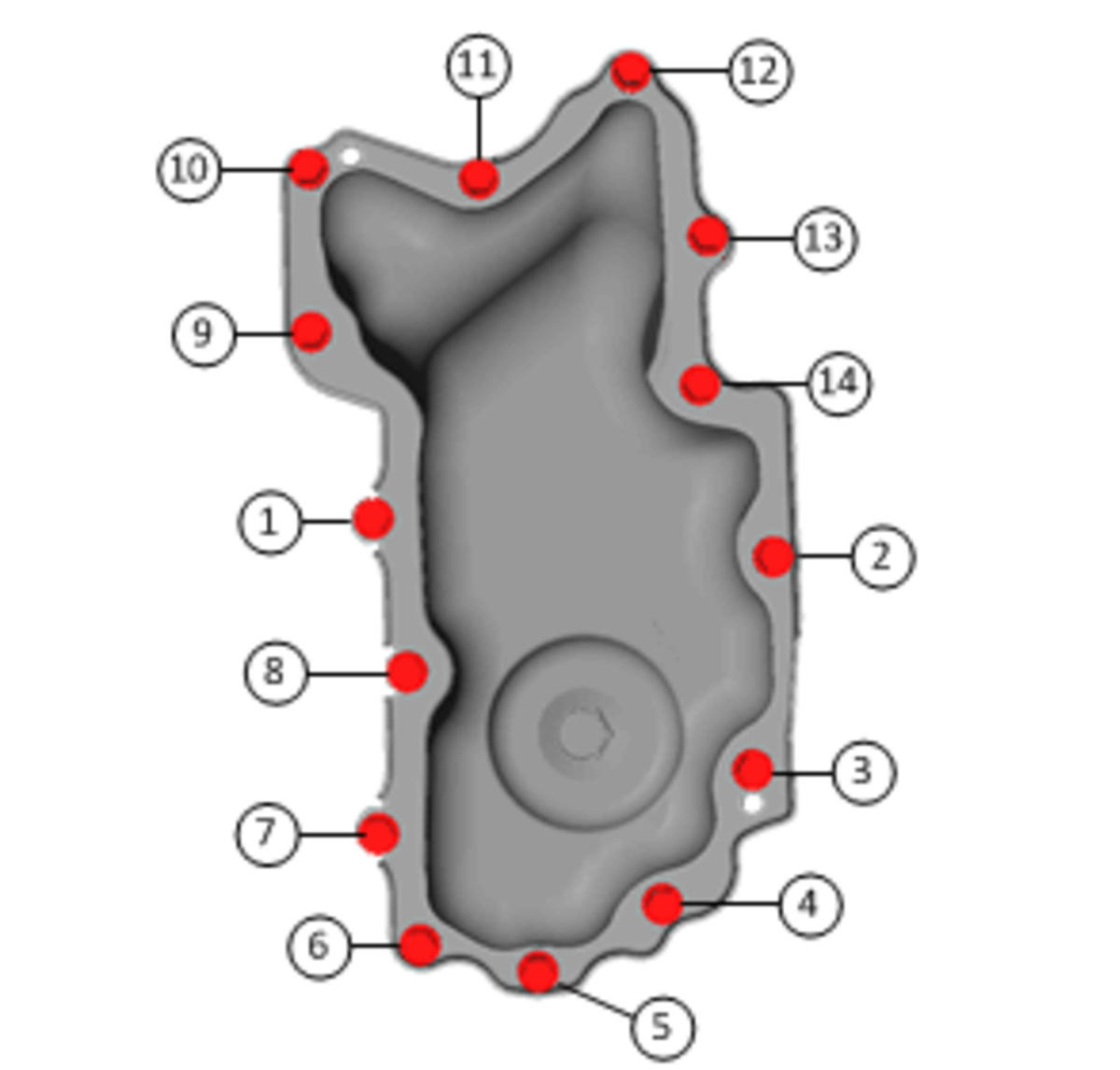

Fig 1: Lower Oil Pan Bolt Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Tighten the bolts in the sequence shown. 13 N.m (115 lb in)
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) - Connect
Change the engine oil and filter. Engine Oil and Oil Filter Replacement
