Engine Oil Cooler Inlet Pipe Removal

WARNING: This page is about a different variant/trim than selected.

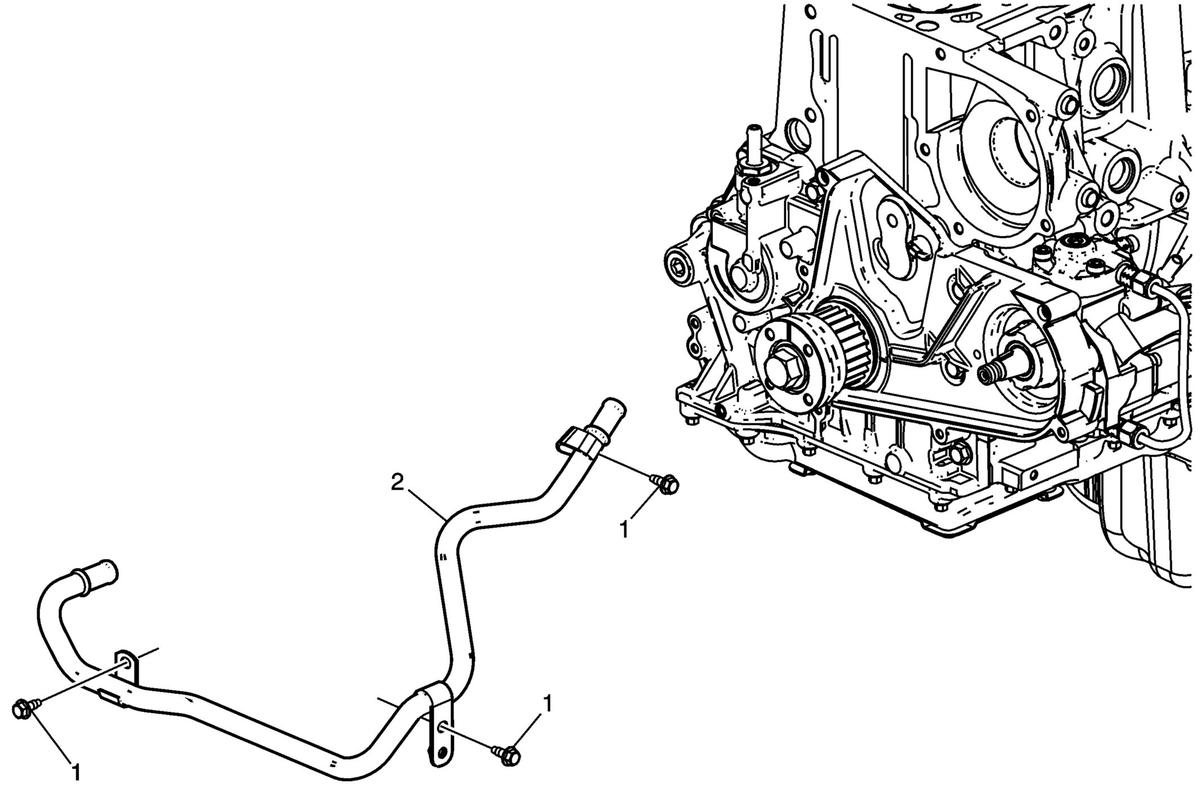

GM4087239Courtesy of GENERAL MOTORS COMPANY
Engine Oil Cooler Inlet Pipe Removal

Callout Component Name
1 Engine Oil Cooler Inlet Pipe Bolt
2 Engine Oil Cooler Inlet Pipe
