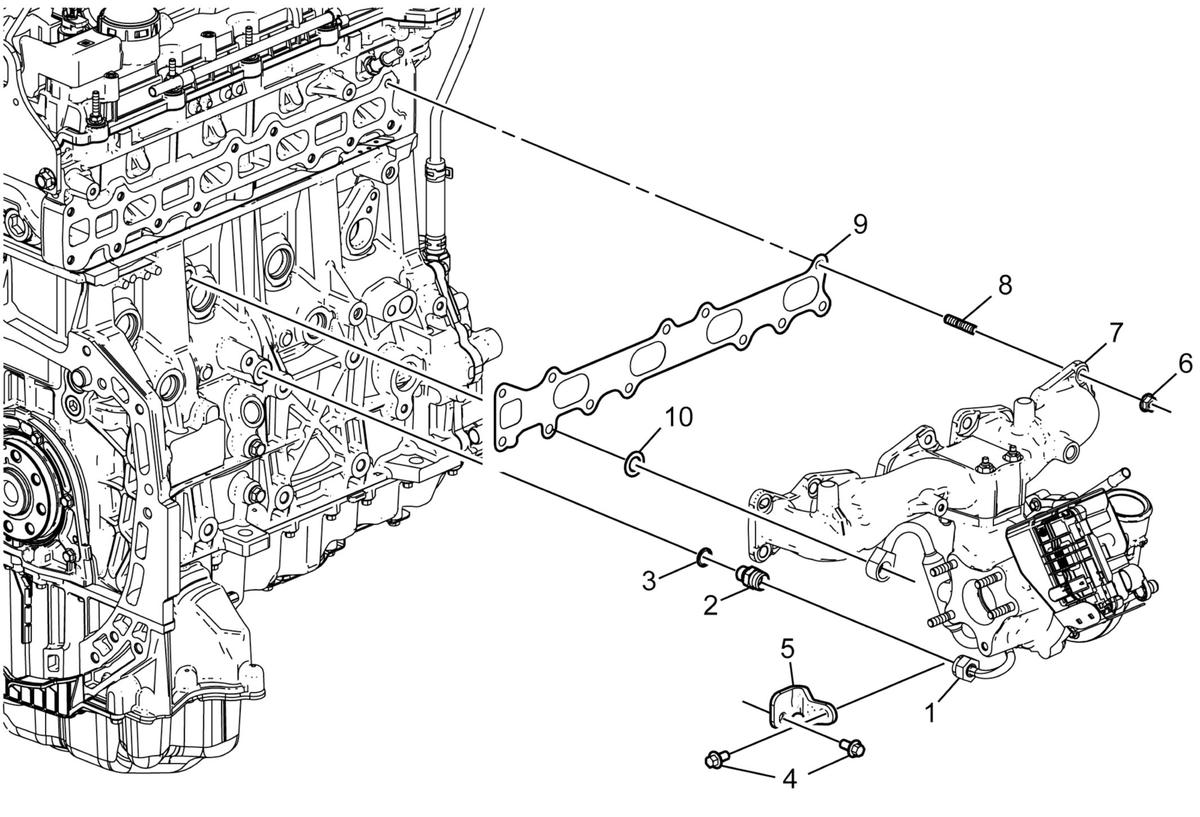

Exhaust Manifold and Turbocharger Assembly Removal
| Callout | Component Name |
|---|---|
| 1 | Turbocharger Oil Feed Pipe Fitting |
| 2 | Turbocharger Oil Feed Pipe Fitting Adapter |
| 3 | Turbocharger Oil Feed Pipe Washer |
| 4 | Turbocharger Brace Bolt |
| 5 | Turbocharger Brace |
| 6 | Exhaust Manifold Nut |
| 7 | Exhaust Manifold and Turbocharger Assembly |
| 8 | Exhaust Manifold Stud |
| 9 | Exhaust Manifold Gasket
NOTE:
Discard gasket, it is not reusable. |
| 10 | Turbocharger Coolant Feed and Return Pipe Washer
NOTE:
Discard washer, it is not reusable. |
