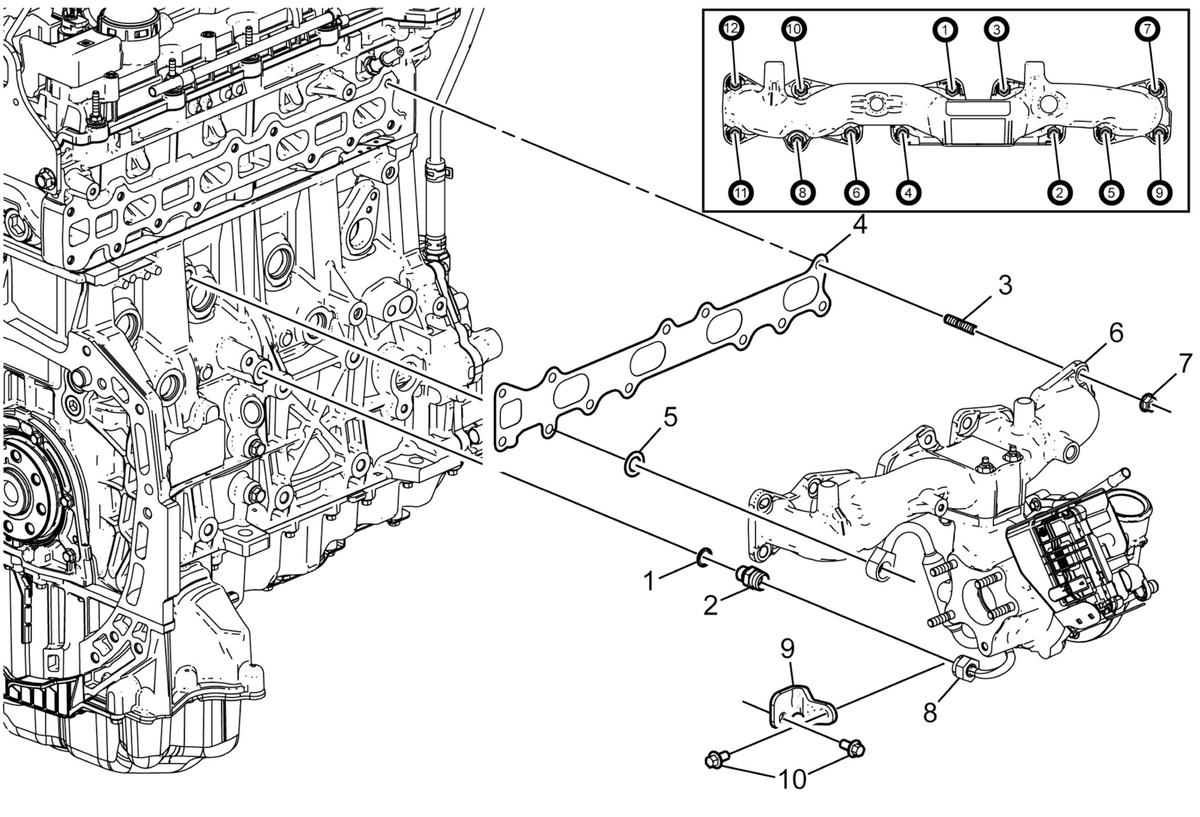

Exhaust Manifold and Turbocharger Assembly Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Turbocharger Oil Feed Pipe Washer
2	Turbocharger Oil Feed Pipe Fitting Adapter CAUTION: Refer to Fastener Caution . Tighten 54 N.m (40 lb ft)
3	Exhaust Manifold Stud
4	Exhaust Manifold Gasket NOTE: Use a NEW gasket.
5	Turbocharger Coolant Feed and Return Pipe Washer Tighten 36 N.m (27 lb ft)
6	Exhaust Manifold and Turbocharger Assembly
7	Exhaust Manifold Nut Tighten First pass at 12 N.m (106 lb in) Final pass at 32 N.m (24 lb ft)
8	Turbocharger Oil Feed Pipe Fitting Tighten 32 N.m (24 lb ft)
9	Turbocharger Brace
10	Turbocharger Brace Bolt Tighten 32 N.m (24 lb ft)
