Engine Oil Cooler and Coolant Hose Clamp Removal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

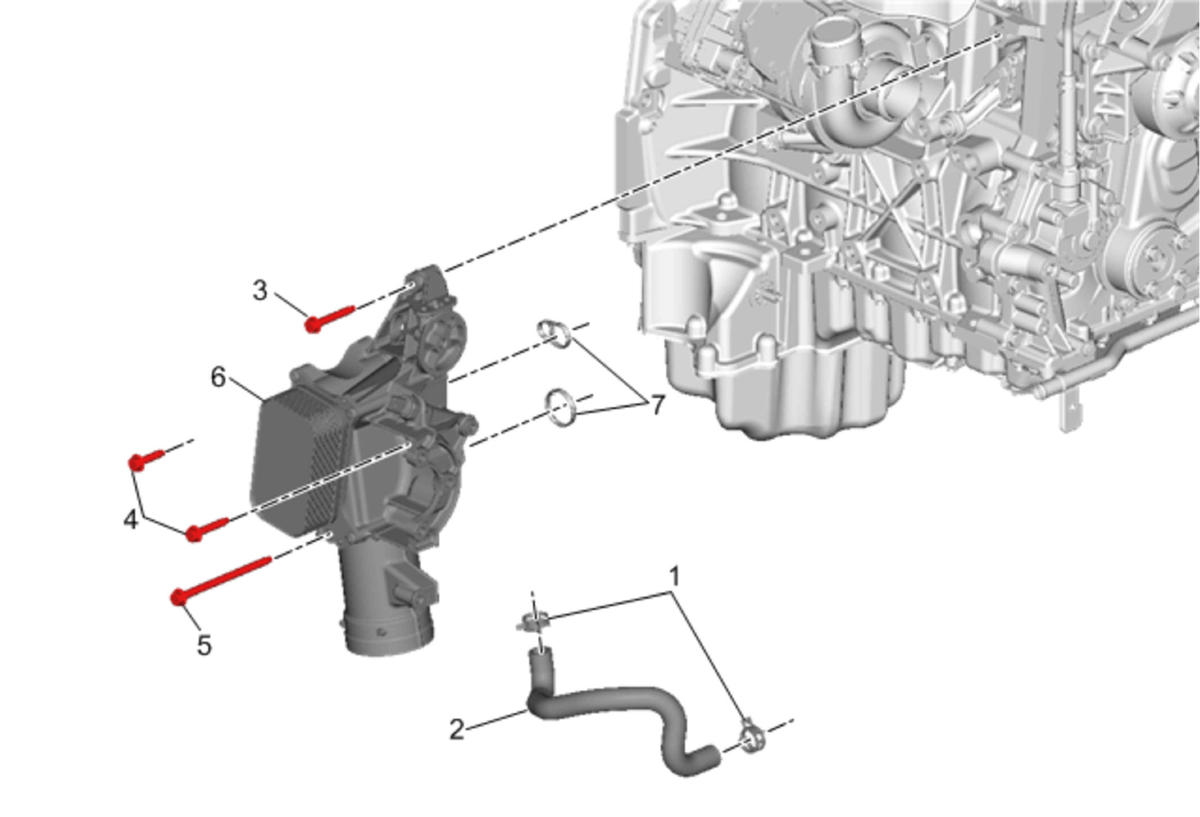

Engine Oil Cooler and Coolant Hose Clamp Removal
| Callout |
Component Name |
| 1 |
Engine Oil Cooler Inlet Hose Clamp |
| 2 |
Engine Oil Cooler Inlet Hose |
| 3 |
Engine Oil Cooler Bolt |
| 4 |
Engine Oil Cooler Bolt |
| 5 |
Engine Oil Cooler Bolt |
| 6 |
Engine Oil Cooler |
| 7 |
Oil Filter Gasket
NOTE:
Discard gasket, it is not reusable.
|
