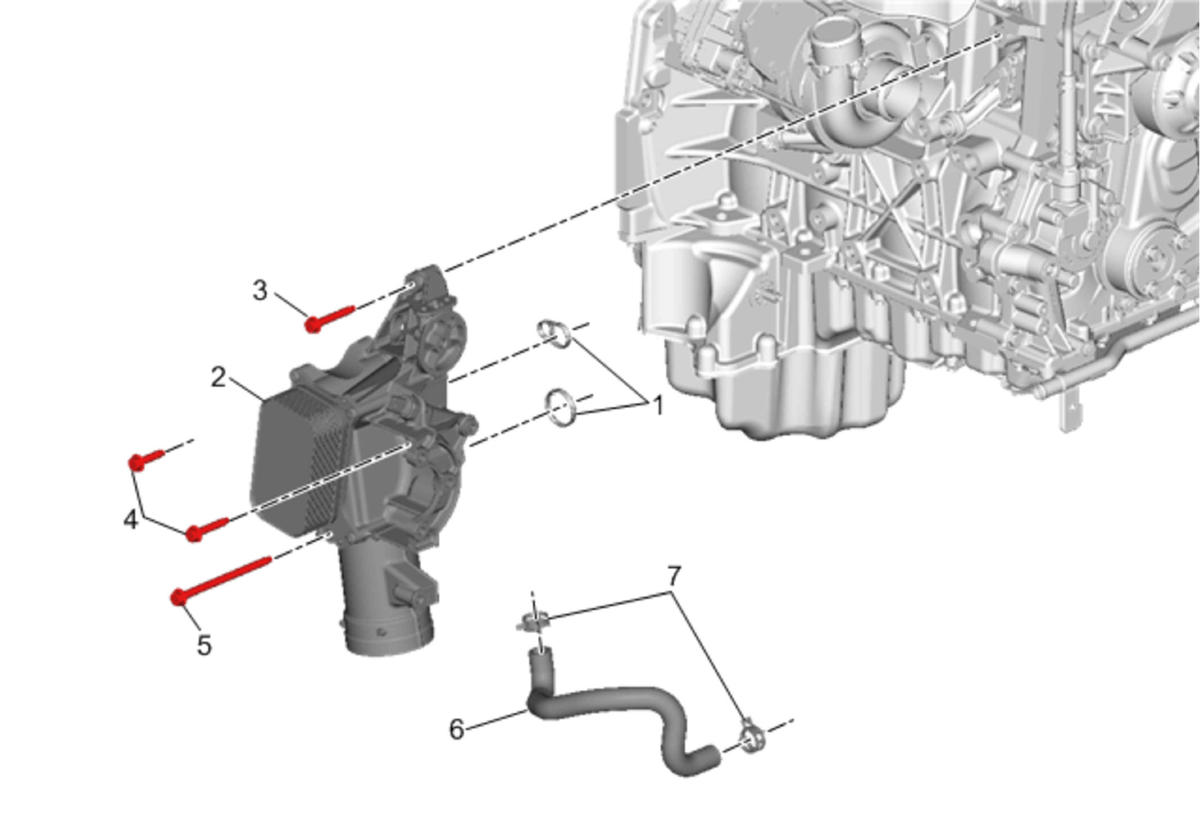

Engine Oil Cooler and Coolant Hose Installation
| Callout | Component Name |
|---|---|
| 1 | Oil Filter Gasket
NOTE:
Install NEW gaskets. They are not reusable. |
| 2 | Engine Oil Cooler |
| 3 | Engine Oil Cooler Bolt
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 4 | Engine Oil Cooler Bolt Tighten 25 N.m (18 lb ft) |
| 5 | Engine Oil Cooler Bolt Tighten 25 N.m (18 lb ft) |
| 6 | Engine Oil Cooler Inlet Hose |
| 7 | Engine Oil Cooler Inlet Hose Clamp |
