Section 9 (Engine Mechanical - 2.8L (LWN) Diesel)
>>
Repair Instructions
>>
Engine Cooling Fan Bracket Removal
>>
Engine Coolant Fan Bracket Removal
Engine Coolant Fan Bracket Removal
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY

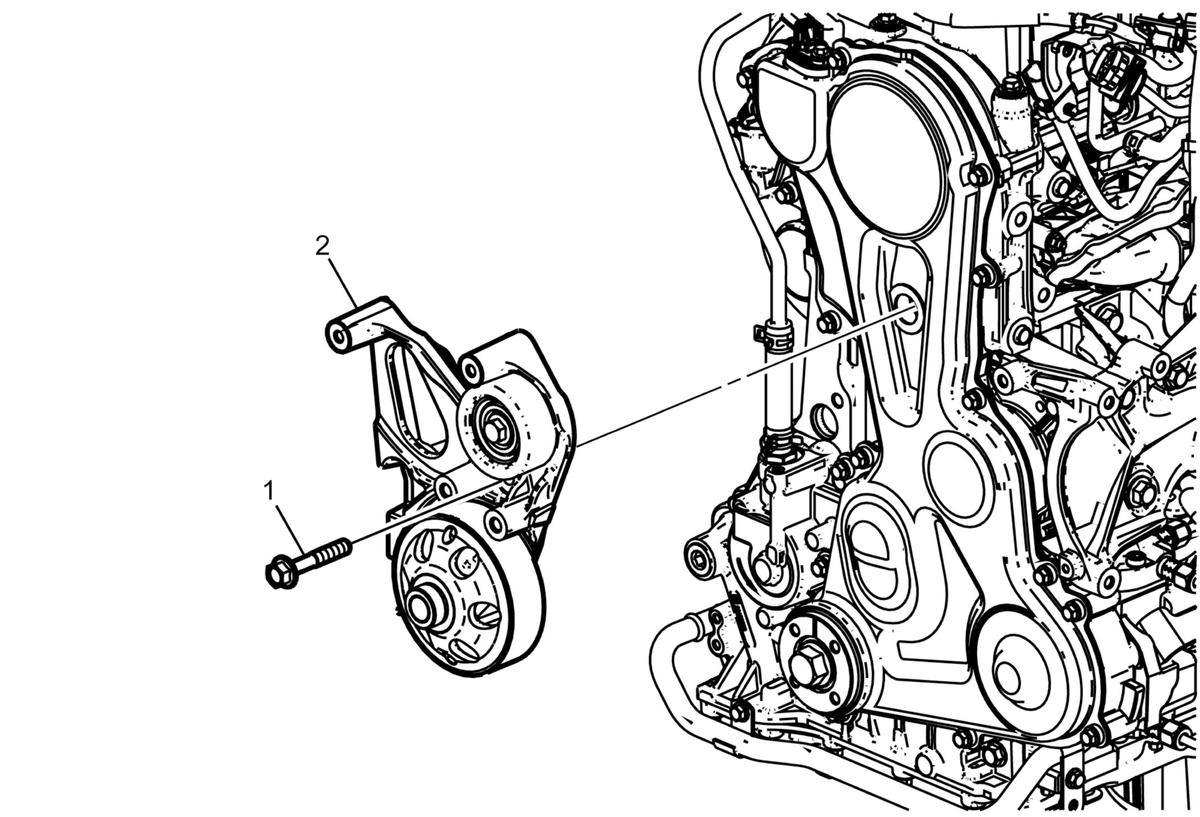

Callout
Component Name
1
Engine Coolant Fan Bracket Bolt
2
Engine Coolant Fan Bracket
Courtesy of GENERAL MOTORS COMPANY
