Crankshaft and Bearing Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
The number 3 main bearing cap can be loosened by installing a drift punch to the main cap bolt bore and working back and forth toward the left and right sides of the engine.

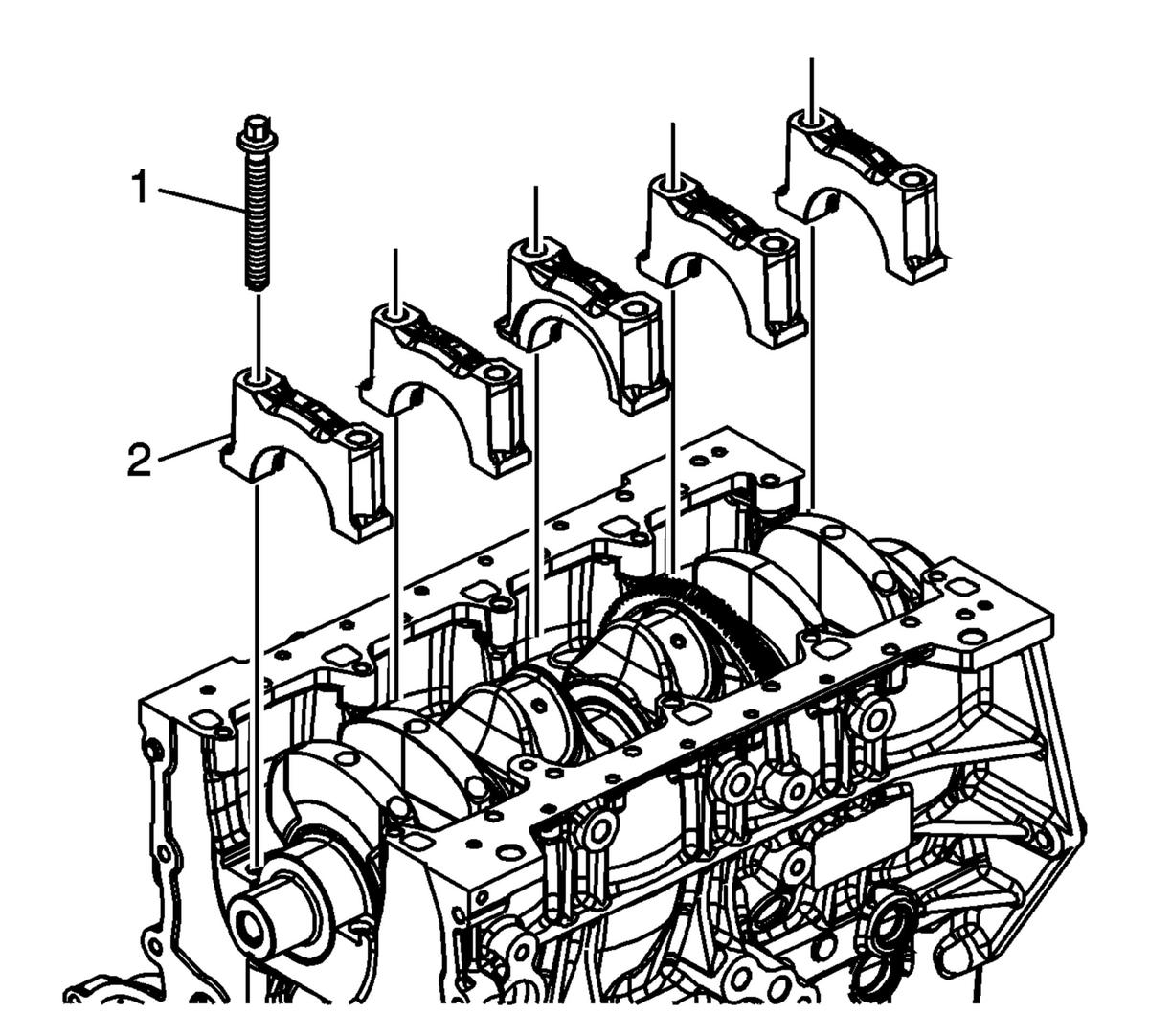

Remove the crankshaft bearing cap bolts (1) and caps (2).
Courtesy of GENERAL MOTORS COMPANY

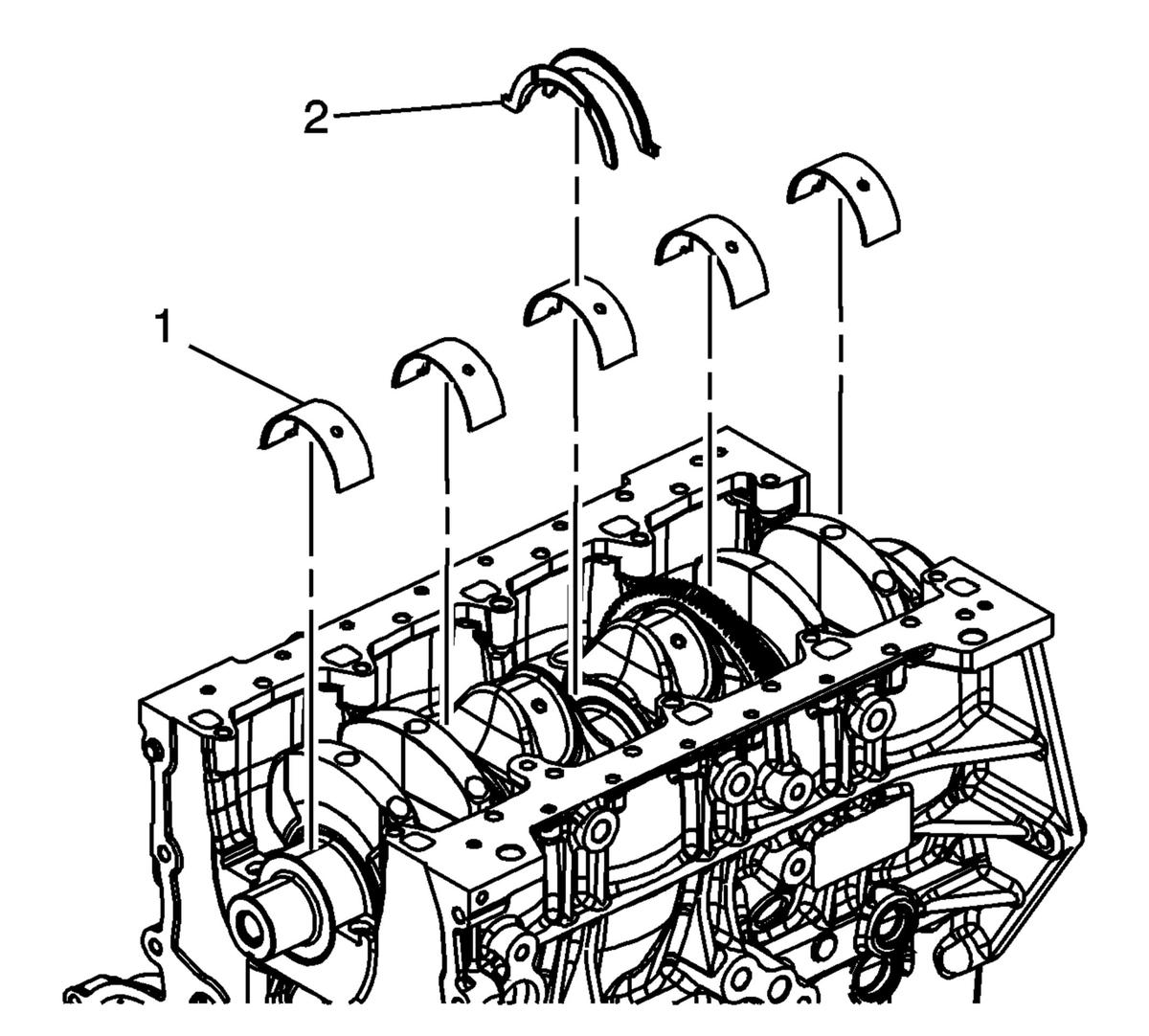

Remove the lower thrust bearings (2).
Remove the lower crankshaft bearings (1).
Courtesy of GENERAL MOTORS COMPANY

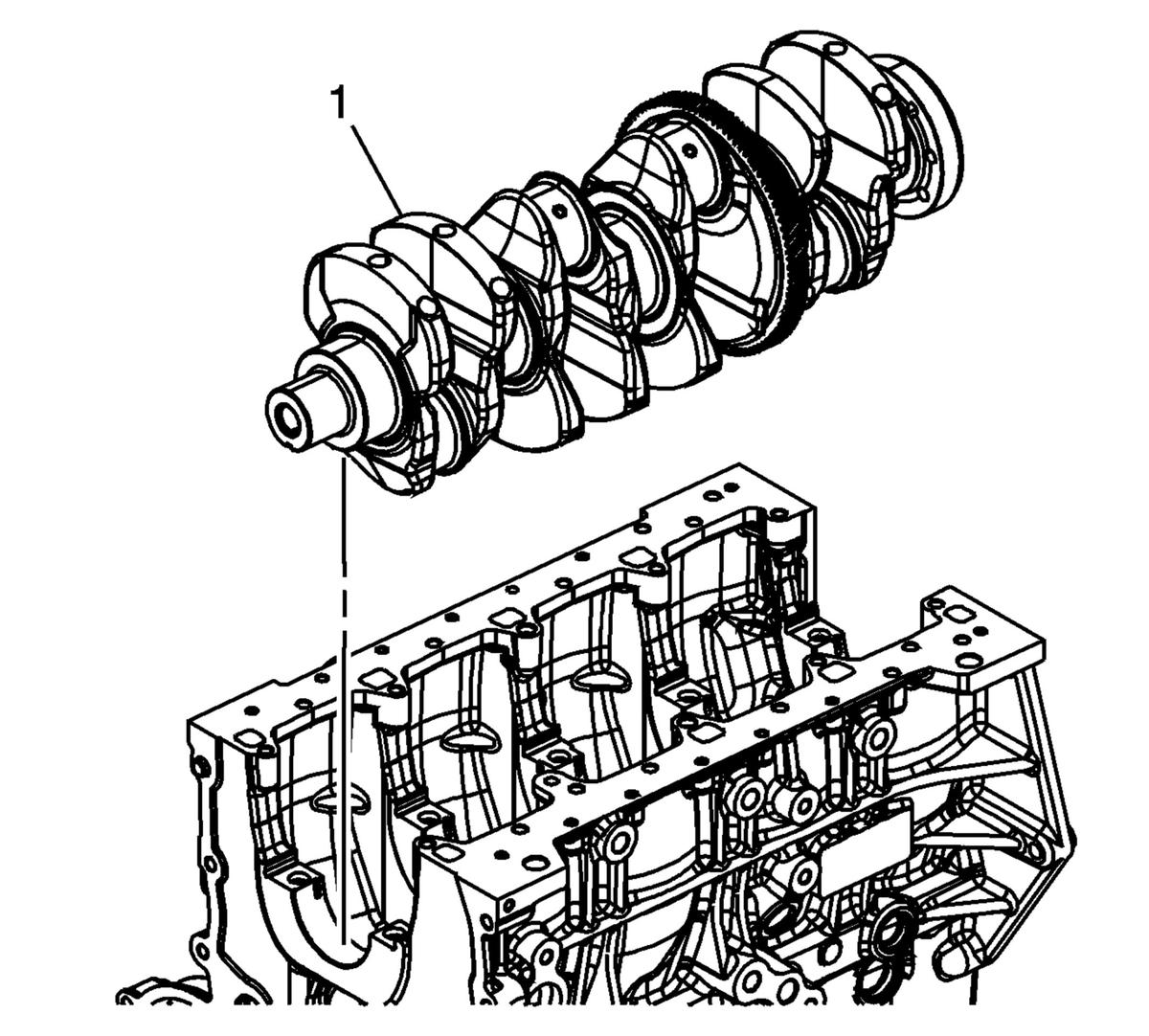

Remove the crankshaft (1).
Courtesy of GENERAL MOTORS COMPANY

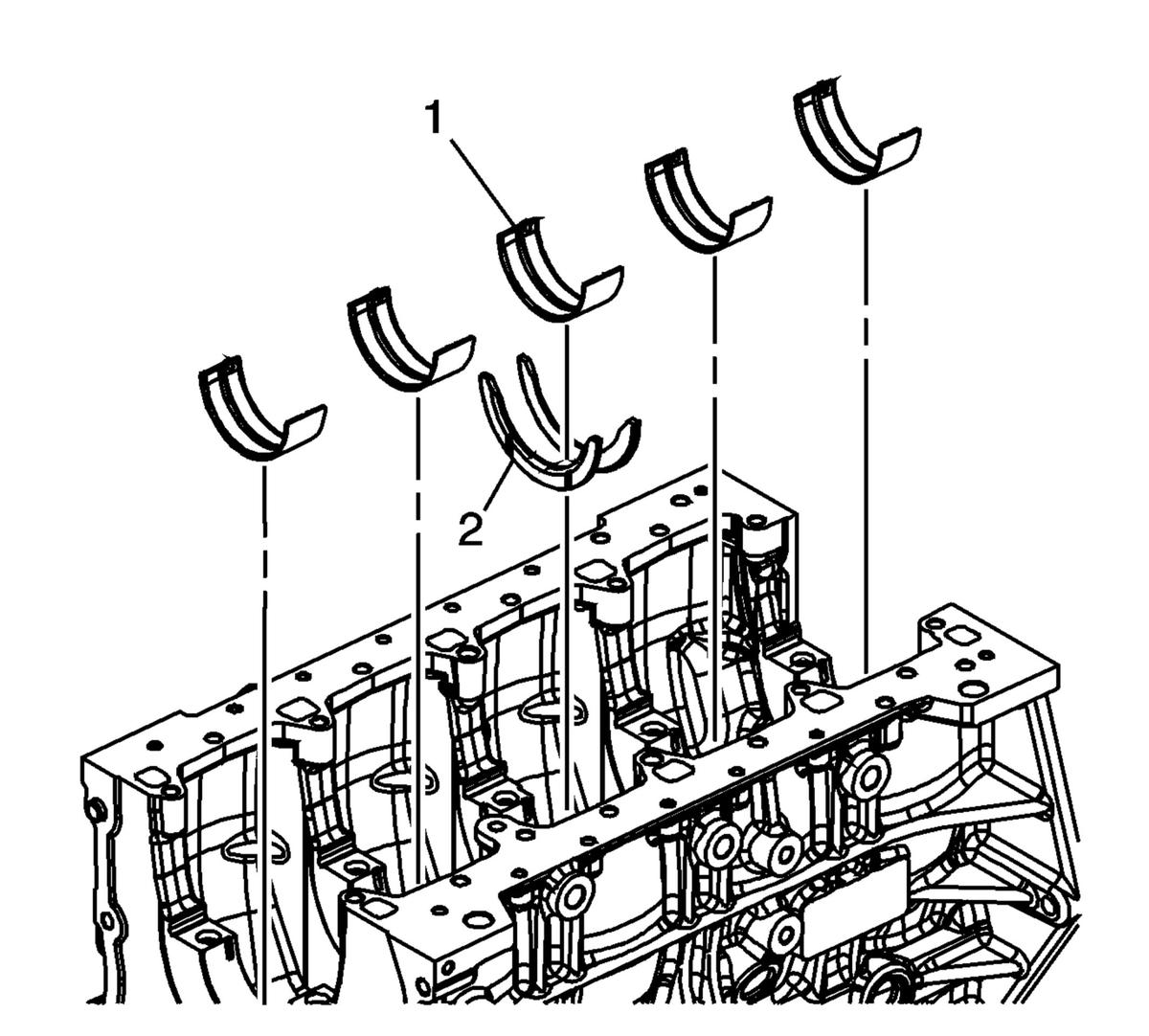

Remove the upper crankshaft bearings (1) and thrust bearings (2).
