Crankshaft Front Oil Seal Removal

WARNING: This page is about a different variant/trim than selected.

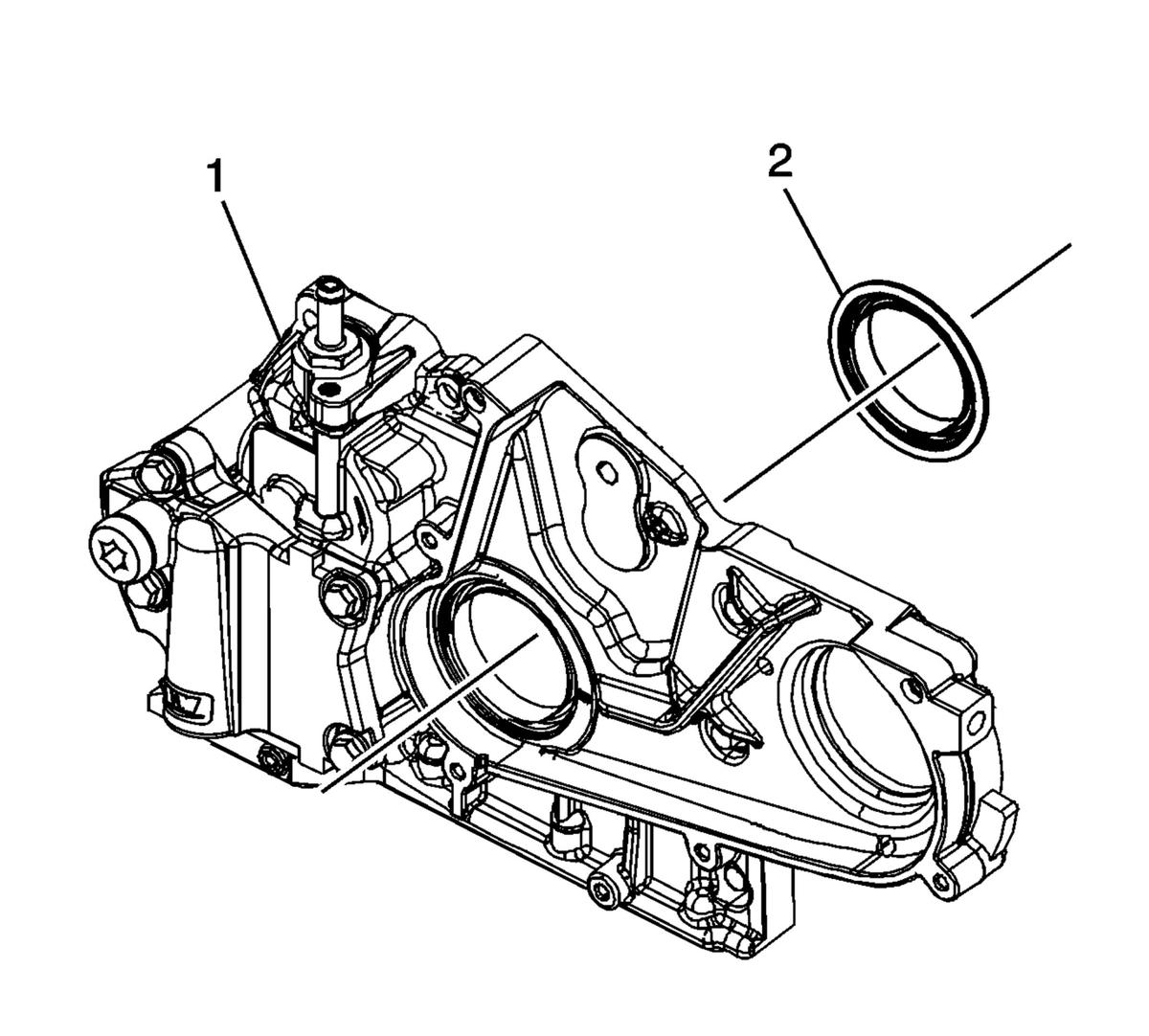

GM2243622Courtesy of GENERAL MOTORS COMPANY

Remove the crankshaft front oil seal (2) from the engine front cover (1).
