Evaporative Emission Canister Solenoid Replacement (Short Wheel Base)

WARNING: This page is about a different variant/trim than selected.

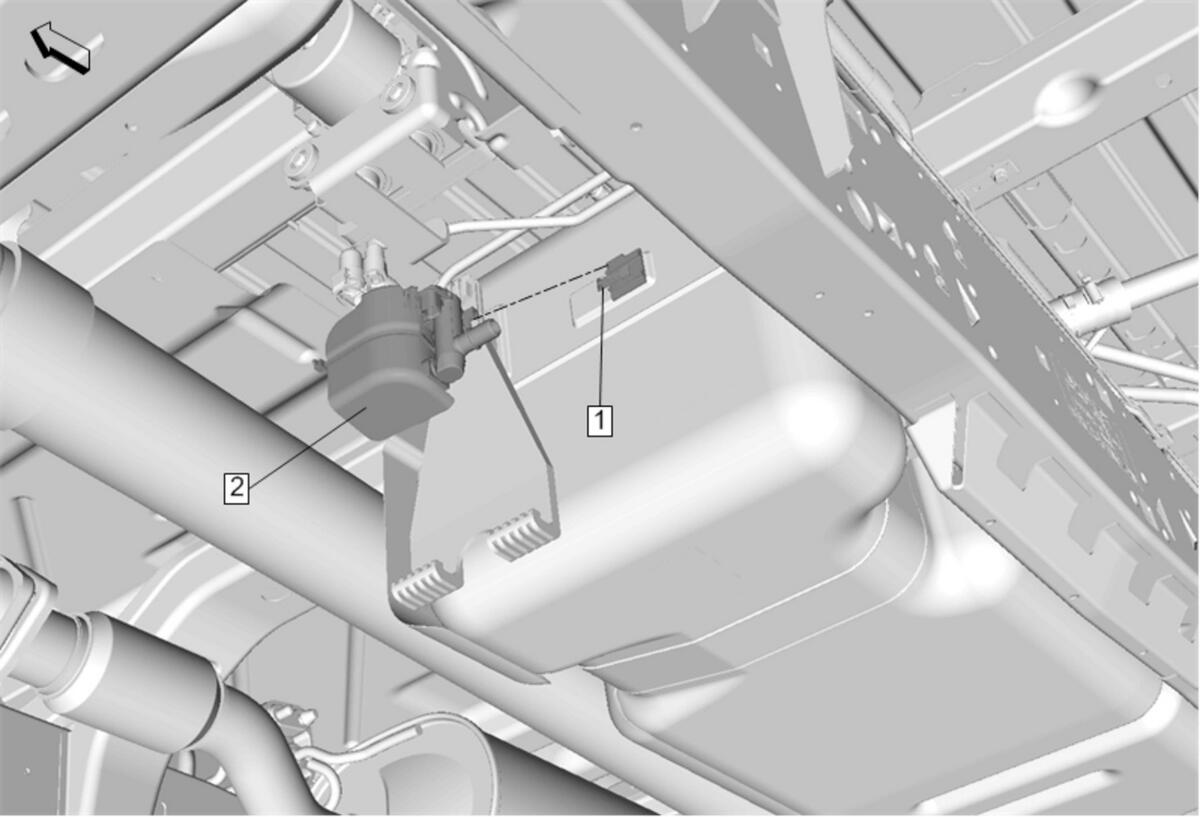

GM4848876Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

  1. Evaporative Emission Canister Vent Hose Replacement (Short Wheel Base) , or Evaporative Emission Canister Vent Hose Replacement (Long Wheel Base)
  2. Evaporative Emission Canister Replacement (Chassis Cab) , or Evaporative Emission Canister Replacement (Short Wheel Base) , or Evaporative Emission Canister Replacement (Long Wheel Base)
  3. Disconnect the electrical connector.
1 Retaining Tab
2 Evaporative Emission Canister Solenoid
