Evaporative Emission Canister Replacement (Chassis Cab)

WARNING: This page is about a different variant/trim than selected.

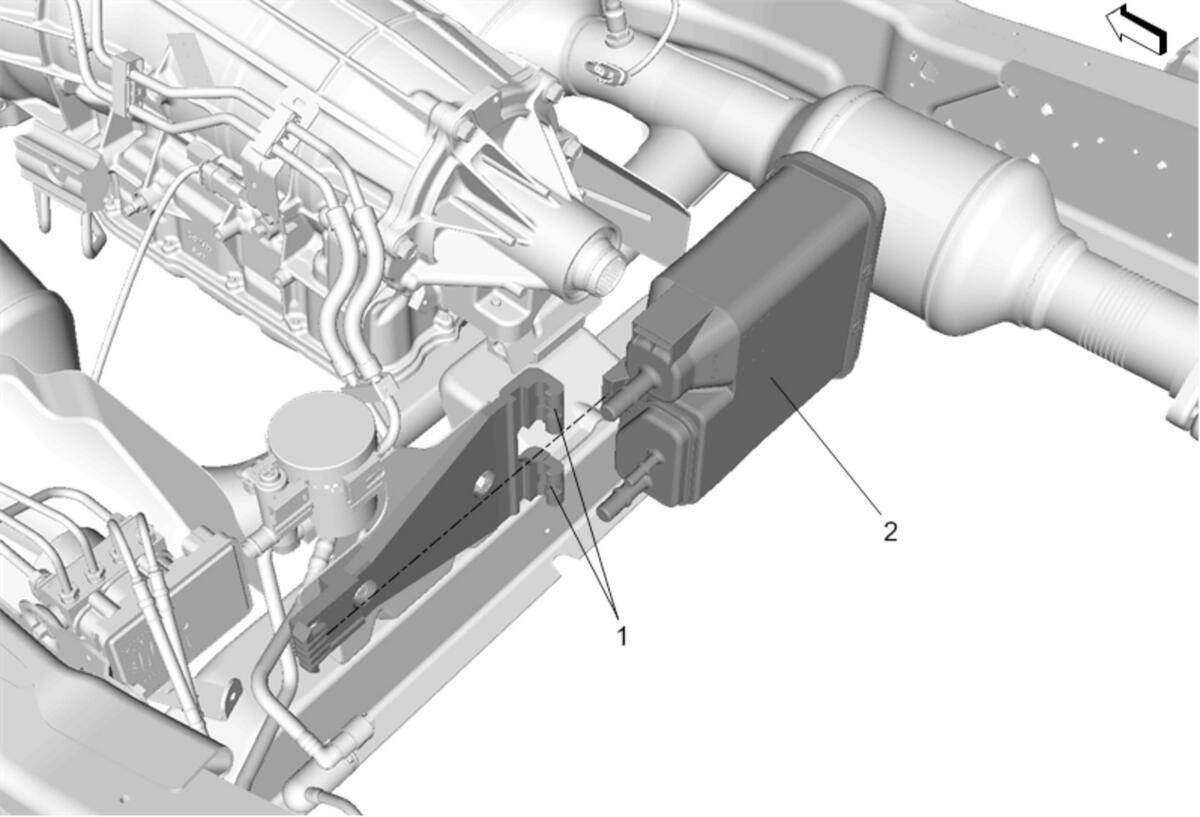

GM4848881

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

Evaporative Emission Canister Hose@Evaporative Emission Canister - Disconnect - Evaporative Emission Canister Hose Replacement (Chassis Cab)
Evaporative Emission Front Pipe@Evaporative Emission Canister - Disconnect - Plastic Collar Quick Connect Fitting Service
Evaporative Emission Pipe@Evaporative Emission Canister - Disconnect - Plastic Collar Quick Connect Fitting Service

1

Retaining Tab [2x]

2

Evaporative Emission Canister
