Section 10 (Engine Mechanical - 4.3L (LV1))
>>
Schematic Wiring Diagrams
>>
Engine Mechanical Wiring Schematics
>>
Engine Oil Level Switch and Pressure Control

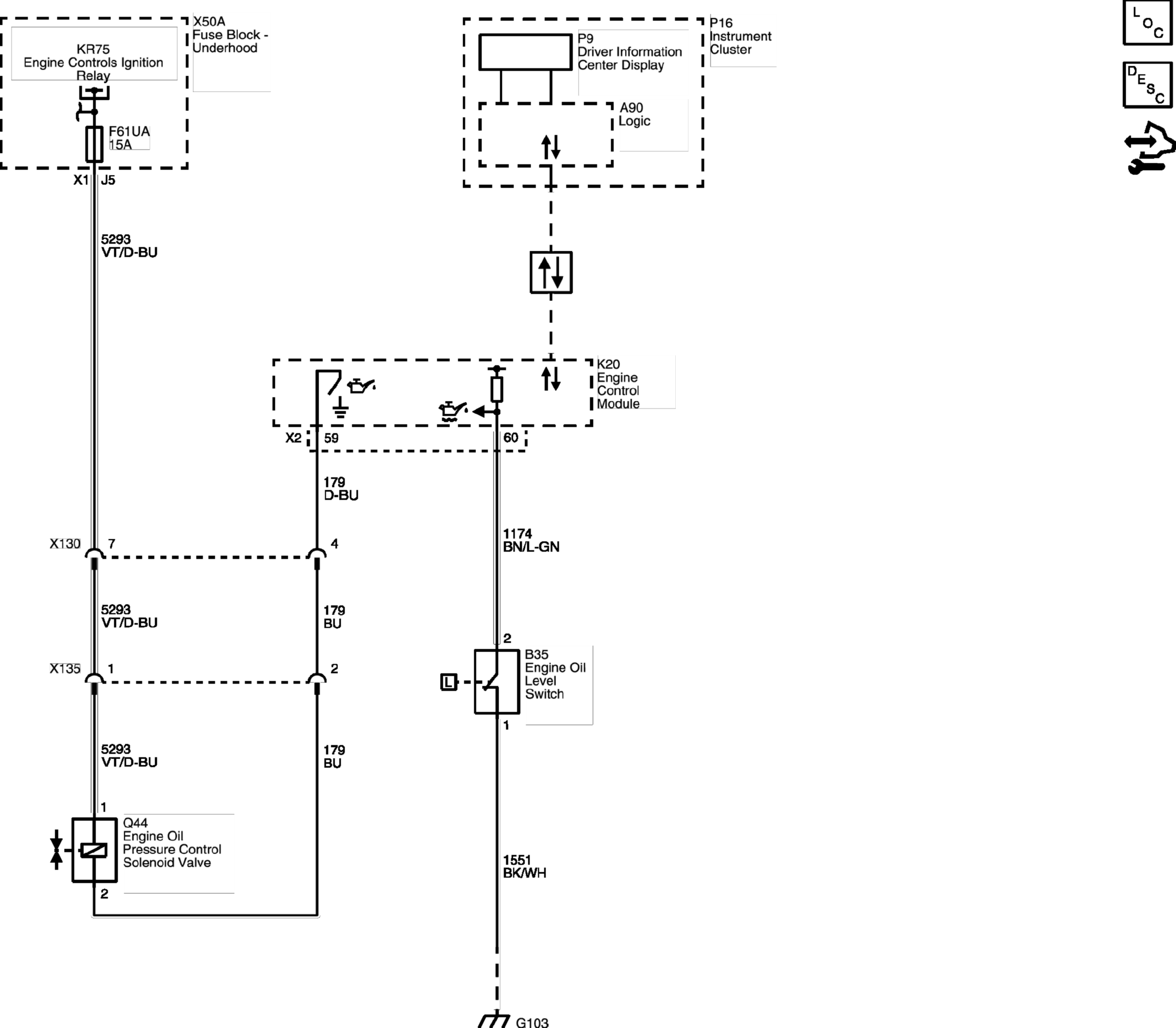

Engine Oil Level Switch and Pressure Control
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
