Valve Rocker Arm Cover Disassemble - Right Side
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

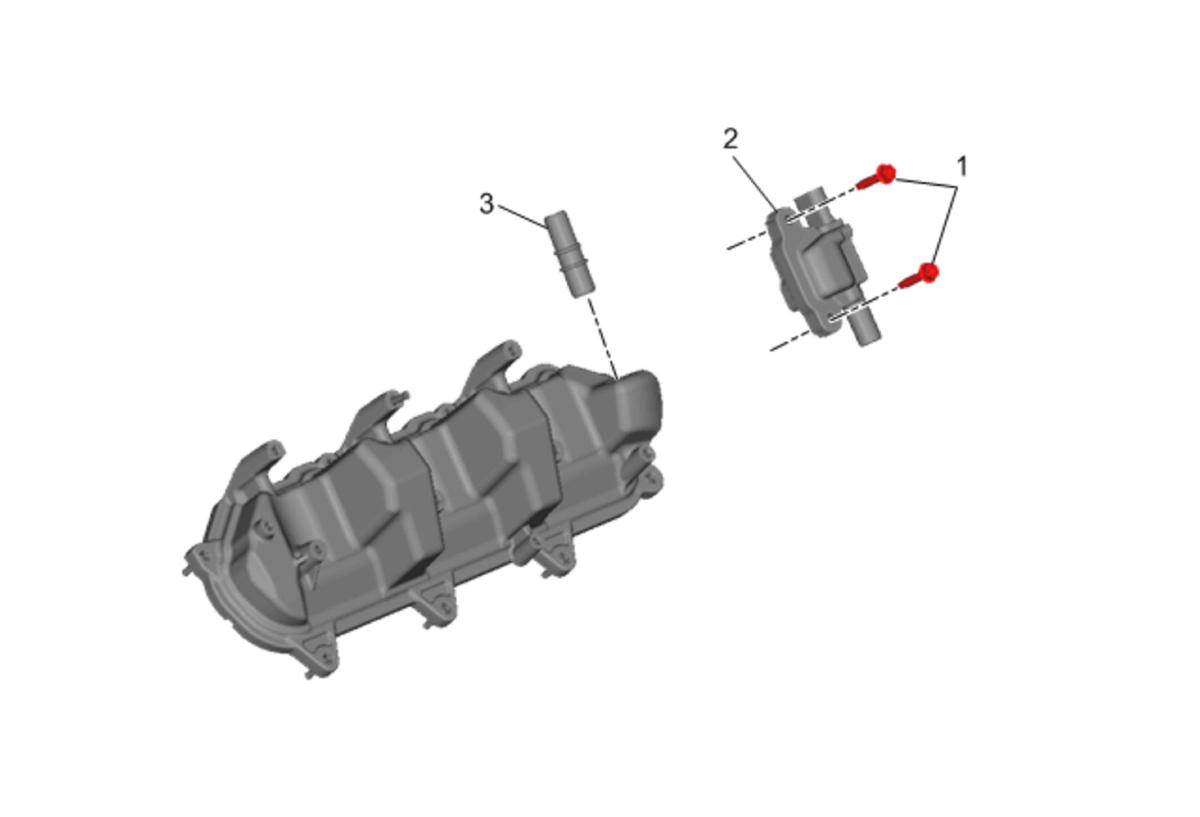

Valve Rocker Arm Cover Disassemble - Right Side
| Callout |
Component Name |
| 1 |
Ignition Coil Bolt |
| 2 |
Ignition Coil |
| 3 |
Positive Crankcase Ventilation Hose Fitting |
