Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Oil Pump - Remove - Oil Pump Replacement
Courtesy of GENERAL MOTORS COMPANY

Push down the balance shaft thrust plate torsion spring (1) and install EN-46330 tension pin (2).
Courtesy of GENERAL MOTORS COMPANY

Balance Shaft Driven Gear Bolt (1) - Loosen
Idler Shaft Sprocket Bolt (2) - Loosen
Courtesy of GENERAL MOTORS COMPANY

Balance Shaft Retainer Bolt (1) - Remove [2x]
Balancer Chain Adjust Guide (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Remove the balance shaft driven gear bolt (1) and the balance shaft driven sprocket (2).
Remove the balancer shaft chain (3).
Courtesy of GENERAL MOTORS COMPANY

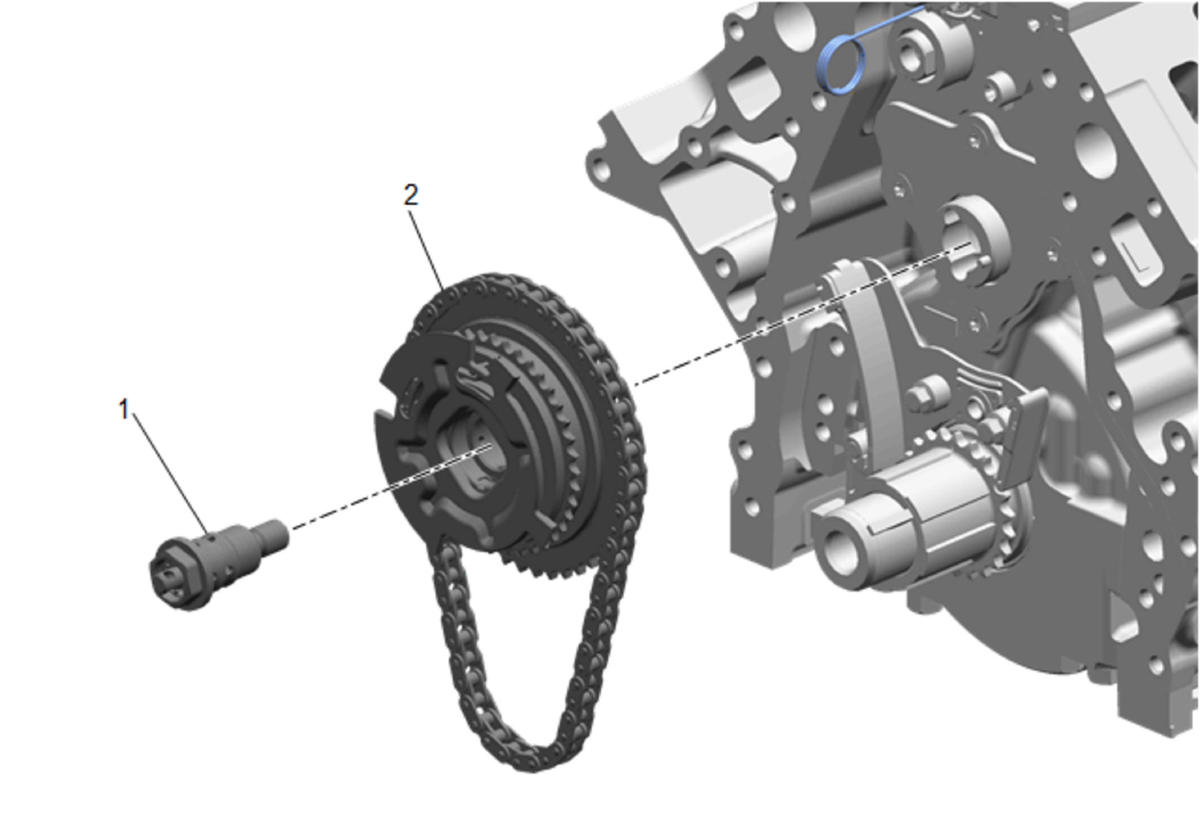

Remove the CMP actuator solenoid valve (1).

NOTE:

Never pull on the reluctor wheel when attempting to remove the actuator.

Separate the CMP actuator and timing chain (2) from the camshaft.
Courtesy of GENERAL MOTORS COMPANY

Insert a tie strap (1) through the center of the actuator and over the reluctor wheel.
Courtesy of GENERAL MOTORS COMPANY

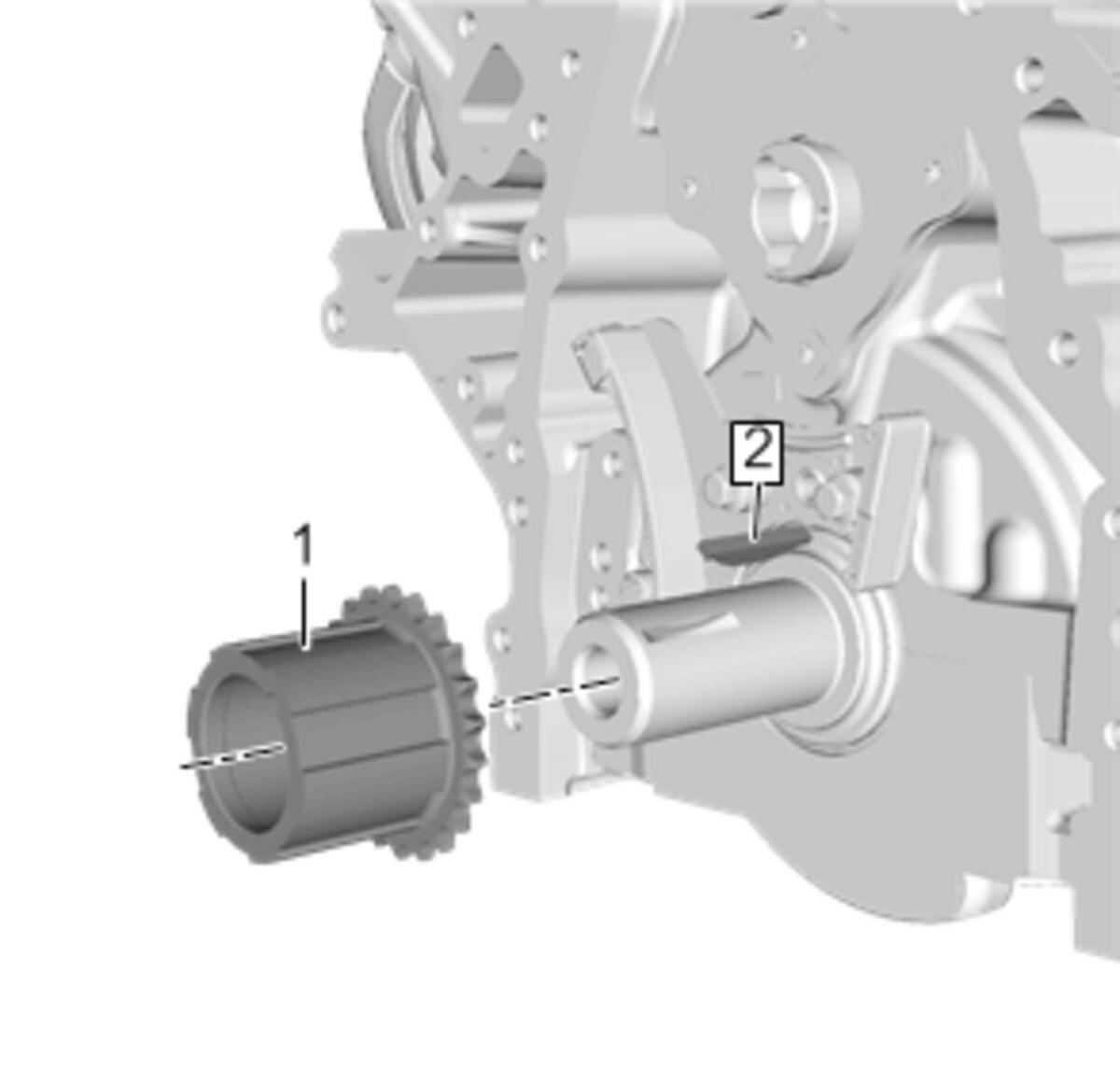

Remove the crankshaft sprocket (1), and key (2).
Courtesy of GENERAL MOTORS COMPANY

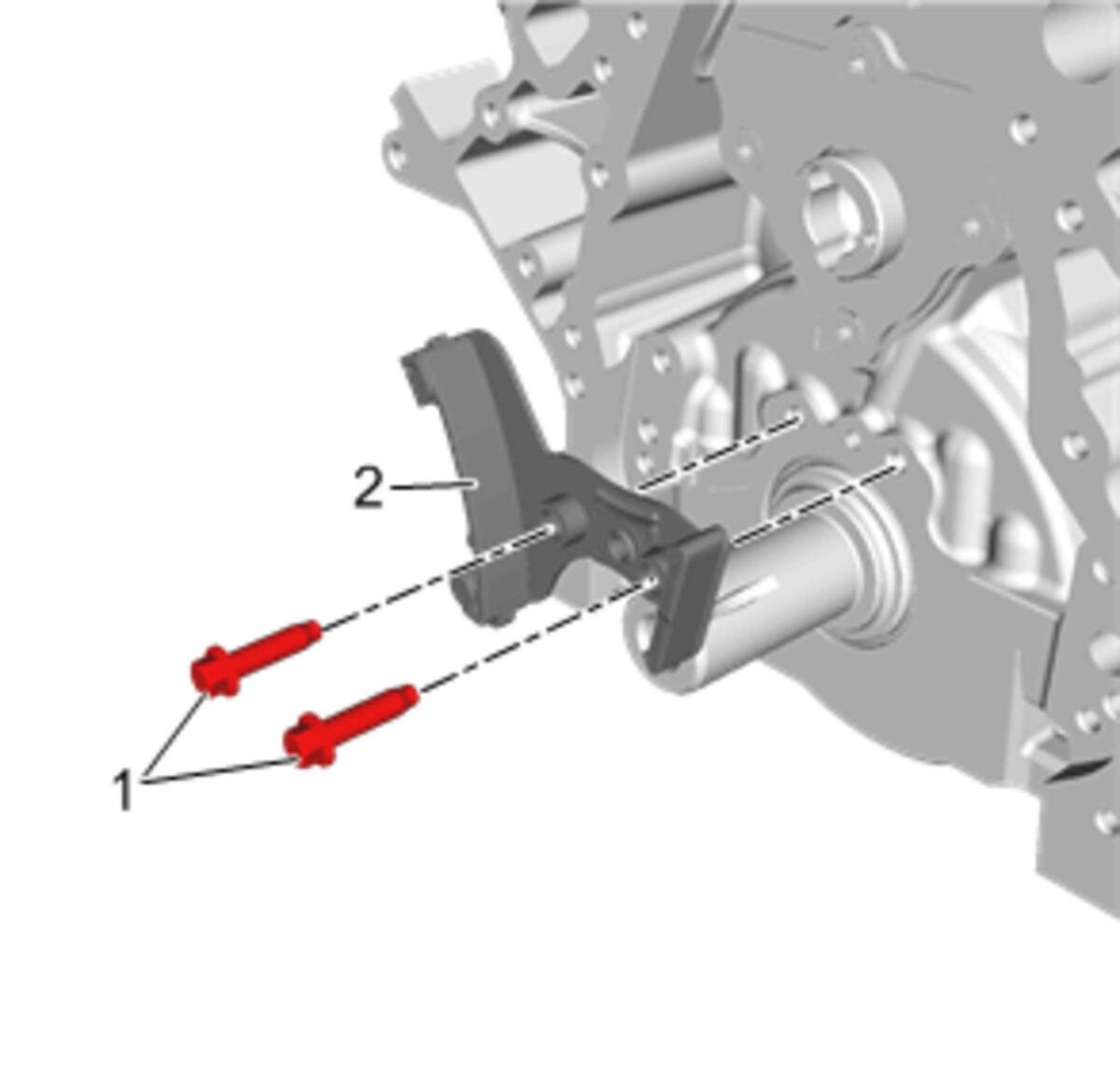

Timing Chain Tensioner Bolt (1) - Remove [2x]
Timing Chain Tensioner (2) - Remove
