Crankshaft Oil Deflector, Center Tube, High Pressure Port Seal, and Oil Level Indicator Switch Removal
WARNING: This page is about a different variant/trim than selected.

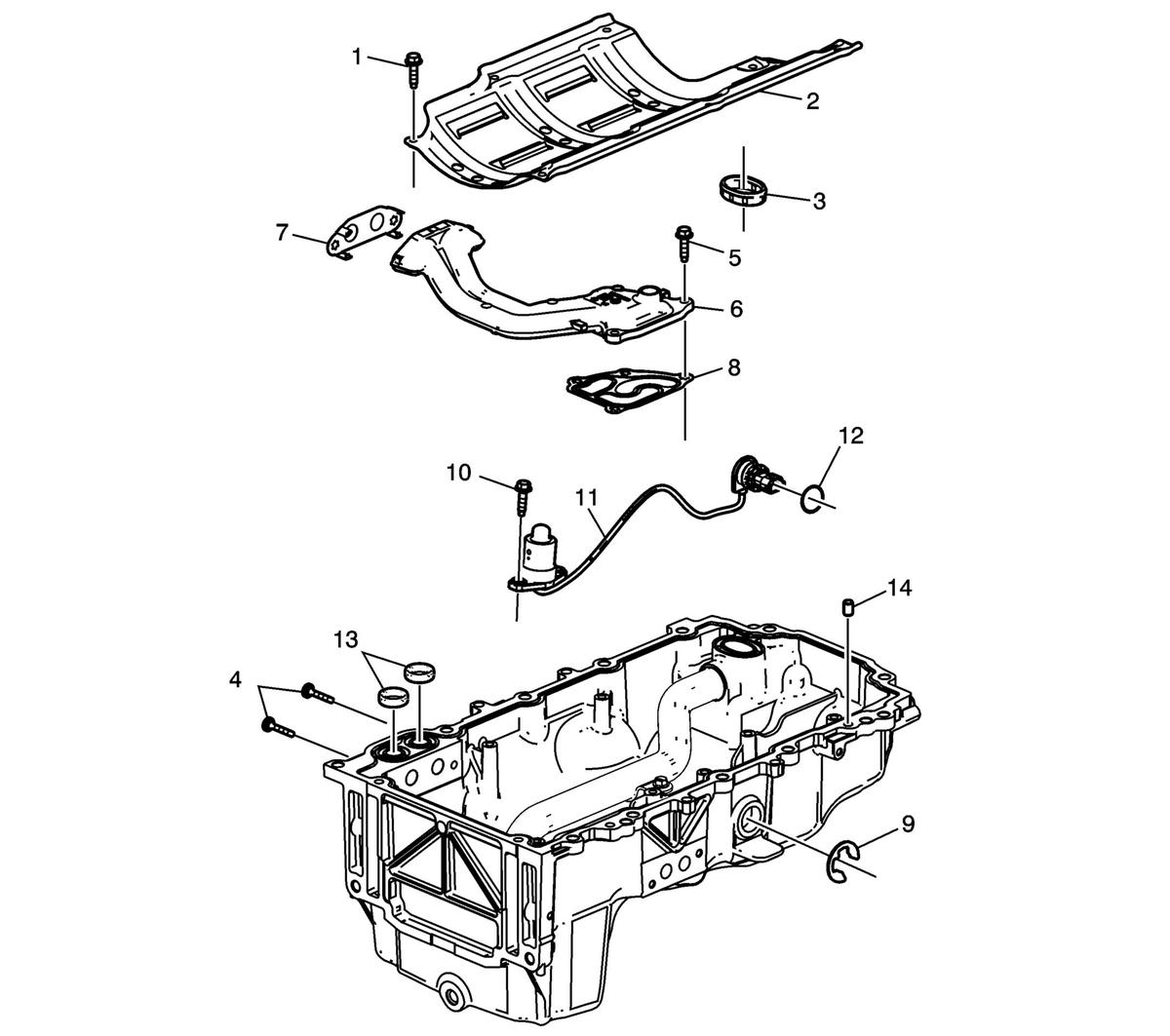

Fig 1: Crankshaft Oil Deflector, Center Tube, High Pressure Port Seal and Oil Level Indicator Switch
Crankshaft Oil Deflector, Center Tube, High Pressure Port Seal, and Oil Level Indicator Switch Removal
| Callout | Component Name |
|---|---|
| 1 | Crankshaft Oil Deflector Bolt |
| 2 | Crankshaft Oil Deflector |
| 3 | Oil Pan Front Seal
NOTE:
Discard seal, it is not reusable. |
| 4 | Oil Filter Center Tube Bolt - Outer |
| 5 | Oil Filter Center Tube Bolt - Inner |
| 6 | Oil Filter Center Tube Assembly |
| 7 | Oil Filter Center Tube Gasket
NOTE:
Discard gasket, it is not reusable. |
| 8 | Oil Filter Center Tube Gasket
NOTE:
Discard gasket, it is not reusable. |
| 9 | Oil Level Sensor Lead Clip |
| 10 | Oil Level Indicator Switch Bolt |
| 11 | Oil Level Indicator Switch |
| 12 | Oil Level Indicator Switch Seal
NOTE:
Discard seal, it is not reusable. |
| 13 | Oil Pan High Pressure Port Seal
NOTE:
Discard seal, it is not reusable. |
| 14 | Oil Pan Locating Pin |
